5ft Folding Aluminium Wheelchair Ramp with Flat Hinge, 300kg – 1520mm L x 720mm W x 68mm H
£312.00
Not sure which length you need?
Send us the step height and who will use it — we'll confirm the right ramp before you order.
Overview

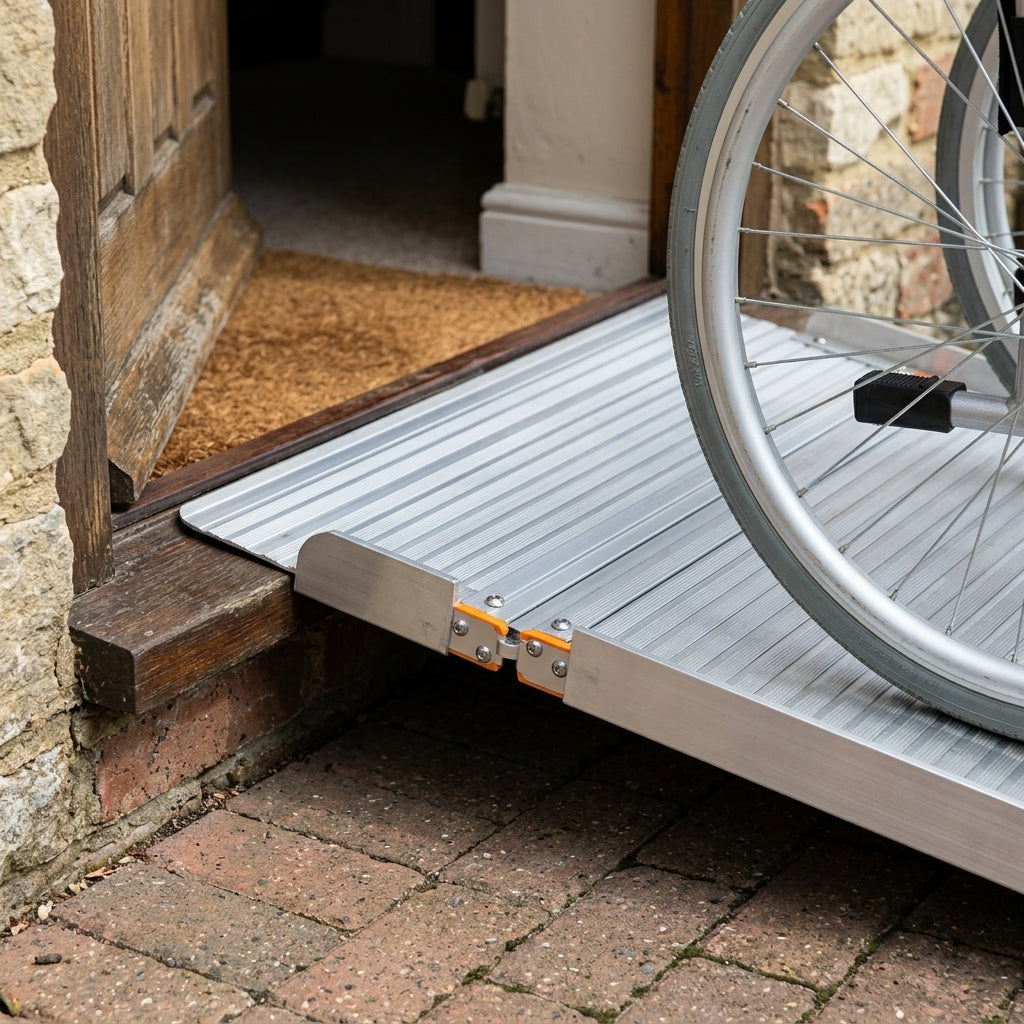

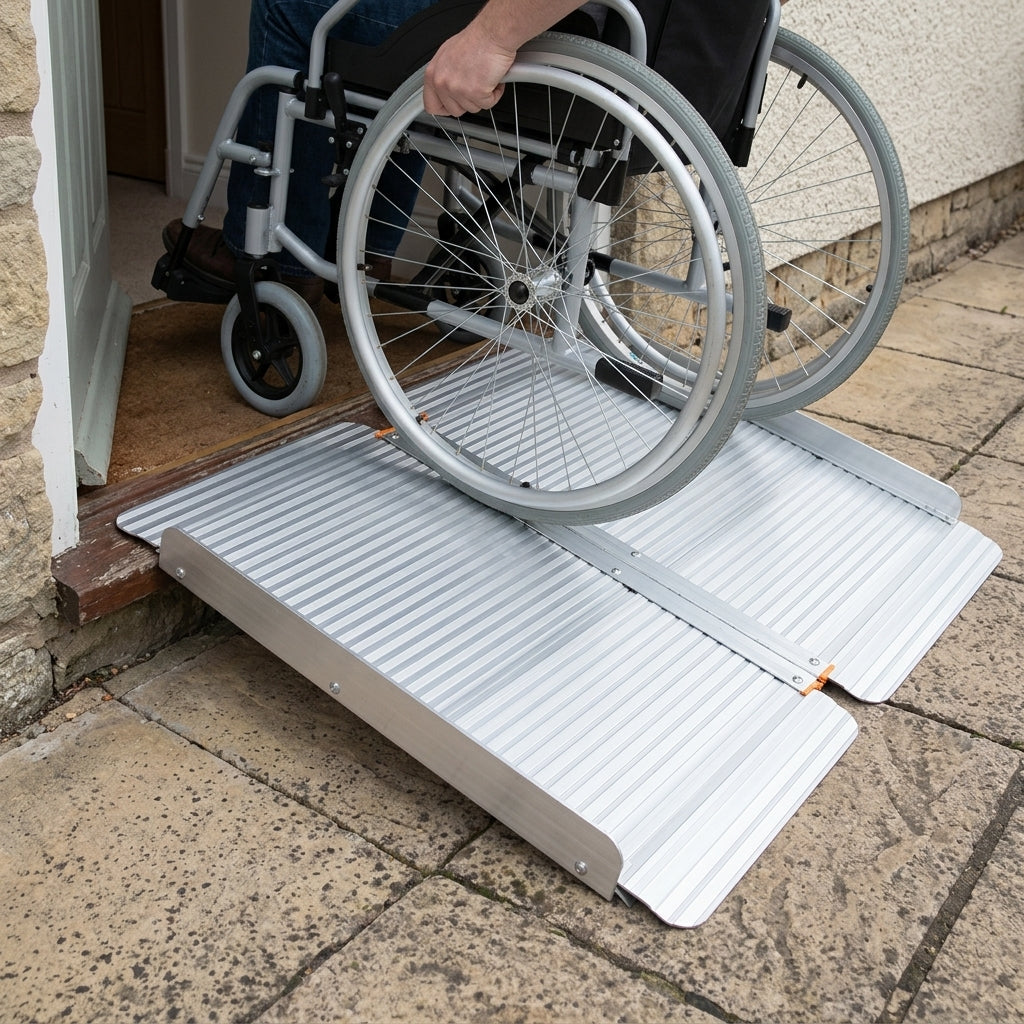

A lightweight 5ft folding aluminium “suitcase” wheelchair ramp with the improved flat hinge. It folds for easy storage and transport and simply rests on the step or threshold, giving 300kg capacity for loads up to 250mm high.
Specifications
| Size | 1520mm L x 720mm W x 68mm H |
|---|---|
| Height (mm) | 68 |
| Internal Width (mm) | 715 |
| Length (mm) | 1520 |
| Stored Dimensions (mm) | 1520 x 375 x 70 |
| Total Width (mm) | 720 |
| Capacity (kg) | 300 |
| Max Load Height (mm) | 250 |
| Surface | Aluminium |
| Weight (kg) | 11.2 |
| One Year Warranty | Yes |
| Easy to Fit | Yes |
| Electric Wheelchair | Yes |
| Manual Wheelchair | Yes |
| Mobility Scooter Friendly | Yes |
| Colour Options | Black |
Features
- Flat hinge folding design for easy storage and transport; folded size 1520 x 375 x 70mm.
- Rest-on connection: just rest it in place and start loading.
- 30mm high edges on each side help prevent accidentally wheeling off.
- Lightweight for easy handling at 11.2kg.
- 300kg capacity.
- 1520mm (5ft) long, 715mm internal width and 720mm total width; 68mm high.
- Maximum load height 250mm.
- Aluminium surface.
- Easy to fit.
Use & Gradient
- Maximum gradient 1 in 6, although 1 in 8 is recommended.
- Suitable for manual wheelchairs, electric wheelchairs and mobility scooters.
- These ramps are only suitable for use as mobility aids.
- Complies with health & safety guidelines.
- Not suitable for flight cases.
- One-year warranty.
Ramp length checker
Measure from the ground to the top of the step or threshold.
