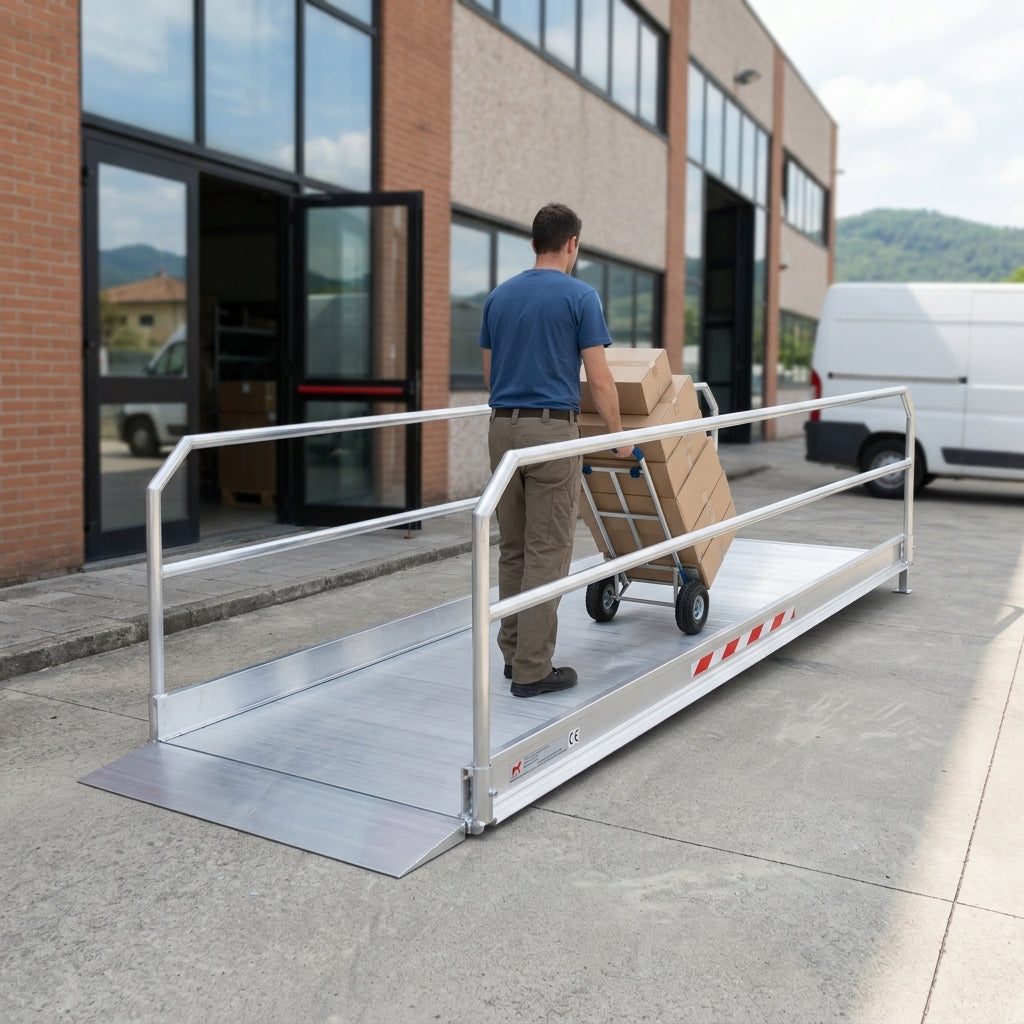

Vehicle Gangway with Handrails – 6055mm L x 1000mm W, 998kg Capacity, Non-Slip

A temporary, portable vehicle gangway with handrails and a non-slip surface, 6055mm long with a 1000mm internal width (1120mm total/external width) and a 998kg capacity. It gives vehicles and pedestrians a safe way over trenches, dips and similar small height differences. Suitable only for use at a gradient of up to 5%.

• Rest-on connection: simply put the gangway in place and start using it. Its own weight also helps keep it in position.
• Foldable edges make it smaller for transport.
• 200mm high footstops.
• Ergonomic handrails 1018mm high, which can be folded for transport.
• Non-slip surface for vehicles and people on foot.
• Customisable, easy to fit, European made and can be left outside.
• Finished in black. Two-year warranty.

• Length: 6055mm
• Internal width: 1000mm
• Total width: 1120mm
• Weight: 157kg
• Capacity: 998kg
• Rubber-tyred vehicles (900mm vehicle width): 945kg
• Tracked vehicles (750mm vehicle width): 998kg

• Never exceed a gradient of 5%.
• Leave a minimum rest of 330mm on both sides of the gangway so it sits securely.
• Minimum rubber footprint of 200mm x 200mm.
• Vehicle load should be spread between 40% and 60% across the axles.
• For safety, use the gangway with the handrails in place; fold them only for transport.

• Gangways are wide ramps that let vehicles cross trenches, for example during excavation works, and only overcome small height differences.
• To load at a gradient above 5%, vehicle ramps rated for up to 8% are a better fit; for greater heights, a pair of plant ramps may suit, as they can be used at a steeper gradient and are made for loading vehicles into vans and trailers.
