Adjustable Telescopic Wheelchair Channel Ramps, Pair – 6ft to 12ft L, 275kg
£288.00
incl. VAT · per pair
Not sure which length you need?
Send us the step height and who will use it — we'll confirm the right ramp before you order.
Overview

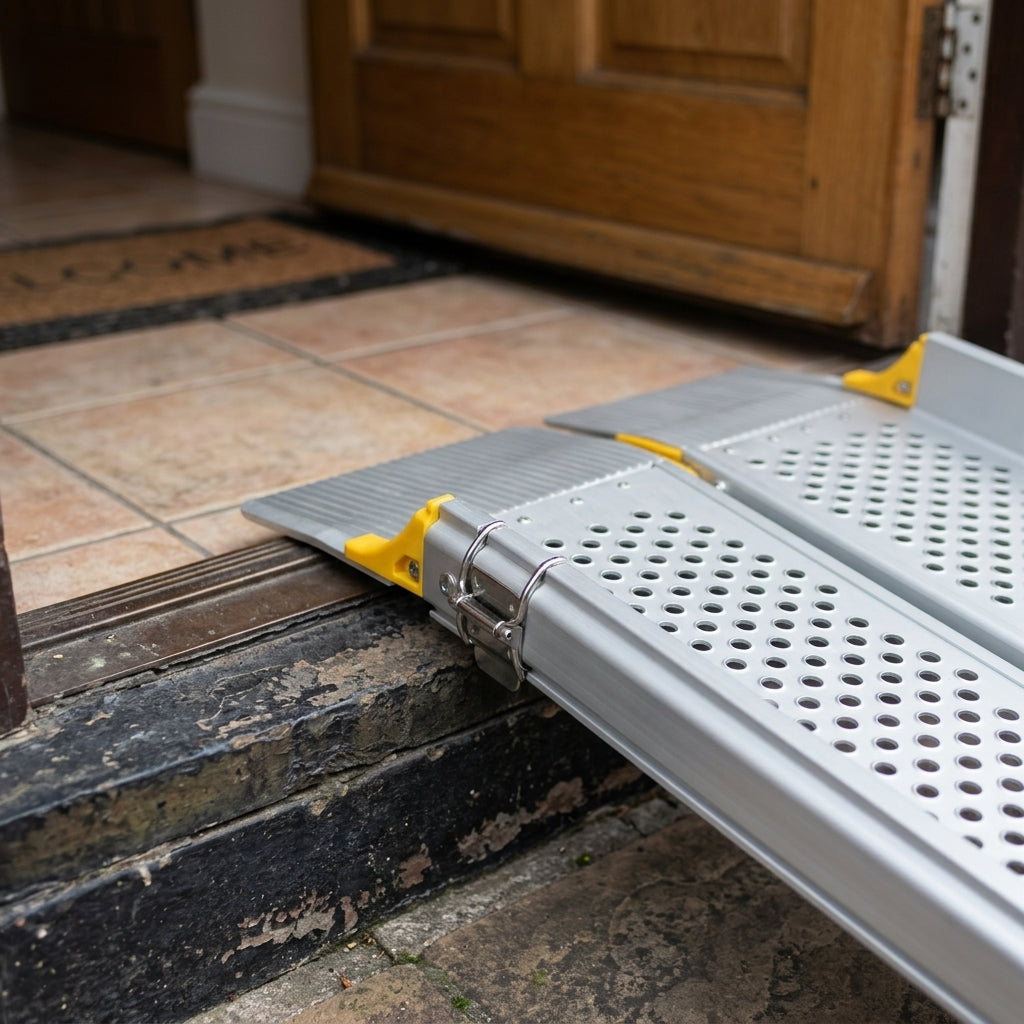

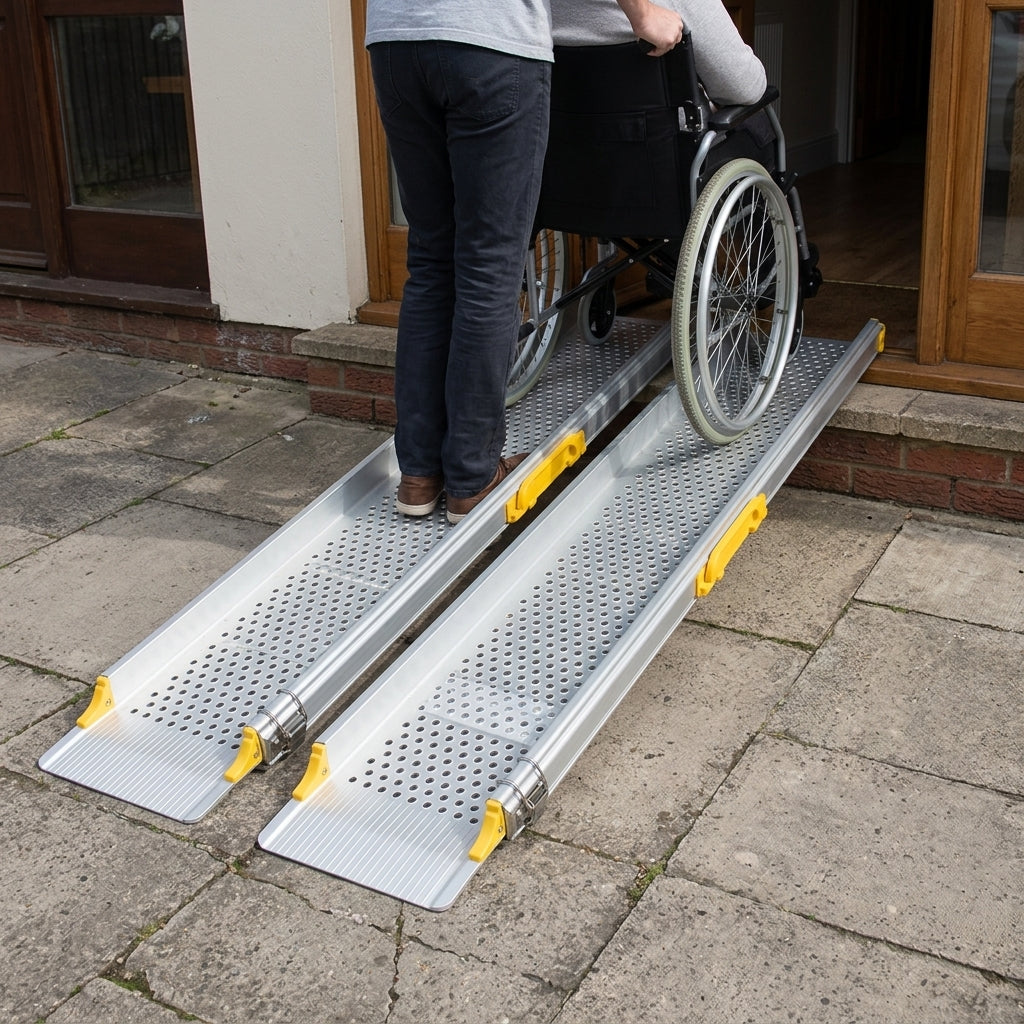

A pair of lightweight aluminium telescopic channel ramps for manual wheelchairs, helping users get over steps, kerbs and doorways at home or in commercial settings. Available in 6ft, 7ft, 8ft, 10ft and 12ft lengths, each ramp is only 210mm wide, ideal for narrow doorways, and the pair stores compactly in a car boot.
Specifications
| Length Options | 6ft (1830mm) L x 210mm W |
|---|---|
| Internal Width (mm) | 162 |
| Length (ft) | 6 - 12 |
| Length (mm) | 1830 - 3650 |
| Width (mm) | 210 |
| Capacity (kg) | 275 |
| Max Load Height (mm) | 600 |
| Weight (kg) | 6 - 11.5 |
| One Year Warranty | Yes |
| Easy to Fit | Yes |
| Manual Wheelchair | Yes |
| Not Mobility Scooter Friendly | Yes |
Features
- The 6ft–10ft ramps can be clipped to shorter lengths when space is limited or for use in different places; the 12ft ramp can only be used at 12ft.
- Maximum gradient 1 in 6, although 1 in 8 is recommended.
- 5cm high safety edges on both sides stop wheels rolling off accidentally.
- Durable, high-traction non-slip surface.
- Rest-on connection with a rubber grip coating, plus a curved end and foot, keeps the ramps secure on the step during use.
- Quick to set up: slide the ramps out, rest them on the step, doorway or kerb, line up the wheelchair wheels and go.
- Suitable for self-propelled and assisted wheelchair users. 275kg capacity.
Build & Portability
- Made from aluminium; each ramp weighs between 6kg and 11.5kg depending on length.
- Each ramp has a built-in carry handle and clips securely shut for storage at home or in the car.
- Easy to fit. One-year warranty.
Good to Know
- Only for manual wheelchairs and only for use as mobility aids. They are generally not suitable for electric wheelchairs or mobility scooters, which often have low clearance; the safety edges can catch. If you do plan to use one, check that its clearance is more than 4"/100mm.
- Channel ramps are lighter and more compact than a single wide ramp, but the person pushing needs to watch their footing more carefully.
- Pictures are for illustration only; the actual product may vary due to product improvements.
Ramp length checker
Measure from the ground to the top of the step or threshold.
