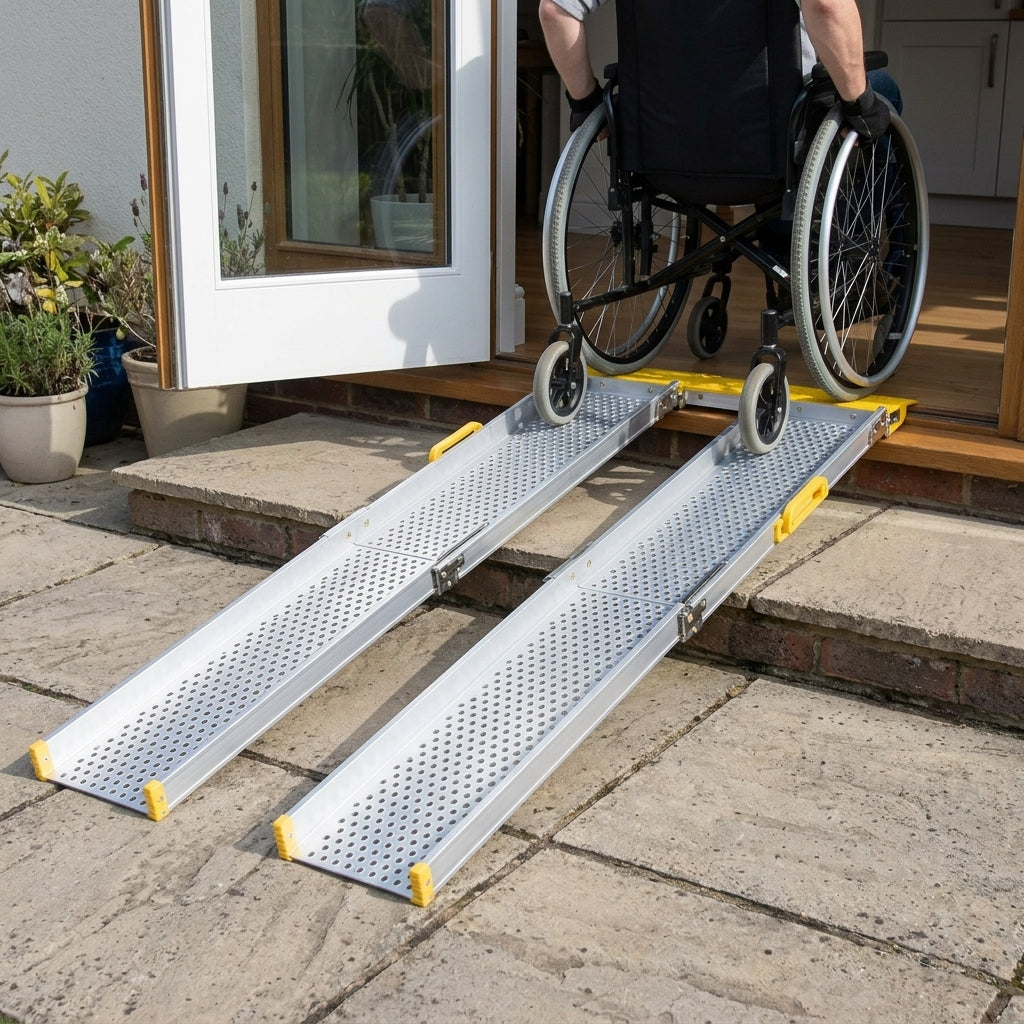

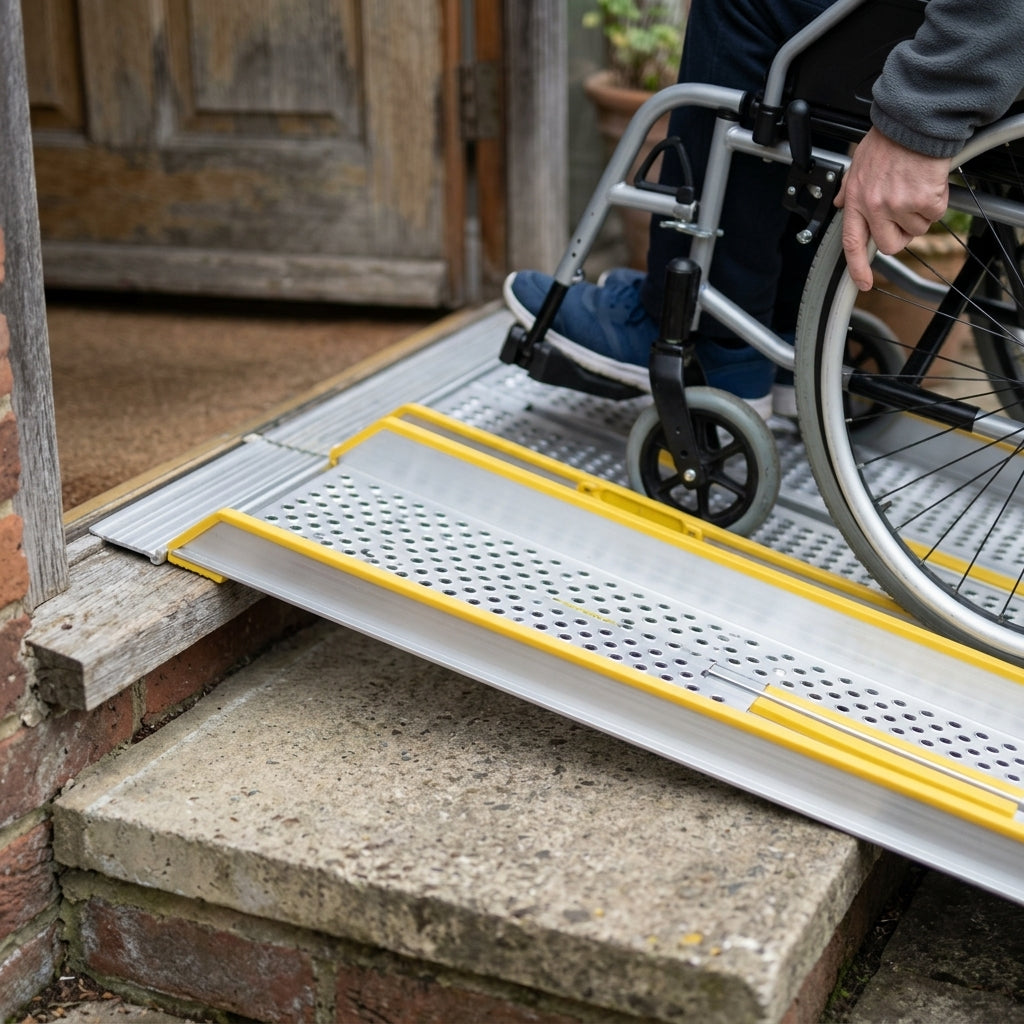

Folding Telescopic Wheelchair Channel & Bridge Ramps – 7ft to 10ft L, 210mm W, 275kg

A pair of lightweight folding and telescopic channel ramps with almost unlimited adjustability. Rest them on a step as standard channel ramps, or use the hinge to bridge thresholds and doorways – including uPVC doorways – where the level is different on each side. Their narrow design suits tight doorways where space is limited, and they fold down very compactly for storage.

• 275kg capacity.
• Quick to set up: unfold, slide out and rest on the step or threshold – the rest-on connection means you can start loading straight away.
• Clip them to use the ramps at shorter lengths where needed.
• Lightweight, aerospace-style design, telescopic and folding for compact storage.
• Durable, high-traction anti-slip surface.
• 45mm high safety edges on each side to prevent accidentally wheeling off.
• Angled foot and curved rest-on connection for a smooth transition on and off the ramp.
• Each ramp has a highly visible built-in yellow carry handle and clips shut for safe storage and transport – ideal for a car boot.
• One-year warranty.

• The longer main ramp caters for the higher (usually outdoor) side of the doorway:
• 7ft: main ramp 1300mm (4.2ft), threshold ramp 800mm (2.6ft).
• 8ft: main ramp 1500mm (4.9ft), threshold ramp 900mm (3ft).
• 10ft: main ramp 1900mm (6.2ft), threshold ramp 1100mm (3.6ft).
• Each channel is 210mm wide; overall length 2133mm – 3048mm.
• Maximum load height 355mm – 505mm.
• Weight 13kg – 19kg per pair (6.5kg – 9.5kg per ramp).

• Only suitable for manual wheelchairs.
• Not generally suitable for electric wheelchairs or mobility scooters, as the safety edges can catch on low-clearance vehicles; if you want to try, check your ground clearance is more than 100mm (4").
• Maximum gradient 1 in 6, though 1 in 8 is recommended.
• Channel ramps are much lighter and more compact than a single wide ramp and perfect for narrow doorways, but pushing a wheelchair up them takes more care with footing.
• For other lengths, see our combination channel ramps.
• Not suitable to be kept outside.
• Product images are for illustration only; the actual item may vary slightly as the design is improved.
