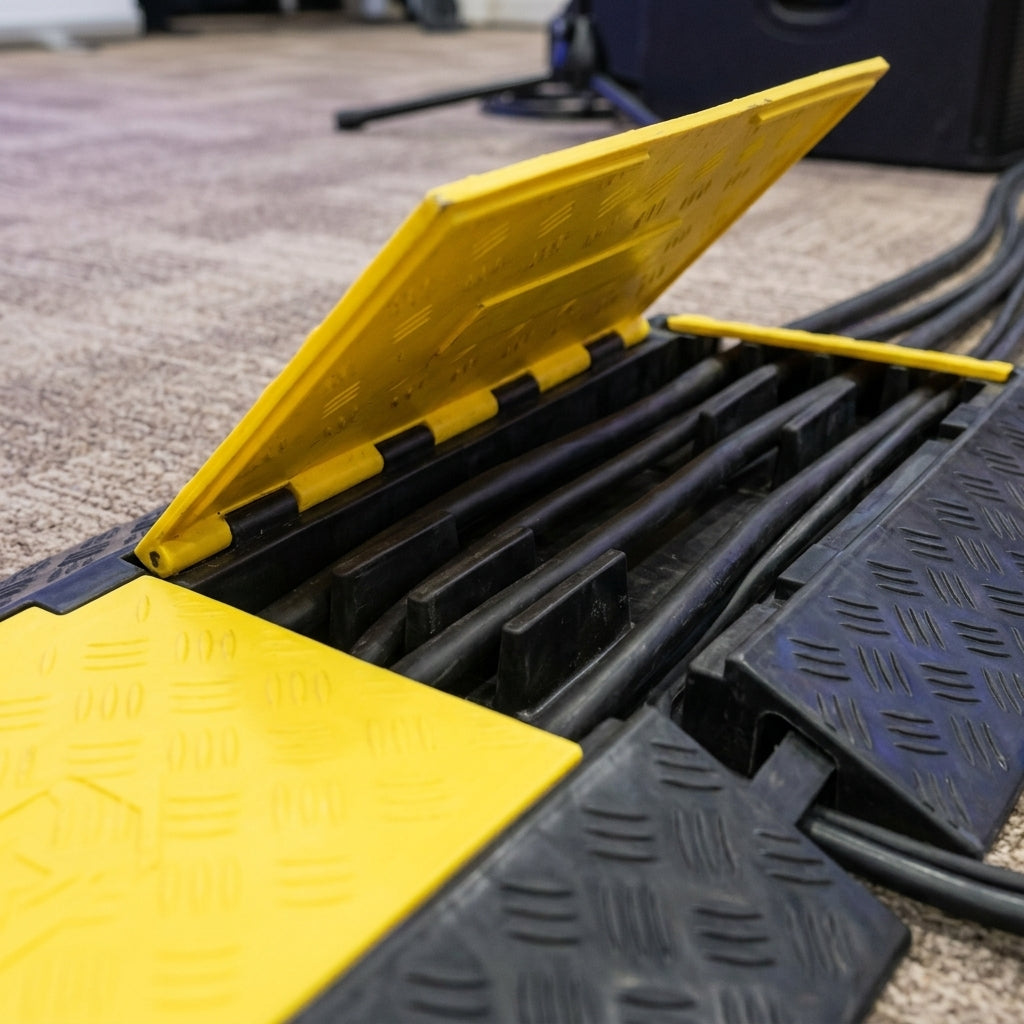

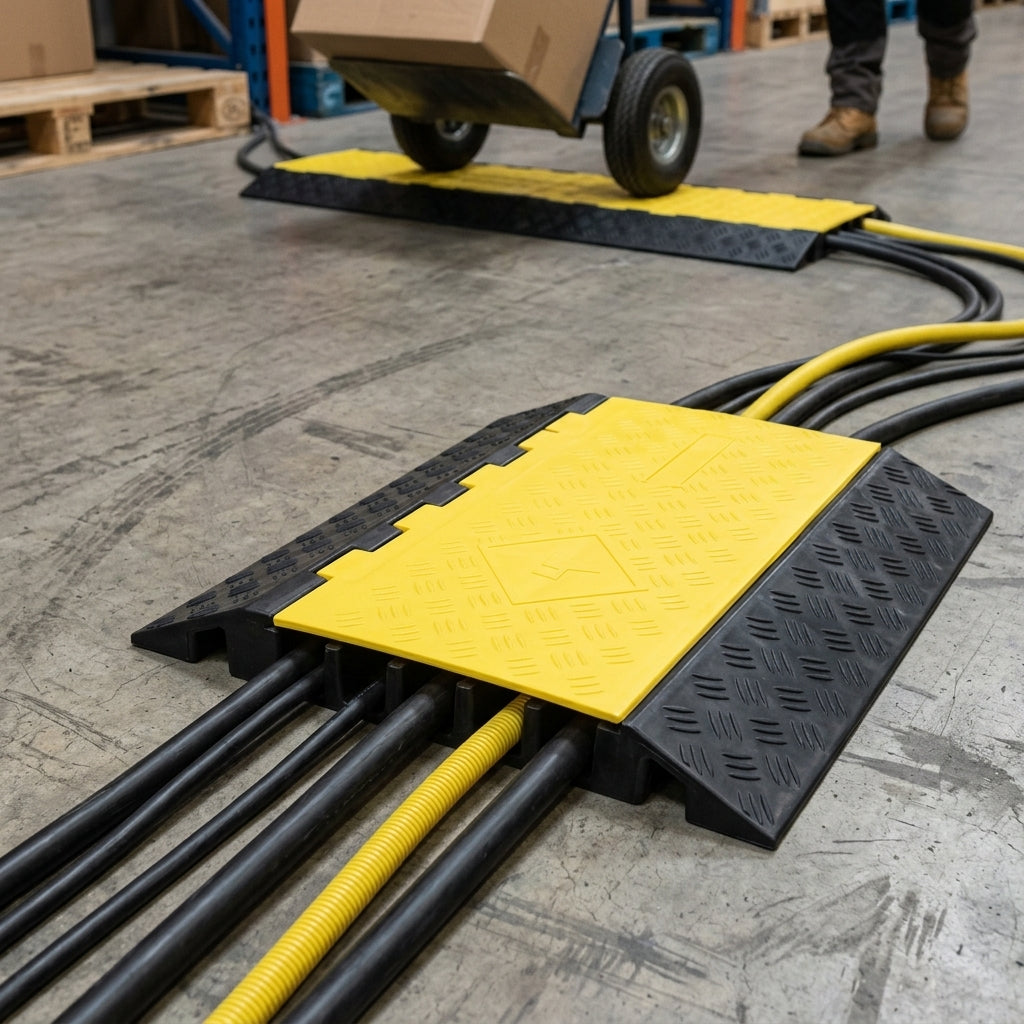

Heavy Duty 5-Channel Cable Protector, Black & Yellow – 900mm L x 500mm W x 50mm H, 12000kg Per Axle
£140.40
Not sure which size you need?
Send us your cable or hose diameters and traffic type — we'll confirm the right protector before you order.
Overview
A straight, heavy-duty 5-channel cable protector for indoor and outdoor use, built to take both vehicle and pedestrian traffic. Each section measures 900mm L x 500mm W x 50mm H and is rated to 12,000kg per axle, finished in contrasting black and yellow for high visibility.
Specifications
| Size | 900mm L x 500mm W x 50mm H |
|---|---|
| Height (mm) | 50 |
| Internal Width (mm) | Maximum cable/hose diameter 31.1mm |
| Length (mm) | 900 |
| Width (mm) | 500 |
| Channel Width (mm) | 31.1 |
| Channel Size (mm) | 31 x 44 |
| Channel Height (mm) | 44 |
| Capacity (kg) | 20000 |
| Weight (kg) | 8.6 |
| One Year Warranty | Yes |
| Bulk Prices Available | Yes |
| Easy to Fit | Yes |
| High Visability | Yes |
| Leave Outside | Yes |
| Cable Protector Color | Black/Yellow |
| Max Cable/ Hose Diameter (mm) | 31,1 |
| No. Channels | 5 |
| Capacity per Axle (kg) | 12000 |
| Capacity per Tyre (kg) | 6000 |
| Operating Temperature (deg. F) | -40 °F up to 131 °F |
| Durometer A | A93 |
| Elongation At Break | 500% |
| Tensile Strength | 12 MPa |
| Speedlimit (mph) | 5 |
| Colour Options | Black |
Features
- Five channels, each 31mm W x 44mm H, taking cables or hoses up to 31.1mm in diameter.
- Dog-bone connectors let you lock sections together easily to cover longer runs.
- Weighs 8.6kg per section.
- Can be left outside, with an operating range of -40°F to 131°F.
- Material data: A93 Shore A hardness, 500% elongation at break and 12 MPa tensile strength.
- Easy to lay in place. Bulk prices available.
- One-year warranty.
Safe Use
- Cross at no more than 5mph, and keep the weight to 6,000kg per tyre or less.
- When choosing a cable protector, go for the lowest height that fits your cables, so the greatest number of vehicles have enough clearance.
- Speed bump signs are recommended to slow traffic and warn road users that the cable protectors are there.
- Where wheelchairs need to cross, add the matching 5-channel cable protector ramp for wheelchairs, which is compatible with this protector.
