Aluminium Loading Ramps (Pair) – 4000mm L x 480mm W, 4155kg Capacity

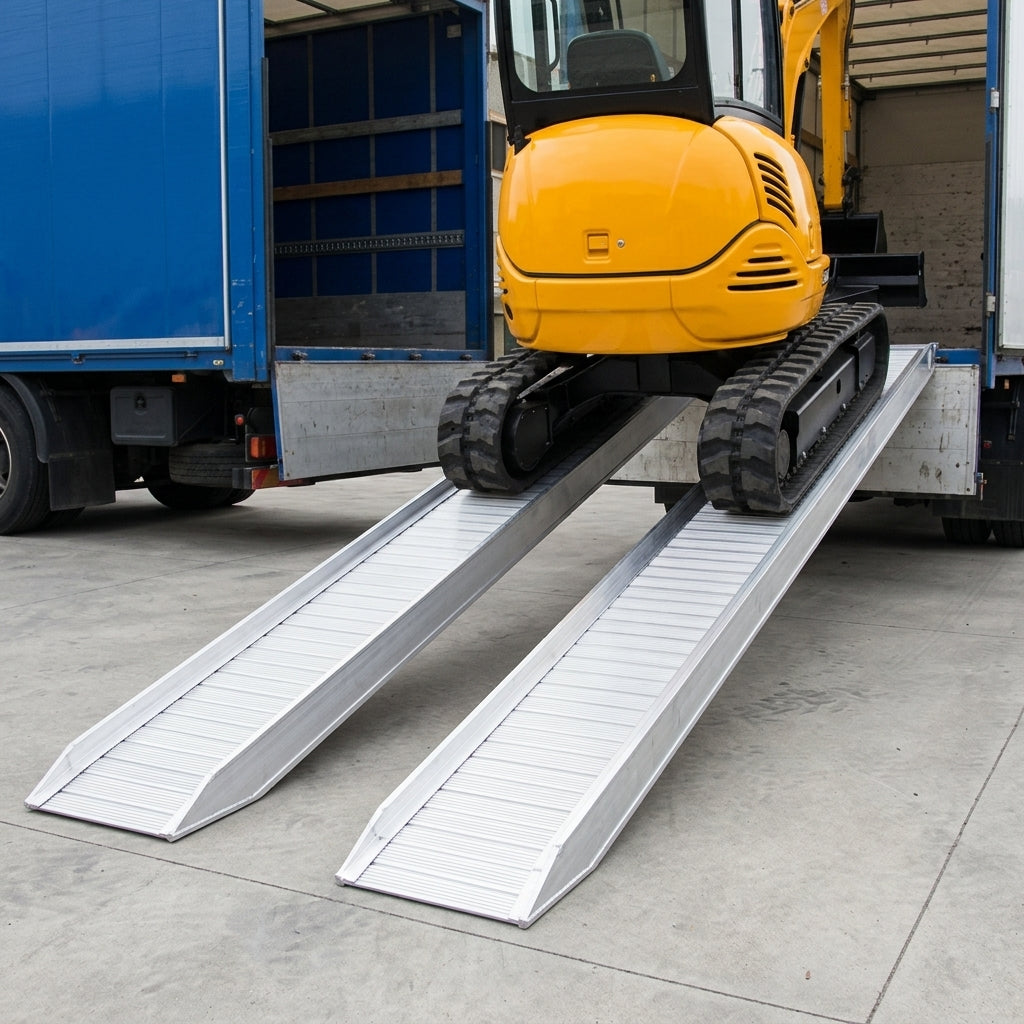

A best-selling medium to heavy duty plant ramp in a wider format, supplied as a pair of aluminium loading ramps for plant machinery, diggers and telehandlers. Each ramp is 4000mm long and 480mm wide with a 140mm profile thickness, and the pair is rated to a maximum of 4,155kg. The price and the stated capacity are both for the pair.

• Supplied without edges as standard; a version with edges is also available.
• Custom load heights and custom-built sizes are available, with quotes for bespoke ramps on request.
• Fully TÜV certified.
• European made and easy to fit.
• Two-year warranty.

• Size per ramp: 4000mm L x 480mm W x 140mm profile thickness.
• Track/wheel width: minimum 200mm, maximum 380mm.
• Capacity by wheelbase (pair): 2,770kg at a 1000mm wheelbase, 3,325kg at a 1500mm wheelbase, 4,155kg at a 2000mm wheelbase.
• Weight: 43kg per ramp (86kg per pair).

• Load height range: 1050mm to 1200mm (measured vertically from the ground to the point where the ramp rests on the vehicle).
• Not designed for use at gradients steeper than 30%.
• To check suitability, measure your load height and make sure it falls within the range above. For machines with low ground clearance, ask us to check suitability first.

• Four connection options are available, with the rest-on connection as the default.

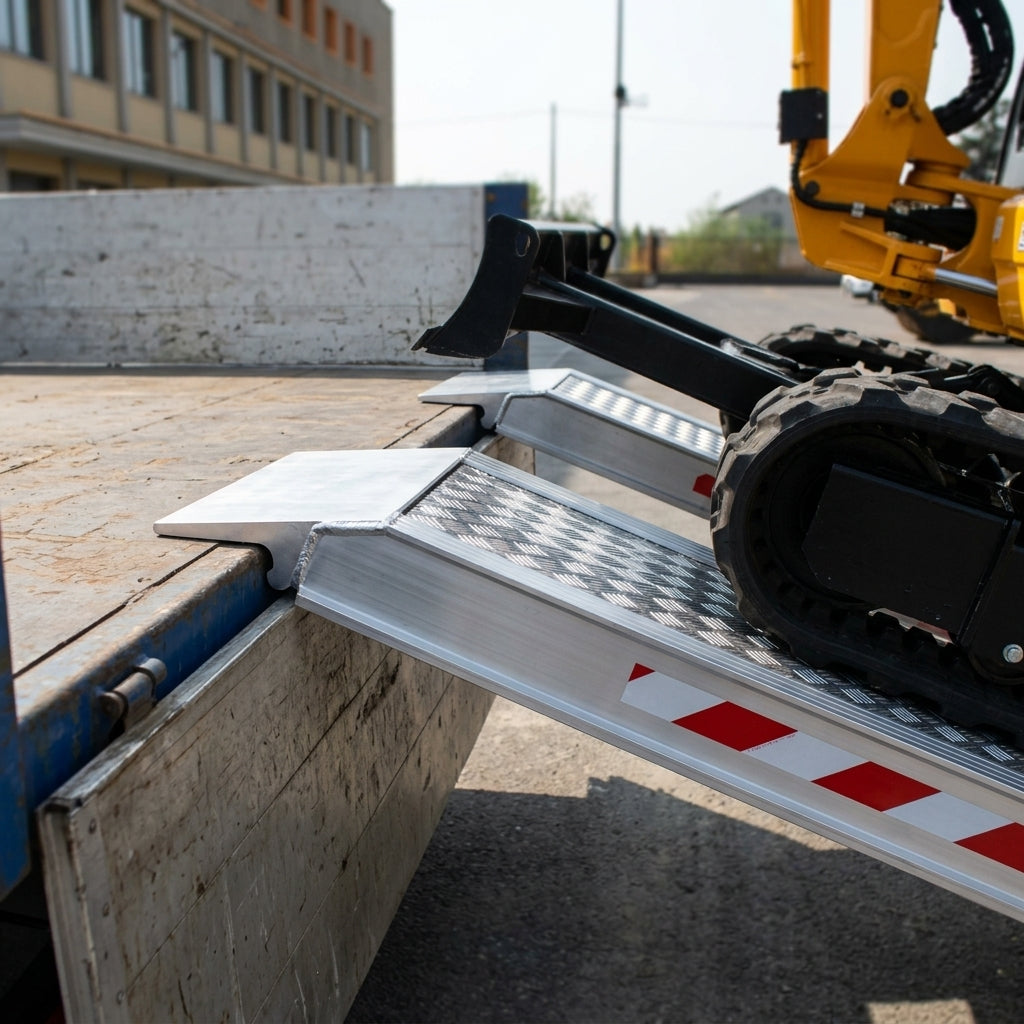

• The standard curved rest-on connection has a pre-drilled hole for securing the ramp to the vehicle. The angled foot keeps the ramp on the ground, while the ramp’s own weight and the gradient hold it firmly in place.
• If you need a different connection, such as a hook, just let us know after placing your order.

• Not suitable for solid wheels, such as those on road surfacing machines; a dedicated industrial ramp for steel tracks is needed for that type of machinery.
• Images are for illustration only; the actual product may vary slightly due to product improvements.
