Aluminium Loading Ramps (Pair) – 4500mm L x 300mm W x 75mm Profile, 1160kg

A pair of lightweight plant ramps in aluminium, 4500mm long and 300mm wide with a 75mm profile, rated to 1160kg for the pair. They are made for vans, trailers and car transporters, carrying lightweight tracked machinery such as diggers, dumper trucks, excavators and ride-on mowers. A popular choice in the construction, landscaping and agricultural sectors.

• Maximum capacity 1160kg across the pair. Capacity depends on the machine's wheelbase: 1000kg at 1000mm, 1070kg at 1250mm, 1160kg at 1500mm.
• The stated capacities apply only where the vehicle's weight is spread evenly; if your machine carries more weight over one end, ask us to check suitability before ordering.
• Tracks or wheels must be at least 150mm wide, up to a maximum of 220mm.
• Suits a load height of 1200mm to 1350mm (measured from the ground to the point where the ramps rest).
• Each ramp weighs 28.5kg (57kg per pair).
• Designed for a maximum gradient of 30%; do not use them any steeper.
• Non-slip aluminium surface.
• The foot of each ramp is cut to suit the load height, giving a smooth run onto the ramp.
• Made for loading tracked plant and vehicles such as diggers, tractors, excavators and ride-on mowers, and suited to professional use in construction and landscaping.
• Not suitable for the solid wheels found on road surfacing machines; steel-tracked machinery needs industrial ramps with a suitable surface.
• Fully TÜV certified, so they are proven to carry the stated maximum capacity. Aluminium is durable and lighter than steel.

• Supplied as standard with a rest-on connection with a pin, a popular choice for flatbed vehicles and tipper trucks. For beaver tail trailers a hook connection is normally recommended.
• Four connection options are available. To change from the standard rest-on connection, for example to a hook connection, let us know after you order.

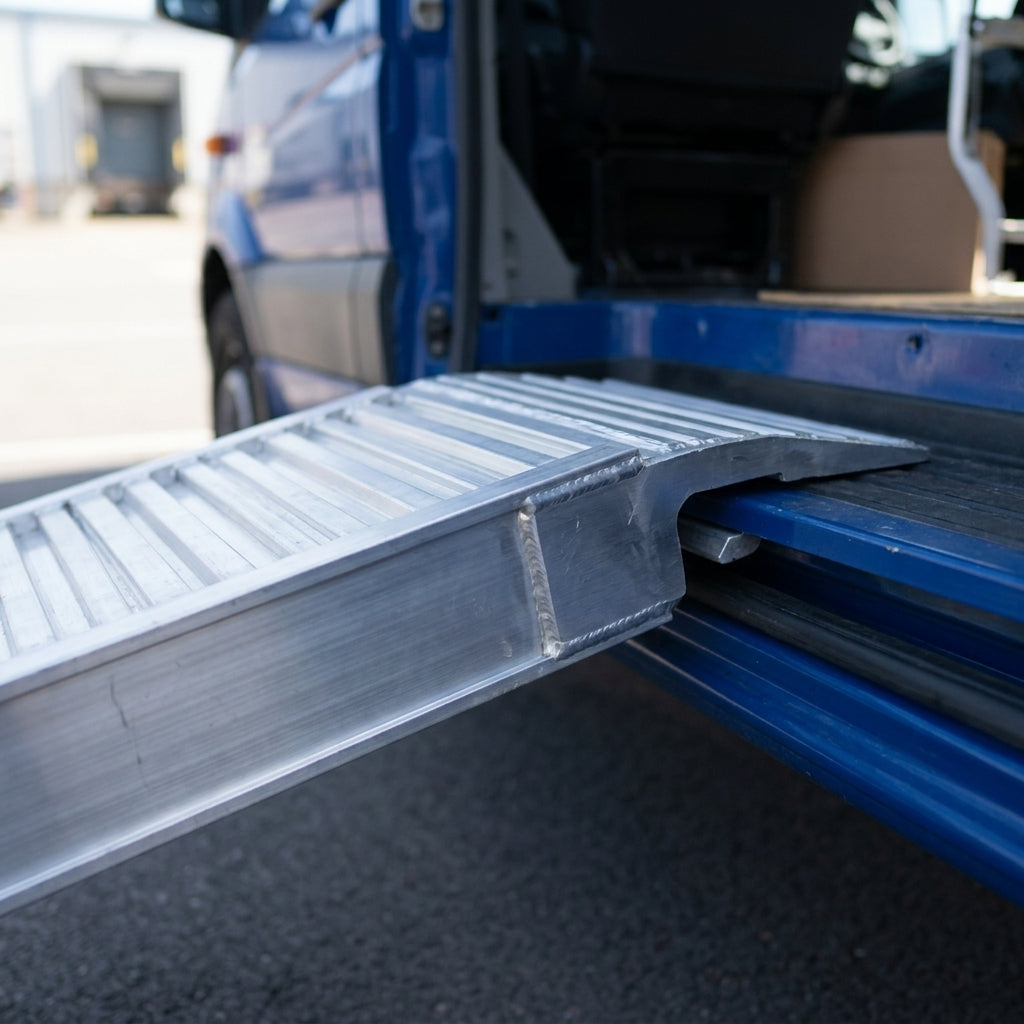

• The curved rest-on lip has a pre-drilled hole for securing the ramp to the vehicle. The angled foot keeps the ramp on the ground, while its own weight and gradient hold it firmly in place.

• Built without side edges as standard; versions with edges are also available.
• Customisable: custom load heights, custom sizes and nylon handles are available.
• Quotes for bespoke ramps are available on request.
• Easy to fit, made in Europe and covered by a two-year warranty.

• Sold as a pair; the price and capacity shown are for both ramps. A single ramp can be quoted on request.
• A 30% gradient is usually too steep for low-clearance cars, forklifts and scissor lifts; dedicated car ramps, container ramps or a custom solution suit these better.
