1-Channel Split-Top Cable Protector, Orange – 914mm L x 292mm W x 40.6mm H, for Cables up to 31.8mm
£408.00
Not sure which size you need?
Send us your cable or hose diameters and traffic type — we'll confirm the right protector before you order.
Overview
A single-channel cable protector for any type of worksite, from construction sites with medium-duty, load-bearing traffic to amusement parks with heavy foot traffic. The split-top design makes it quick and easy to place cables, and the modular, interlocking build makes assembly, take-down, transport and storage simple.
Specifications
| Size | 914.4mm L x 292.1mm W x 40.6mm H |
|---|---|
| Height (mm) | 40.6 |
| Length (mm) | 914.4 |
| Width (mm) | 292.1 |
| Channel Width (mm) | 31.8 |
| Channel Size (mm) | 31.8 x 31.8 |
| Capacity (kg) | 7711 |
| Weight (kg) | 5.9 |
| One Year Warranty | Yes |
| Easy to Fit | Yes |
| Leave Outside | Yes |
| Cable Protector Color | Orange |
| Max Cable/ Hose Diameter (mm) | 31.8 |
| No. Channels | 1 |
| Capacity per Axle (kg) | 10614 |
| Capacity per Tyre (kg) | 5307 |
| Operating Temperature (deg. F) | 70 |
| Speedlimit (mph) | 10 |
| Colour Options | Black |
Features
- Protects cables and hoses up to 1.25" (31.8mm) outside diameter.
- Split-top model for easy cable placement.
- Patented T-connectors let you join it with other protectors in the range to extend to any length.
- Durable all-weather polyurethane construction that can be left outside.
- Lightweight modular interlocking design that is easy to transport, set up, take apart and store.
- A quick solution for protecting single runs of cable and hose.
- High-visibility orange finish.
- One-year warranty.
Capacity & Size
- Rated capacity 7,711kg; 10,614kg per axle and 5,307kg per tyre.
- Maximum vehicle speed over the protector: 10mph.
- 914.4mm L x 292.1mm W x 40.6mm H, weighing 5.9kg.
Good to Know
- Product images are for illustration only; the actual product may vary slightly due to ongoing product improvements.
Need more width or reach?
All cable protectors & covers →Wider tracks
Cable Protector Bridge for 5-Channel Protectors – 914mm L x 355mm W x 53mm H, Polyurethane
£648.00
Longer reach
20mm High Yellow Single-Channel Cable Cover for Cables up to 12.7mm – 959mm L x 131mm W
£36.00
Higher capacity

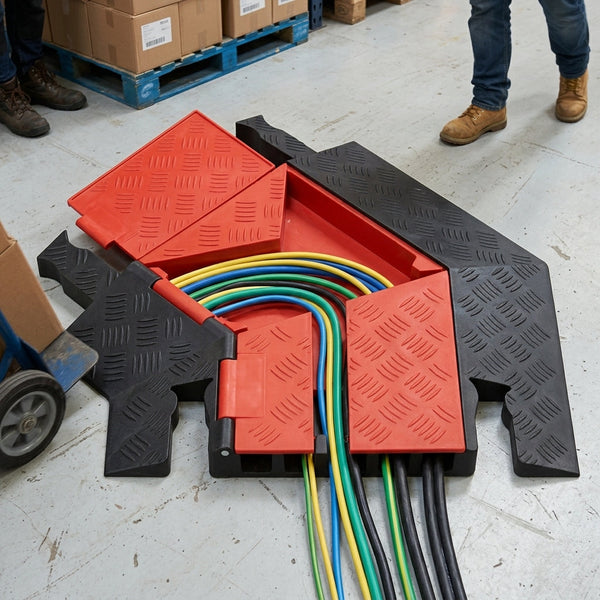

5-Channel Cable Protector 45° Left Turn Section, Orange/Black – for Cables up to 1.325", 622mm L x 502mm W x 48mm H, 9,526kg Per Axle
