Extra Wide Aluminium Plant Loading Ramps (Pair) 5000mm L x 510mm W, 160mm Profile – 4,210kg

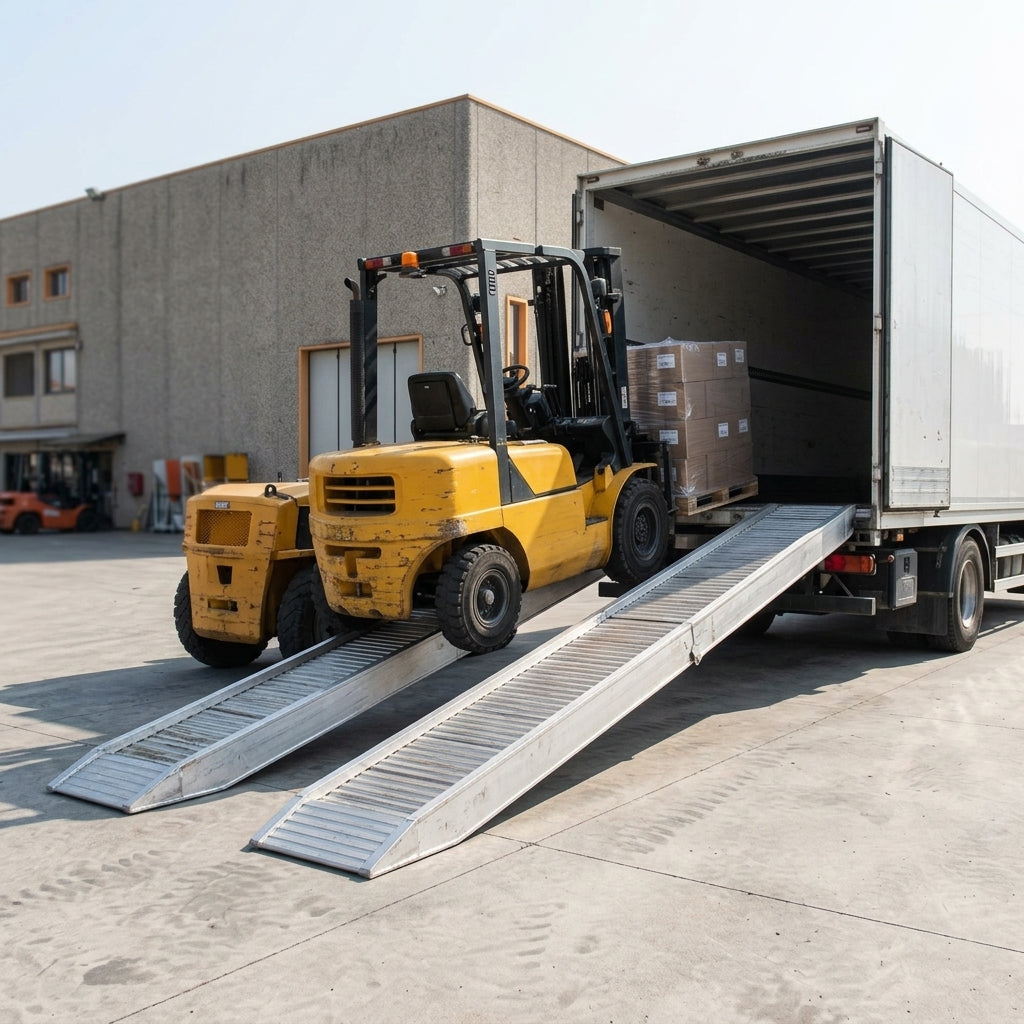

A pair of heavy-duty aluminium loading ramps, each 5000mm long x 510mm wide with a 160mm profile thickness. With a maximum capacity of 4,210kg per pair, they are ideal for rubber-tracked excavators and diggers, as plant ramps and for telehandlers. Price and capacity are for the pair.

• Core profile thickness of 160mm and a width of 510mm per ramp.
• Suits tracks or wheels from 200mm minimum to 430mm maximum width.
• Supplied without edges as standard; also available with edges on both sides or with one raised edge.

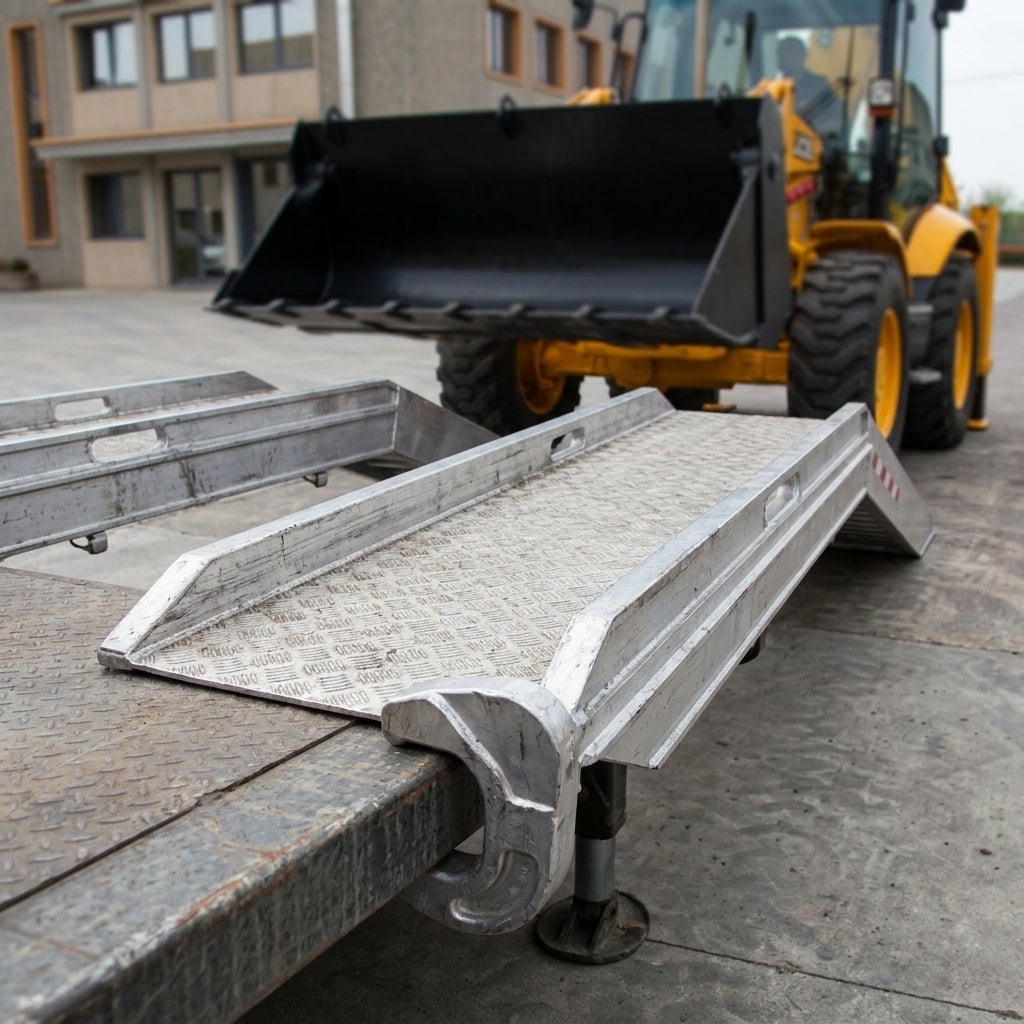

• Four connection options are available; the default is a rest-on connection with a pre-drilled hole. Other options, such as a hook connection, can be requested after purchase.
• Fully TÜV certified and European made.
• Each ramp weighs 69kg (138kg per pair).
• Two-year warranty.

• Designed for load heights from 1350mm to 1500mm. Measure the vertical height from the ground to where the ramps will rest on your vehicle or trailer – this is your load height.
• Capacity by vehicle wheelbase: 3160kg at a 1000mm wheelbase, 3610kg at a 1500mm wheelbase, 4210kg at a 2000mm wheelbase.
• The stated maximum capacities only apply when the vehicle's weight is evenly distributed.
• Custom load heights are available.

• Not suitable for solid wheels, such as those on road surfacing machines.
• Custom-built sizes and bespoke ramps are available on request – you will need your load height, details of what you are loading and its maximum weight (plus the vehicle data sheet for low-clearance items).
• Images are for illustration only; the actual product may vary slightly due to product improvements.
