Heavy-Duty Aluminium Plant Loading Ramps (Pair) 2500mm to 5500mm Long, 510mm Wide – Up to 12000kg

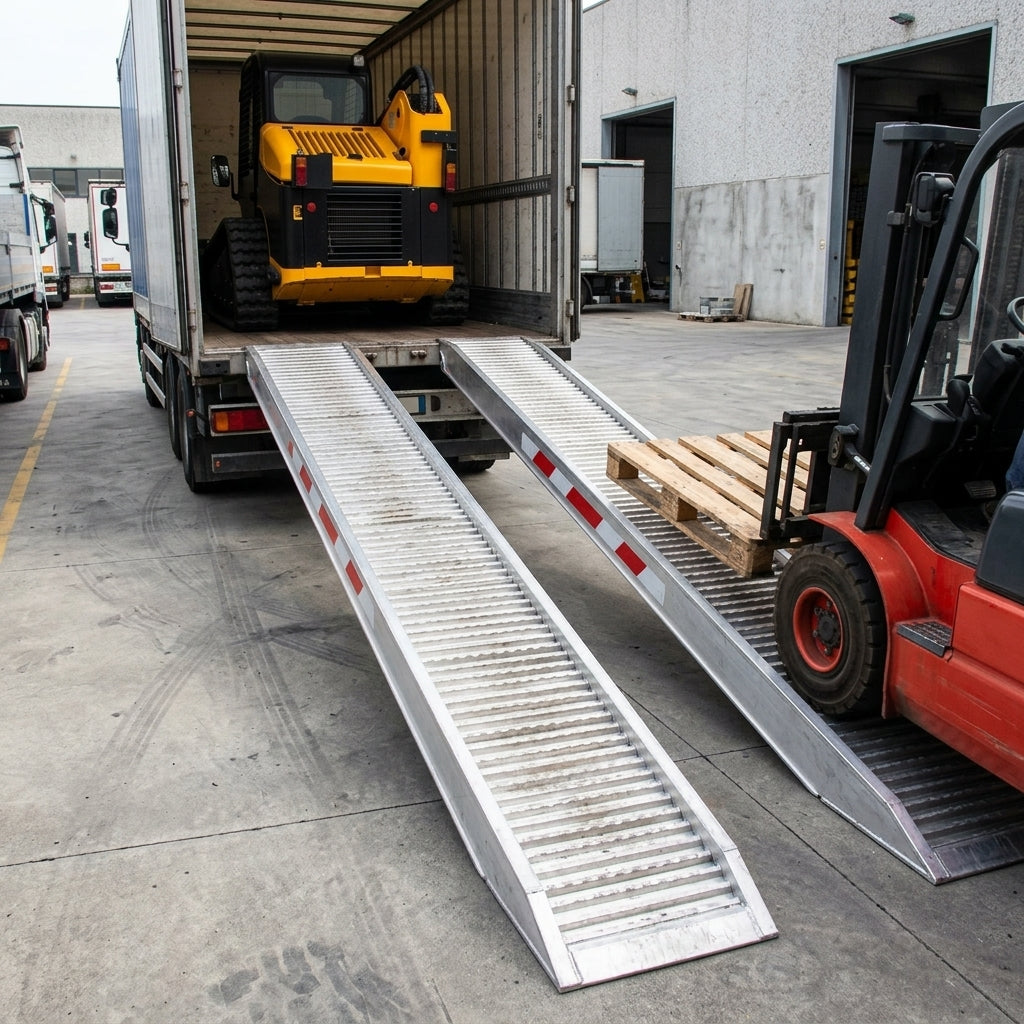

Heavy-duty aluminium loading ramps, sold as a pair, built for regular commercial use. With a maximum capacity of 12,000kg across the pair and lengths from 2500mm to 5500mm, they are designed to safely load plant machinery such as midi diggers, dumper trucks, backhoe loaders, telescopic handlers, telehandlers and similar. The portable ramps give a safe loading gradient, so you can load rubber tracked machinery and rubber wheeled vehicles into vans, tipper trucks and trailers with ease – ideal for construction firms, landscape gardeners and plant hire companies.

• 510mm wide, with a minimum track width of 200mm and a maximum track width of 430mm.

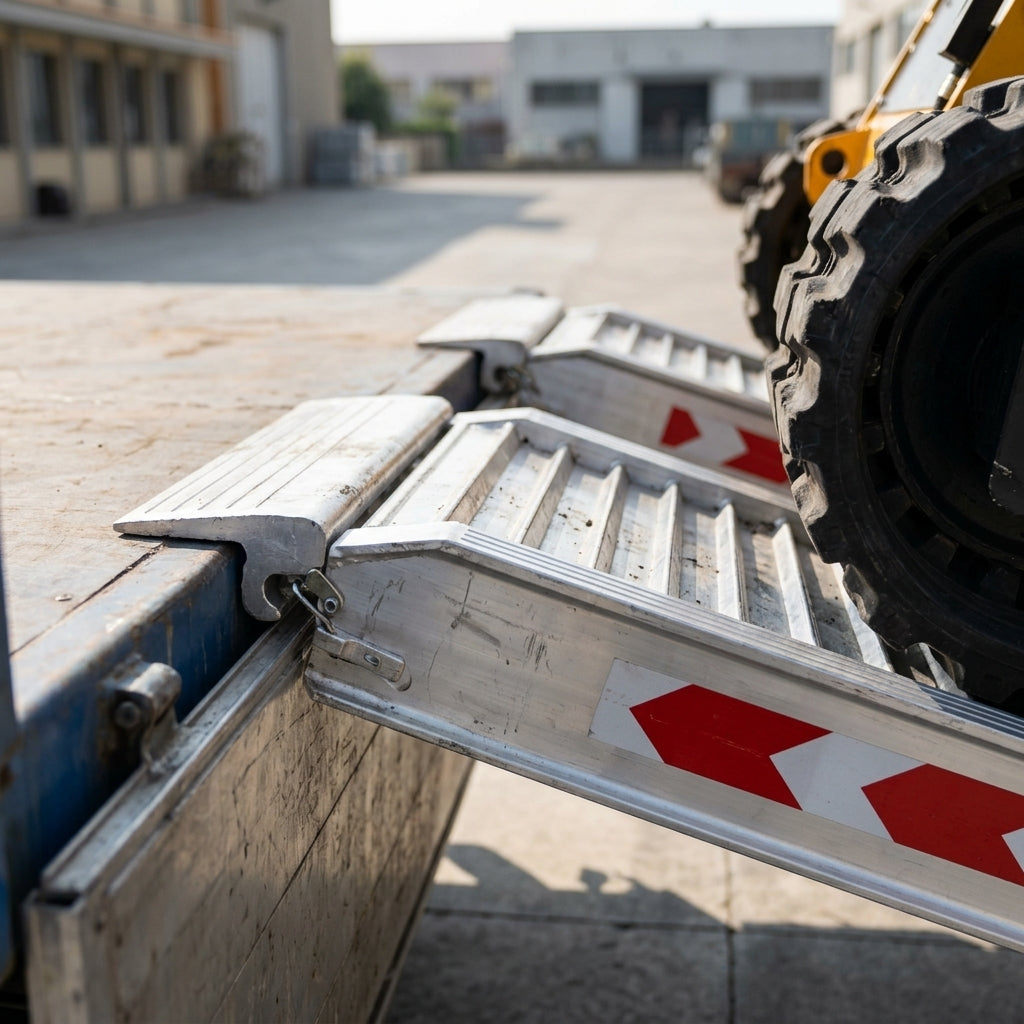

• Curved rest-on connection as standard, with a pre-drilled hole, pin and chain to secure the ramps to your vehicle – ideal for flat-bed vehicles and tipper trucks. Four connection options are available in total, including hook connections designed for beavertail trailers.
• Angled foot, precision-cut for the recommended load height, so the ramps sit securely on the ground and give a smooth entry.
• High-traction surface built for optimum grip when loading plant machinery.
• Supplied with no edges as standard for greater flexibility, which stops machinery catching on the ramps; edges can be added on request.
• Lightweight and portable – each ramp weighs only 11kg, so they are easy to lift into position and move for storage after loading. Ideal for use across a fleet of vehicles or on rental vans.
• A choice of lengths lets you achieve a safe loading gradient.

• Designed for a maximum gradient of 30%, in line with EU guidelines.
• Premium plant ramps, made in Italy and fully TÜV certified – tested to the stated capacity so you can load with confidence.
• The stated maximum capacities are only valid for vehicles whose weight is equally distributed.
• Not suitable for solid wheels, such as those found on road surfacing machines; machines with steel tracks need industrial ramps.
• Two-year warranty.

• Each length is matched to a min–max load height (the vertical height from the ground to where the ramp rests), covering load heights from 600mm to 1650mm.
• Can be customised on request, including custom load heights, widths and lengths, and adding edges and carry handles. Quotes for bespoke ramps can be supplied.
• For low-clearance machines, the foot of the ramp can be cut to give a smoother gradient, and a CAD simulation can be carried out to check the ramps suit your machine.

• Price and capacity are for the pair.
