Pair of Lightweight Aluminium Loading Ramps – 1485mm L x 200mm W, 600kg per Pair, Domestic Use
£477.60
Not sure it suits your machine?
Send us your load height and machine weight — we'll confirm the right ramp before you order.
Overview

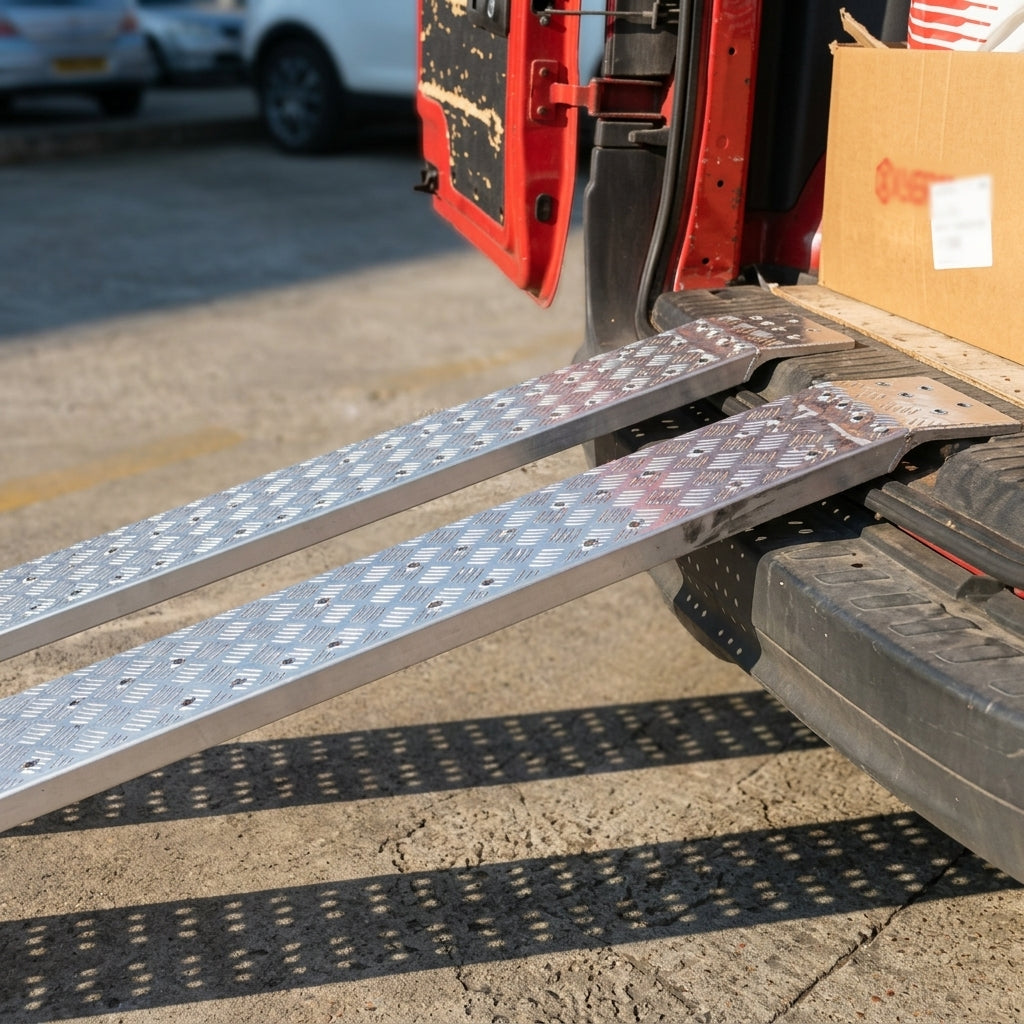

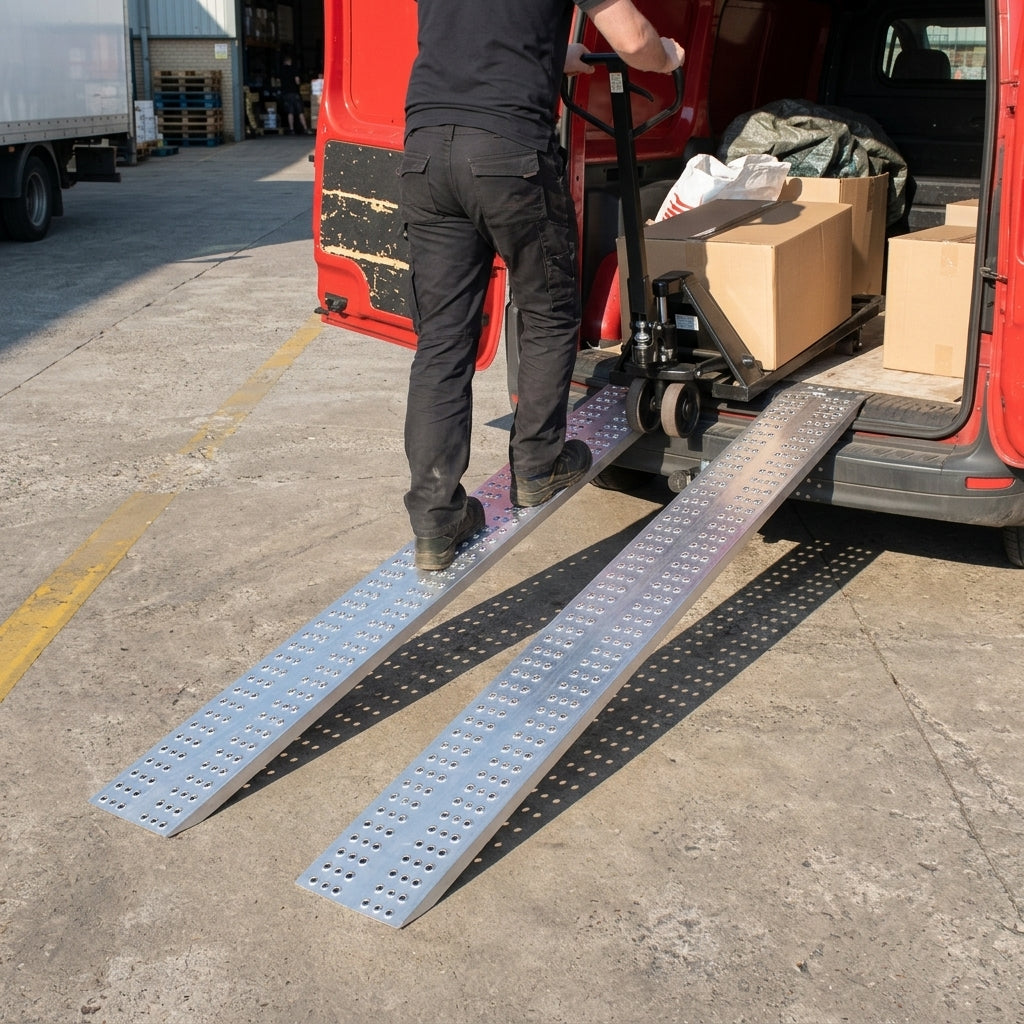

A pair of straight, single-piece aluminium loading ramps, each 1485mm long x 200mm wide. Made for use at home when loading or moving lightweight garden machinery and tractors weighing up to 600kg across the pair. For domestic use only. Price and capacity are for the pair.
Specifications
| Size | 1485mm L x 200mm W x 30mm H (Pair) |
|---|---|
| Height (mm) | 30 |
| Length (mm) | 1485 |
| Width (mm) | 200 |
| Capacity (kg) | 600 |
| Max Load Height (mm) | 450 |
| Min. Load Height (mm) | 350 |
| Weight (kg) | 6.5 |
| Weight per Ramp (kg) | 3.25 |
| One Year Warranty | Yes |
| Connection Options Available | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
| Not Solid Wheels | Yes |
| Capacity Wheelbase 500mm (kg) | 425 |
| Capacity Wheelbase 750mm (kg) | 500 |
| Capacity Wheelbase 1000mm (kg) | 600 |
| Capacity Wheelbase 1250mm (kg) | 600 |
| Colour Options | Black |
Features
- Single-piece design with zero welding, made from lightweight aircraft-grade aluminium (type 6005A).
- Straight profile for machines with regular ground clearance.
- Lightweight for easy handling - 3.25kg per ramp (6.5kg per pair) - in line with Health & Safety guidelines.
- Fully EU TUV certified, compliant with Health and Safety legislation, and tested to 200% of the rated load.
- Angled foot for a smooth transition onto the ramp.
- Flat-top, no-edge design for more flexible use.
- Supplied with a plate fixing kit as an extra safety feature.
- Lays flat for easy storage when not in use. Made in the EU. Finished in black.
Capacity by Wheelbase (Pair)
- 500mm wheelbase: 425kg
- 750mm wheelbase: 500kg
- 1000mm wheelbase: 600kg
- 1250mm wheelbase: 600kg
Size & Load Height
- Each ramp: 1485mm L x 200mm W x 30mm H.
- For load heights from 350mm to 450mm.
Good to Know
- Not suitable for tracked machinery or solid wheels - choose heavier-duty ramps designed for tracked machines.
- Please wear gloves when handling these ramps.
- Connection options are available. Easy to fit, with a one-year warranty.
