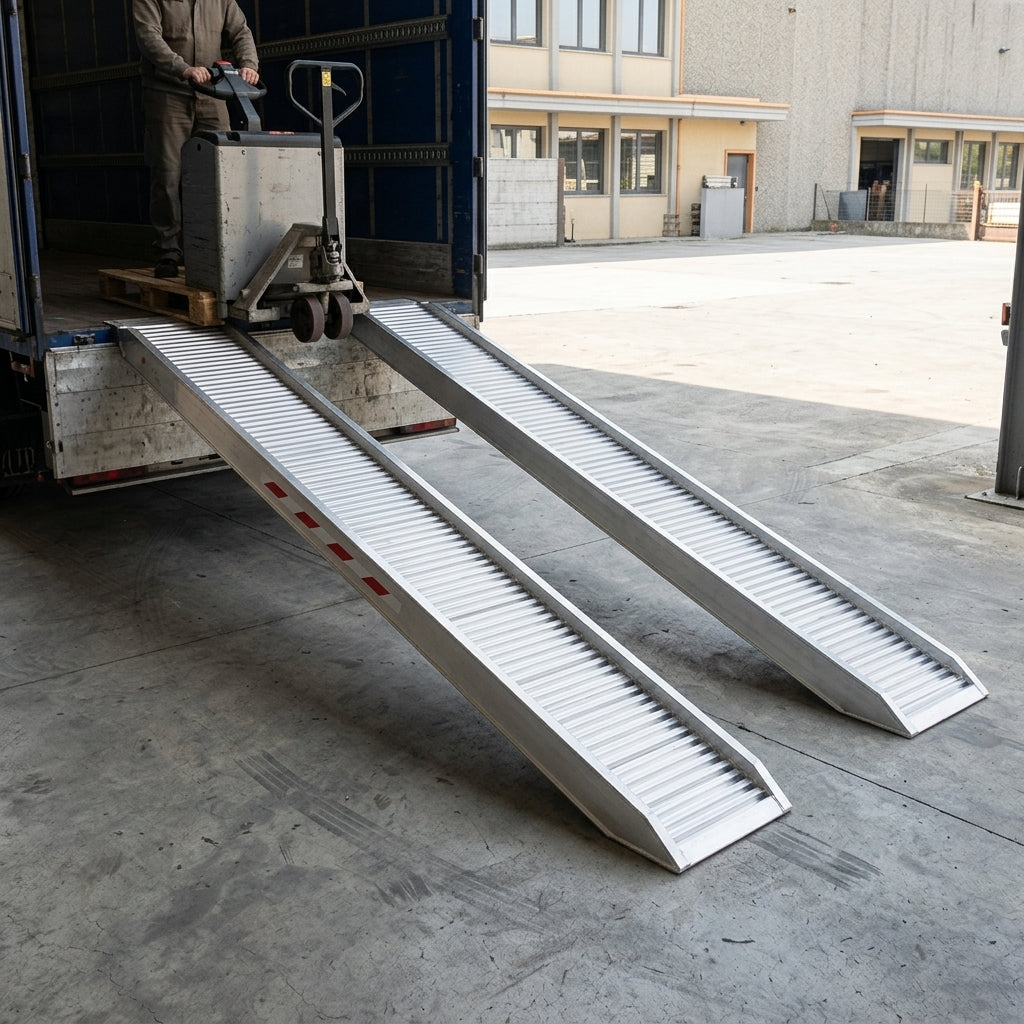

Aluminium Plant Loading Ramps (Pair) 2500mm to 5000mm Long, 400mm Wide – Up to 8000kg

Heavy-duty aluminium loading ramps, sold as a pair, for safely loading plant machinery into vans and trailers. Choose a length from 2500mm to 5000mm, with capacities of up to 8000kg across the pair. They suit rubber tracked and wheeled machines, including midi excavators, telescopic loaders, site dumpers, diggers, wheel loaders and telehandlers.

• Portable, heavy-duty ramps that bridge the gap from the ground to the vehicle, protecting the machine's undercarriage from damage.
• 400mm wide, with a minimum track width of 200mm and a maximum track width of 320mm.

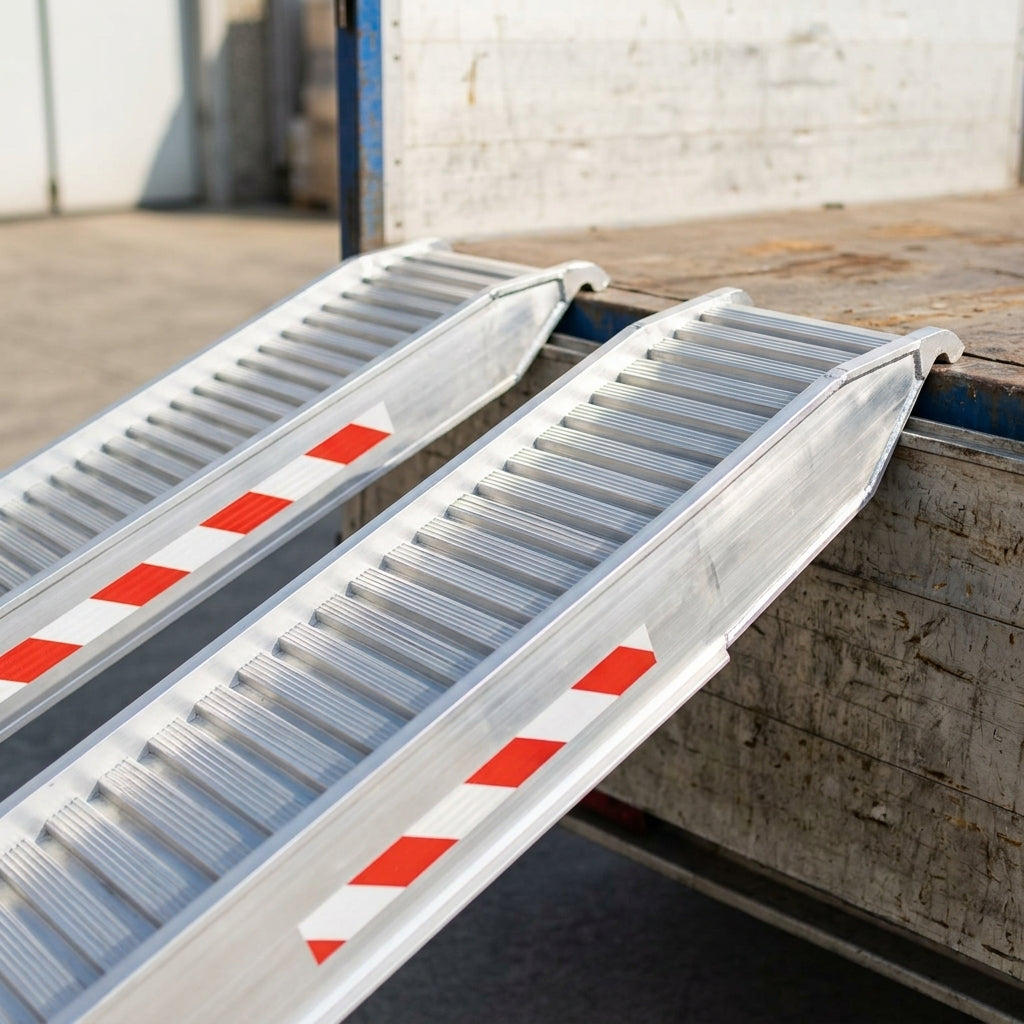

• Rest-on connection as standard, with a pre-drilled hole and pin to secure the ramps to your vehicle – ideal for flat-bed vehicles and tipper trucks. Four connection options are available in total; a hook connection is normally recommended for trailers such as beavertail trailers.
• Angled foot, precision-cut for the recommended load height on a 30% loading gradient, so the ramps sit securely on the ground and give a smooth entry.
• High-traction surface for optimum grip while loading.
• Supplied with no edges as standard for greater flexibility; edges can be added on request.
• Lightweight and portable: lift and move them into position when needed, and lay them flat for storage in your vehicle.
• Engineered for regular professional use and quick to set up – simply rest them on the vehicle and secure with the pin provided.

• Designed for a maximum gradient of 30%.
• Premium lightweight ramps, made in Italy and fully TÜV certified – a durable, safe choice for commercial environments.
• The stated maximum capacities are only valid for vehicles whose weight is equally distributed.
• Not suitable for solid wheels, such as those found on road surfacing machines; machines with steel tracks need industrial ramps.
• Two-year warranty.

• Each length is matched to a min–max load height (the vertical height from the ground to where the ramp rests), covering load heights from 600mm to 1500mm.
• Custom load heights, lengths and widths are available on request, and quotes for bespoke ramps can be supplied.
• For low-clearance machines, the foot of the ramp can be cut to give a smoother gradient, and a CAD simulation can be carried out to check the ramps suit your machine.

• Price and capacity are for the pair.
• Commonly used on construction sites, by landscape gardeners, in the agricultural sector, and by utility contractors, plant hire companies and construction firms.
