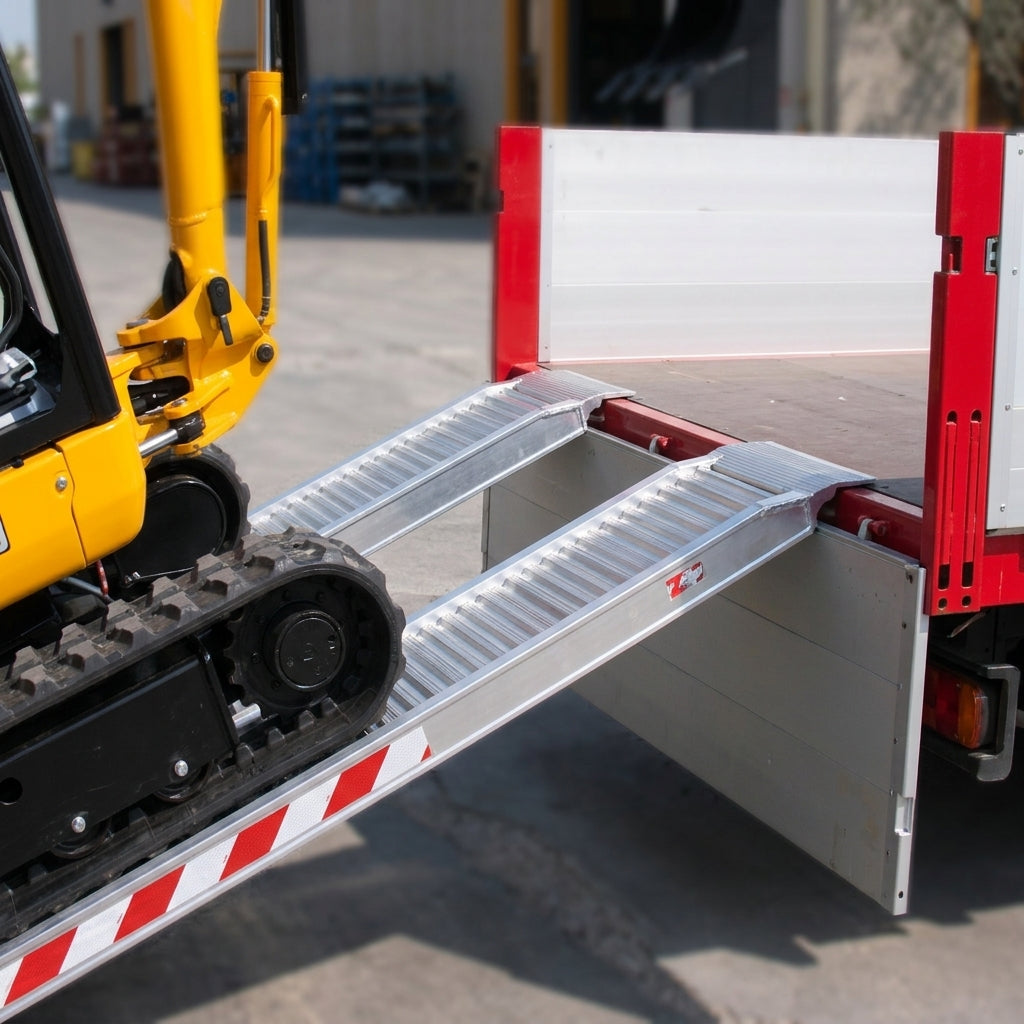

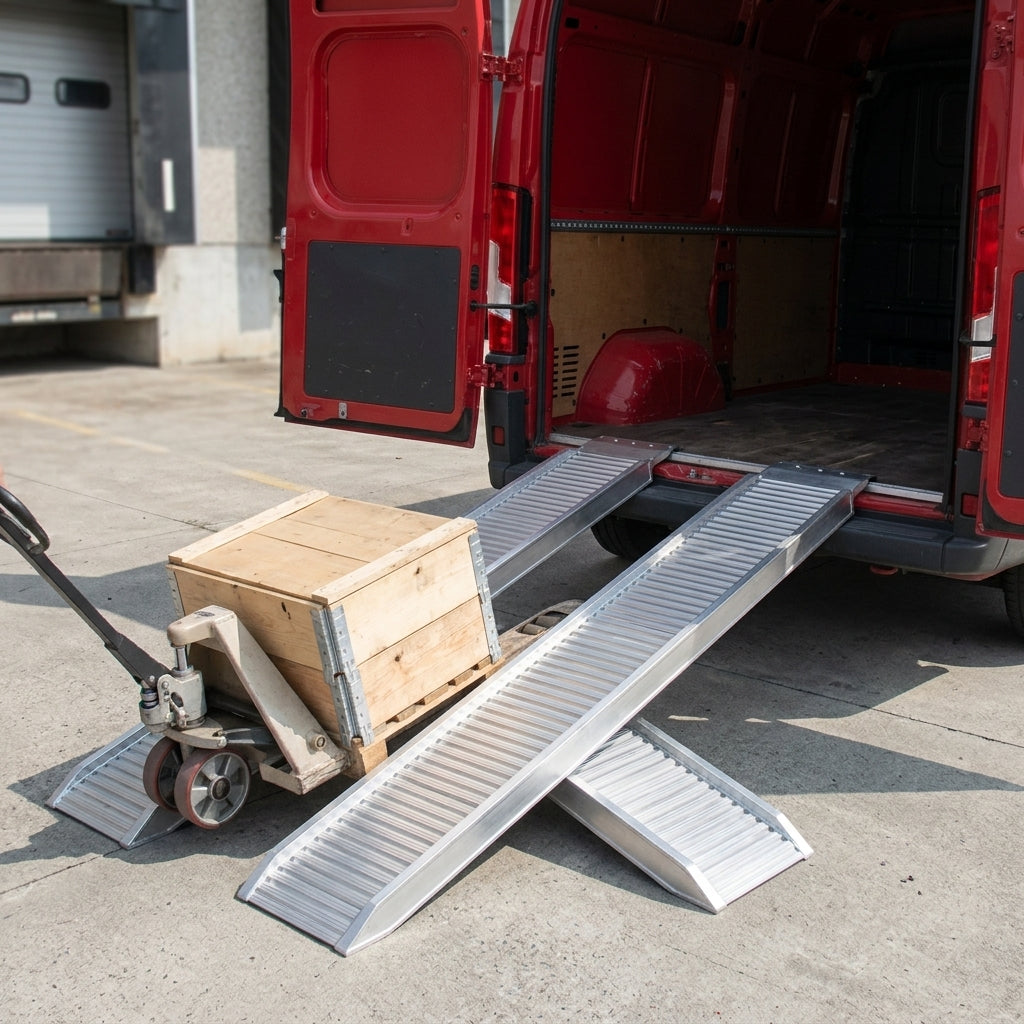

Aluminium Loading Ramps with Hook Connection (Pair) 2500mm x 360mm – 3800kg, 600–750mm Load Height

A pair of aluminium loading ramps with a hook connection, each 360mm wide x 2500mm long with a 100mm profile thickness. With a maximum capacity of 3800kg across the pair, they are ideal as car ramps or for lightweight plant.

• Hook connection to the vehicle.
• Designed for use at a 30% gradient, for load heights of 600mm to 750mm.
• Track width from 200mm minimum to 280mm maximum.
• Available with or without edges; supplied without edges as standard.
• Weighs 36kg per pair.
• Fully TUV certified. Black finish.
• Two-year warranty.

• Measure the vertical height from the ground to where the ramp will rest on your vehicle (your load height) and check it falls within 600mm to 750mm.
• The 30% gradient is generally too steep for low-clearance cars, forklifts and scissor lifts.
• Not suitable for the solid wheels found on road-surfacing machines.
• Custom ramps can be made: you will need your load height, details of what you are loading and its maximum weight, and for low-clearance items the vehicle's data sheet.

• Price and capacity are for the pair.
• Pictures are for illustration only; the actual product may vary due to product improvements.
