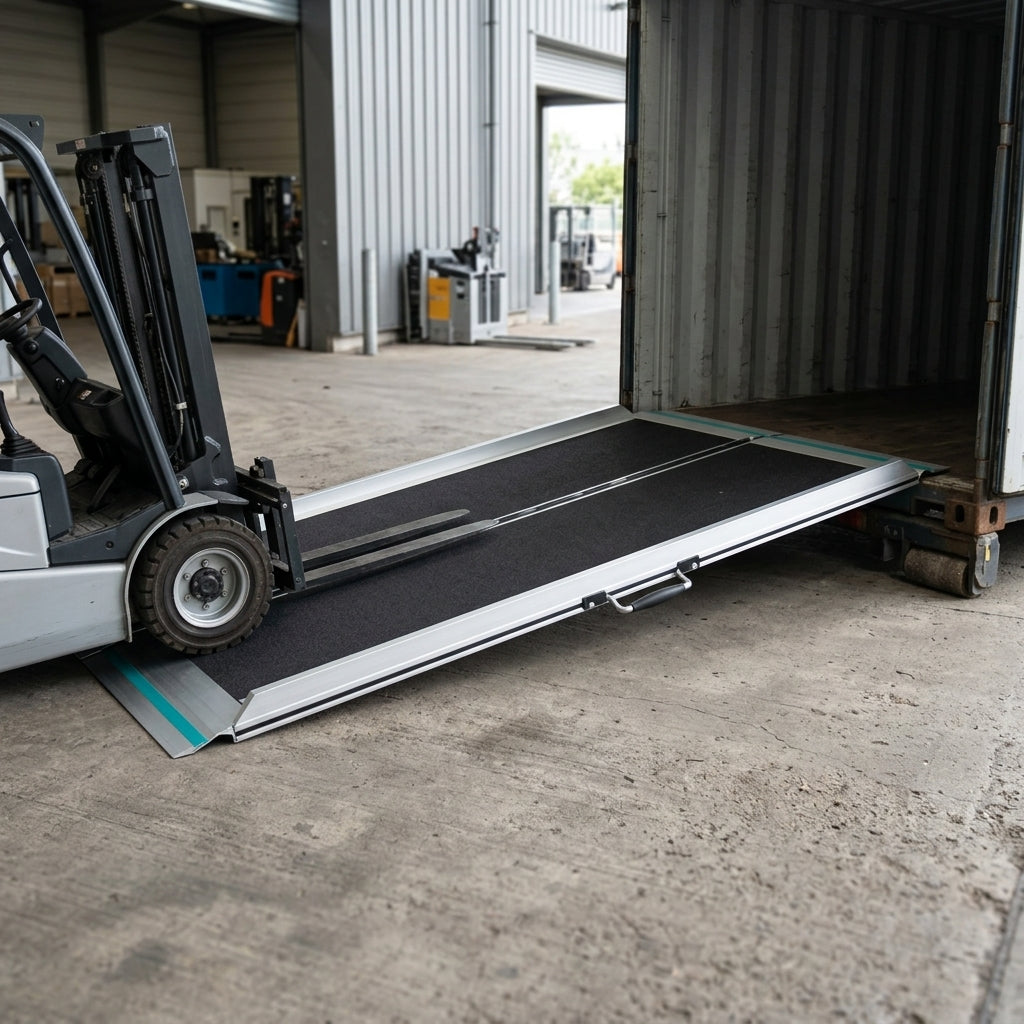

Portable Loading Ramp 600-2400mm

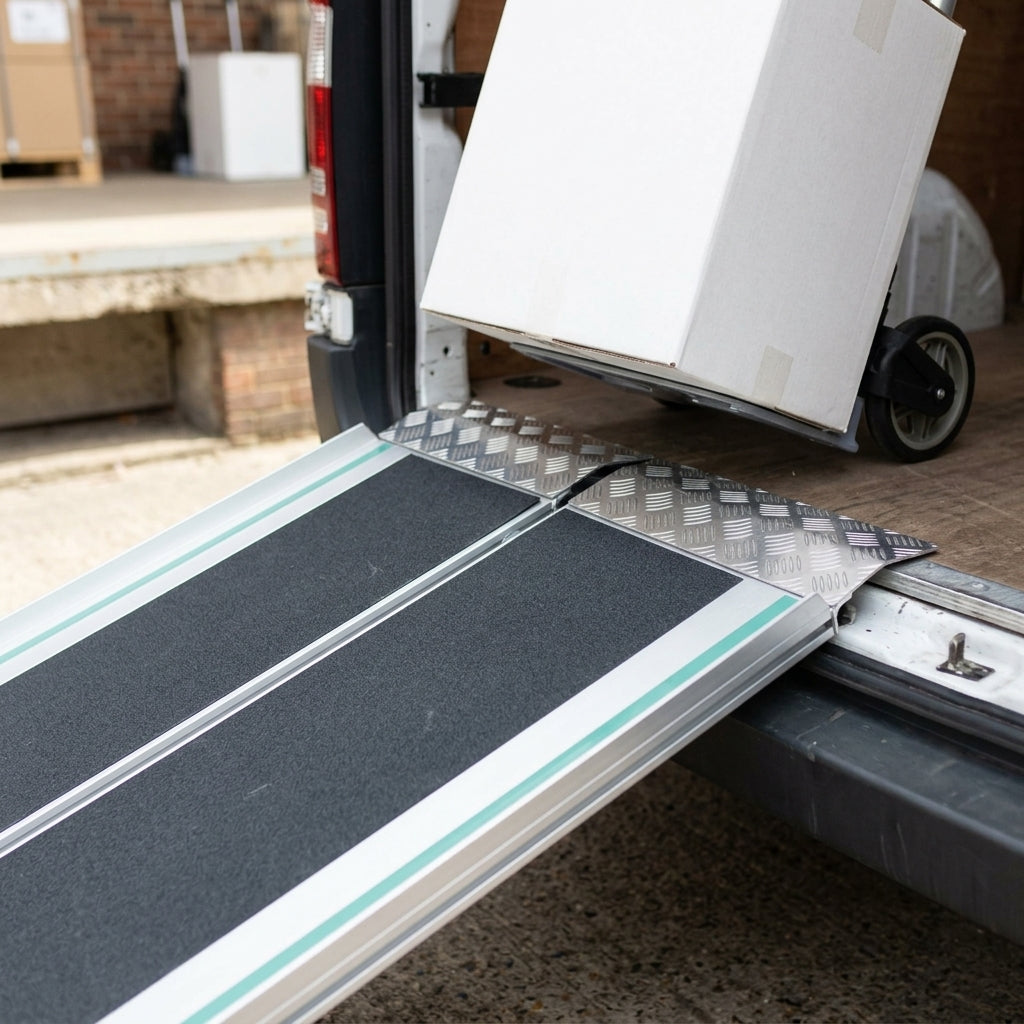

Portable Loading Ramp 600-2400mm (view 2)
1 / 2

Folding Anti-Slip Portable Loading Ramp – 600mm to 2400mm L x 790mm W, up to 475kg

£816.00 incl. VAT
Need more width or reach? Compare other sizes ↓

Not sure it suits your machine?

Send us your load height and machine weight — we'll confirm the right ramp before you order.

Will these ramps reach your vehicle?Open the load height checker

Overview

A lightweight folding loading ramp for getting goods, trolleys, flight cases, cages and equipment safely over steps and into vans. Built for commercial use, it simply unfolds and rests on the step or vehicle so you can start loading straight away. It can also help wheelchairs, mobility scooters and rollators over steps and doorways. Available in lengths from 600mm to 2400mm.

Specifications

Length Options600mm L x 790mm W
Edge Height (mm)36 (internal), 40 (external)
Length (mm)600 - 2400
Total Width (mm)790 (excluding carry handles)
Width (mm)790
Capacity (kg)275 - 475
Max Load Height (mm)180 - 720
Weight (kg)6.4 - 19
Two Year WarrantyYes
Easy to FitYes
Electric WheelchairYes
Manual WheelchairYes
Mobility Scooter FriendlyYes
Colour OptionsWhite

Features

  • Folds like a book and clips securely shut, so it cannot open by accident when stored.
  • Built-in carry handle lets one person lift and move it easily.
  • Full-width black anti-slip surface for strong grip while loading.
  • Flat hinge reduces trip hazards and gives a smooth loading run.
  • High-grip, curved rest-on connection keeps the ramp firmly on the step or vehicle; the ramp's angle, weight and curved foot all help hold it in place.
  • The curved foot and rest-on connection give a smooth transition from the ground onto the ramp and from the ramp onto the step or doorway.
  • Raised safety edges: 36mm internal and 40mm external height, to help keep users on the ramp.
  • High-contrast detailing on the rest-on connection and foot improves visibility for people with low vision.
  • No installation needed and no modifications required.
  • Capacity of 275kg to 475kg, depending on the length chosen.
  • Total width 790mm, excluding carry handles.
  • Made in Britain, with a two-year warranty.

Choosing Your Ramp

  • Measure the vertical height from the ground to where the ramp will rest – this is your load height. Maximum load heights range from 180mm to 720mm across the lengths; low-clearance items and mobility aids need a longer ramp.
  • Wheelchair access: a gradient of at least 1:6 is recommended, and a gentler 1:8 is better.

Load height checker

Measure straight up from the ground to where the ramps will rest on your vehicle or trailer.

Get a quote

Folding Anti-Slip Portable Loading Ramp – 600mm to 2400mm L x 790mm W, up to 475kg
