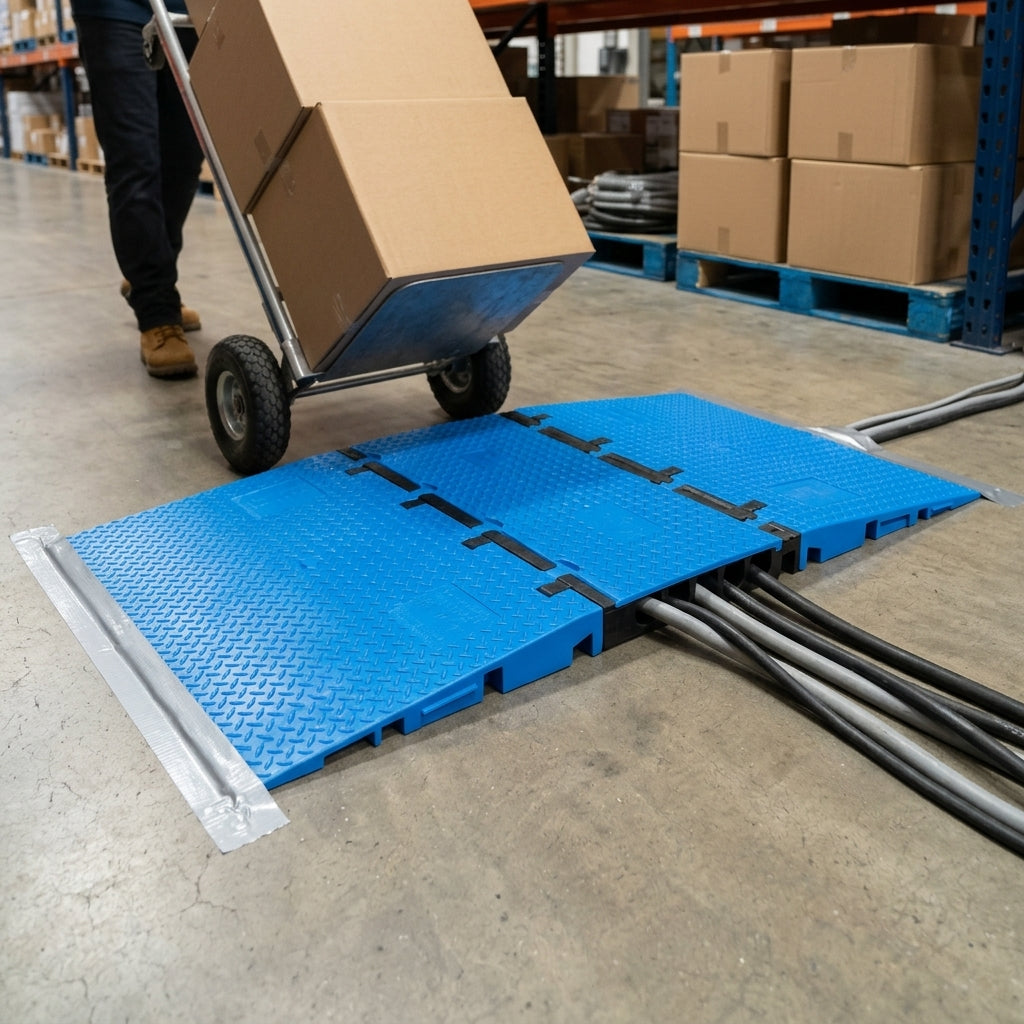

Blue Wheelchair-Accessible 5-Channel Cable Protector Ramp Set – 1000mm L x 54mm H, 6° Incline, 5 Tonne

A wheelchair-accessible cable protector set that protects up to 5 cables while letting wheelchairs, mobility scooters, rolling walkers, walkers, pushchairs and trolleys cross safely. It is made up of a blue-lid 5-channel middle section and two flat blue ramps with a gentle 6° incline, built for DDA / ADA accessibility. Thanks to its capacity and design, low-clearance cars, pallet trucks and forklifts can also pass over it. Ideal for events, festivals, workplaces and warehouses, indoors or outdoors. Made in Germany.

• Made from extremely robust, break-proof TPU / recycled polyurethane (100% recyclable).
• 3D laser-grip chequered, high-visibility anti-slip surface for pedestrians and wheelchairs.
• Patented self-cleaning lid hinge; the lid locks securely when closed.
• 80cm drive-across zone, expandable to any width: the modular, interlocking sections connect side by side and in length, in multiple directions.
• Load capacity of approx. 5 tonnes on a 25 x 30cm area; suitable for motor vehicles.
• Resistant to oil, acids, petrol and short-term contact with solvents.
• Smooth surfaces, edges and corners help prevent injuries.
• TÜV SÜD certified, with fire protection class E to DIN EN 13501-1 (B-s1 pending).
• Temperature range -30°C to +60°C; hardness 88 ± 4 Shore A.
• All components are also available separately. Customisable.
• Five-year warranty.

• Middle cable protector: 1000mm L x 325mm W x 54mm H, 10.2kg, with 5 channels.
• Ramp sections: 1000mm L x 430mm W x 54mm H, 8.5kg each.

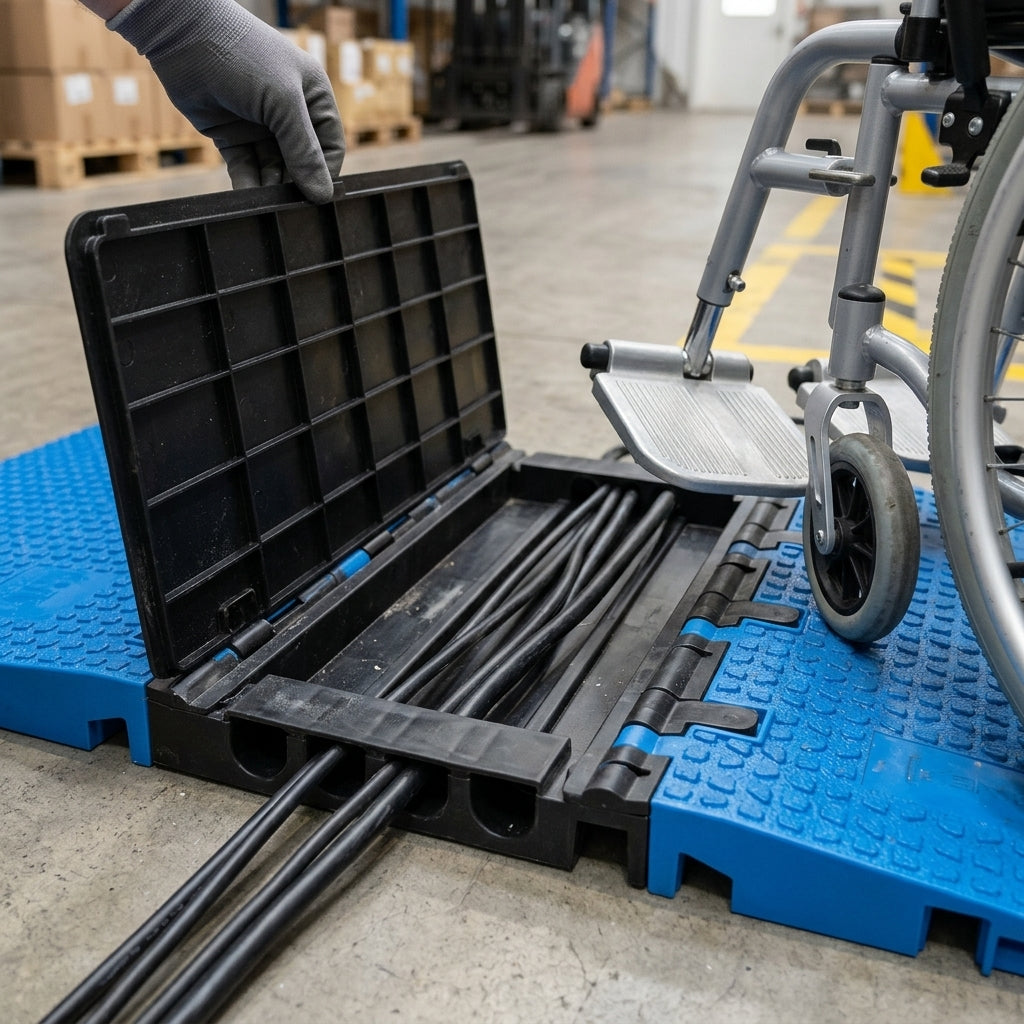

• Rest the middle section on the floor, open the lid, lay in the cables or wires and close the lid.
• Attach the outer ramps to give a smooth gradient over the cables.
• Join several sets to make larger areas accessible, or combine with the matching 5-channel cable protectors and end ramps of the same system where only certain sections need to be accessible.

• Protects low-voltage cables up to 500V, such as communication, control and power-supply cables, as well as water and sewage pipes and hoses. Not suitable for rigid gas pipes.
• Check the maximum gradient and ground clearance of your forklift or pallet truck before use.
• Easy to clean, even with a steam jet cleaner. Keep the hinge and lid clean, and lightly lubricate the hinges and closure regularly with silicone spray, wiping off any excess so it does not become slippery.
• There is no specific law on accessible cable protectors, but the Equality Act 2010 requires reasonable adjustments to keep areas accessible; wheelchair-friendly cable ramps help with this.
• Pictures are for illustration only; the actual product may vary due to product improvements.
