Extra Wide Heavy Duty Aluminium Plant Loading Ramps (Pair) – 2500mm to 5000mm L x 400mm W, up to 6000kg
Not sure it suits your machine?
Send us your load height and machine weight — we'll confirm the right ramp before you order.
Overview
A pair of wide, heavy-duty, non-folding aluminium ramps rated up to 6,000kg across the pair. They safely load plant machinery on rubber tracks or rubber wheels into trailers and vans or over steps, including diggers, midi excavators, site dumpers, utility and compact tractors and telehandlers. Built for commercial use by plant hire companies, groundwork firms, engineering companies, utility contractors and agricultural businesses moving valuable machinery between sites without damage.
Specifications
| Min - Max Load Height | 600mm - 750mm |
|---|---|
| Capacity Per Pair | 3800kg |
| Length Options | 2500mm L x 400mm W |
| Width (mm) | 400 |
| Minimum Track Width (mm) | 200 |
| Maximum Track Width (mm) | 320 |
| Default Connection | Rest On Connection |
| Two Year Warranty | Yes |
| Connection Options Available | Yes |
| Customisable | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
Features
- 400mm wide, with a track width from 200mm to 320mm.
- Low profile, just 100mm to 126mm thick depending on the ramp you choose.
- Each ramp weighs only 11kg, so they are easy to lift into position.
- Ideal for medium and lightweight plant machinery.

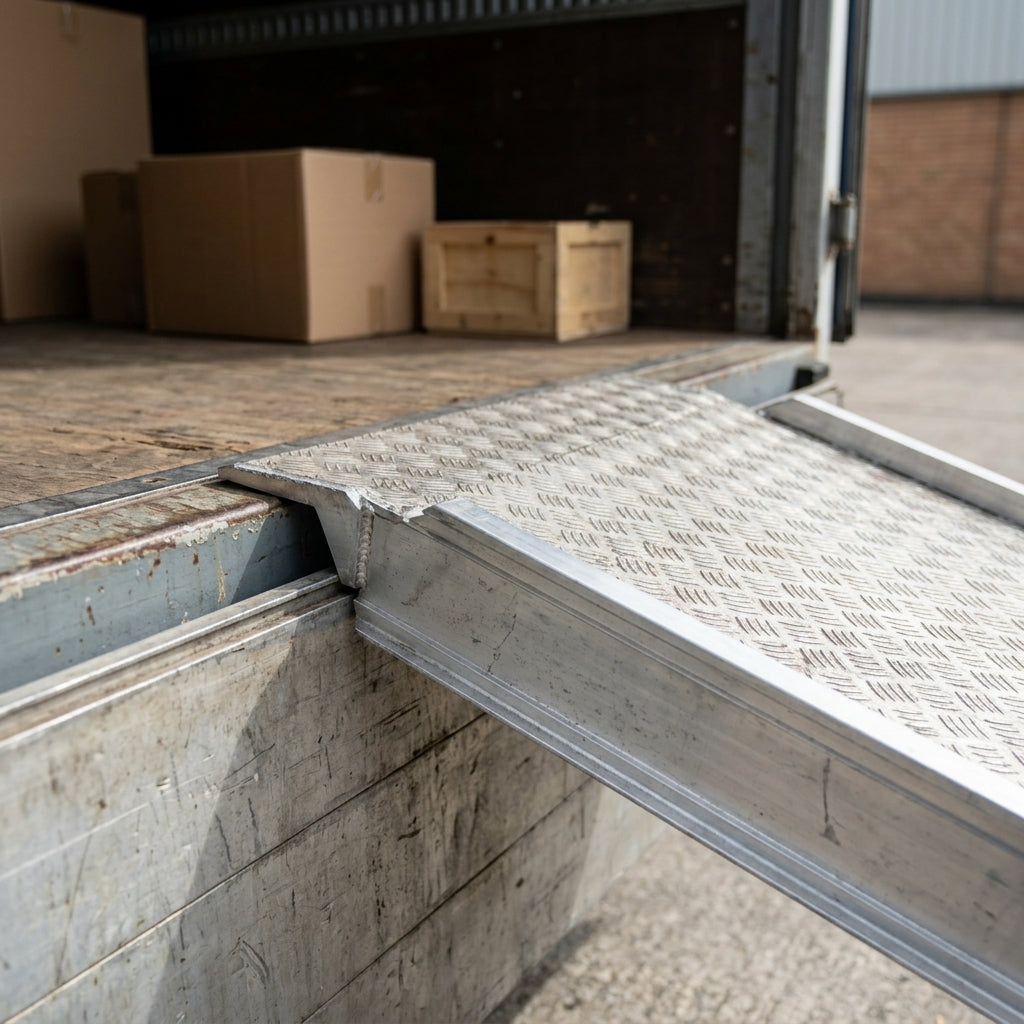

- Four connection options; the default curved rest-on connection, with a pre-drilled hole plus the supplied pin and plates, suits flat-bed vehicles and tipper trucks. A hook connection is normally recommended for trailers such as beavertail trailers.
- Angled foot, cut for the recommended load height, keeps the ramps planted and gives a seamless move from the ground onto the ramp.
- High-traction surface for optimum grip while loading.
- No edges as standard for greater flexibility; edges are available on request.
- Portable: simply rest the ramps on your vehicle, with no vehicle modifications needed, and lay them flat for storage.
- Designed for a maximum loading gradient of 30%, in line with EU guidelines.
- Two-year warranty.
Custom Solutions
Made in Italy and TÜV certified. Custom options include other lengths and widths, edges, carry handles and custom load heights. For low-clearance items the foot can be cut for a smoother gradient, and a CAD simulation can check that the ramps suit your machine. Bespoke quotes are available on request.
Good to Know
- Not suitable for the solid wheels found on road-surfacing machines; machines on steel tracks need dedicated industrial ramps.
- Stated capacities only apply when the vehicle's weight is evenly distributed.
- Price and capacity are for the pair.
Load height checker
Measure straight up from the ground to where the ramps will rest on your vehicle or trailer.
