Heavy Duty Mobile Yard Ramp with Hydraulic Assist – 11260mm L x 2460mm W, 13,000kg Capacity
£60,000.00
Not sure it suits your forklift?
Send us your dock height and forklift weight — we'll confirm the right ramp before you order.
Overview
A heavy-duty, CE-marked mobile yard ramp rated to 13,000kg, for quick, easy loading and unloading of containers and heavier machinery. It is 11260mm long with a 2260mm usable width and 2460mm outer width, and meets the latest European standards and directives.
Specifications
| Size | 11260mm L x 2460mm W (2260mm Usable W) |
|---|---|
| Height of Ramp (mm) | 800 |
| Internal Width (mm) | 2260 |
| Length (mm) | 11260 |
| Outer Ramp Width (mm) | 2460 |
| Capacity (kg) | 13000 |
| Max Load Height (mm) | 1650 |
| Weight (kg) | 4800 |
| One Year Warranty | Yes |
| Customisable | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
| Leave Outside | Yes |
| Colour Options | Black |
Features

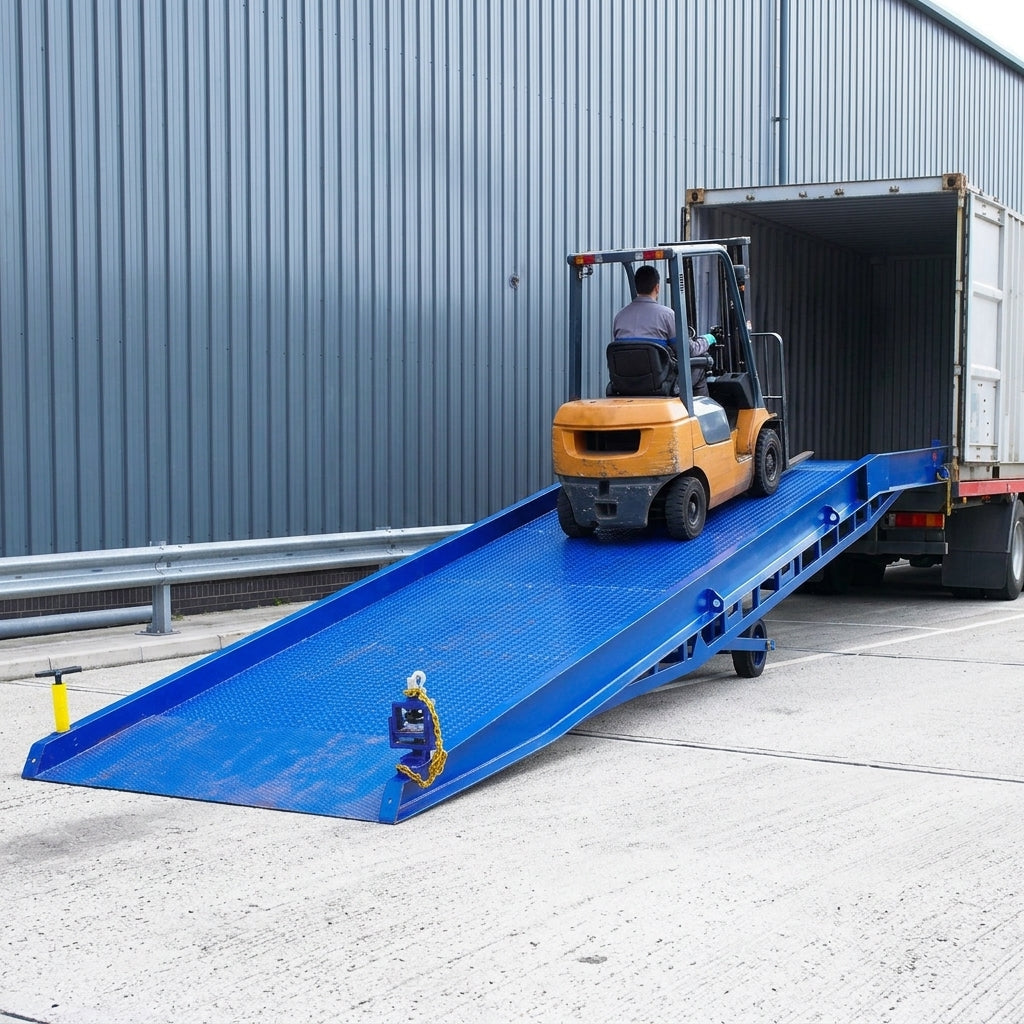

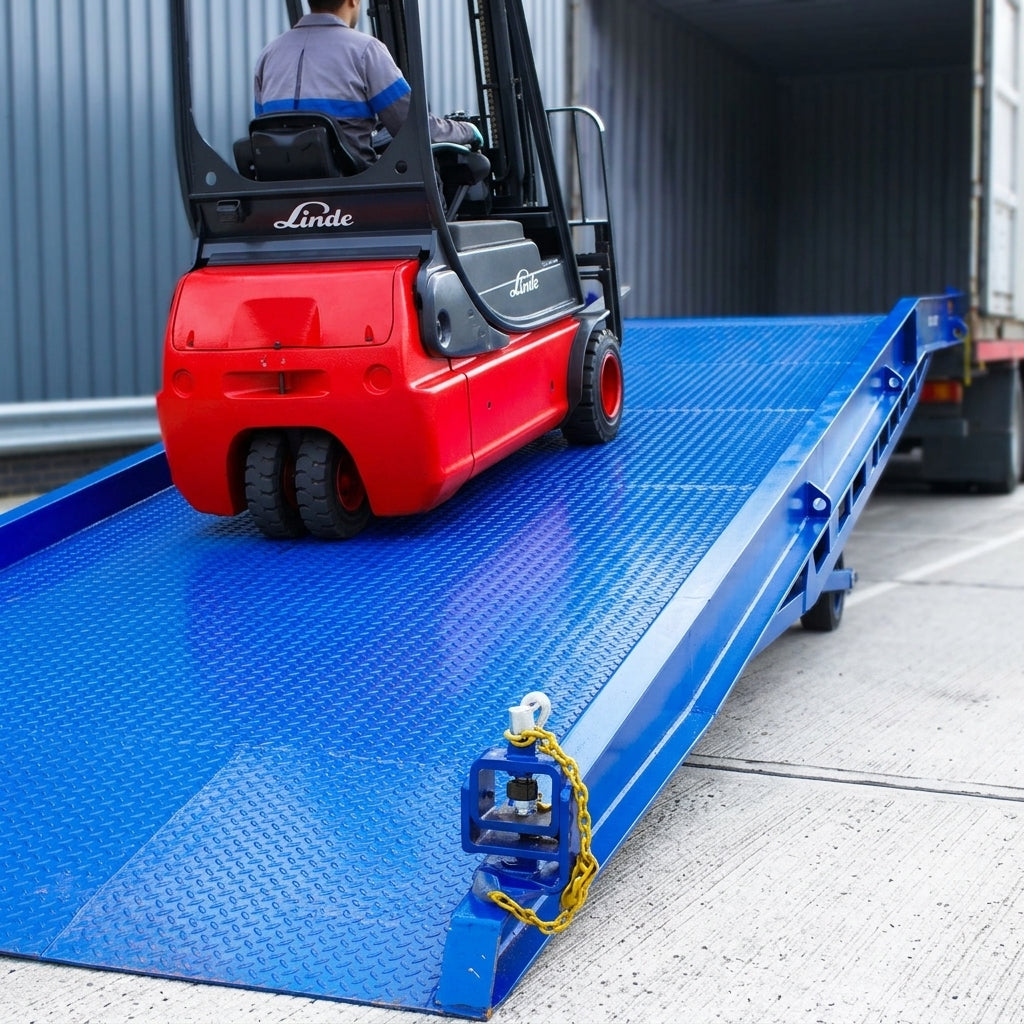

- Fixed swivel clamp lets a forklift move the ramp easily to where it is needed.
- Hydraulic assist adjusts the load height quickly and easily, from 800mm up to 1650mm.
- Side profiles made from a single piece of steel for top performance, durability and safety, on a reinforced steel undercarriage.
- High-traction mesh anti-slip surface.
- Fully certified and tested. Customisable, easy to fit, European made and can be left outside.
- Finished in black. One-year warranty.
Supplied With
- Swivel fork mount
- Steel chains and clamps
- Hydraulic assist
- Wheel chocks
Sizes & Capacity
- Length: 11260mm
- Outer width: 2460mm
- Usable (internal) width: 2260mm
- Ramp height: 800mm; maximum load height: 1650mm
- Weight: 4800kg
- Capacity: 13,000kg
Good to Know
- Handrails are available on request.
- The gradient is approximately 10%, which suits most forklifts; it varies with the height of the lorry.
- On-site training on using the ramp is available at an additional cost.
- Inspect the ramp regularly. An annual service is recommended to keep it safe and to comply with PUWER regulations.
- Pictures are for illustration only; the actual product may vary due to product improvements.
Load height checker
Measure straight up from the ground to where the ramps will rest on your vehicle or trailer.
