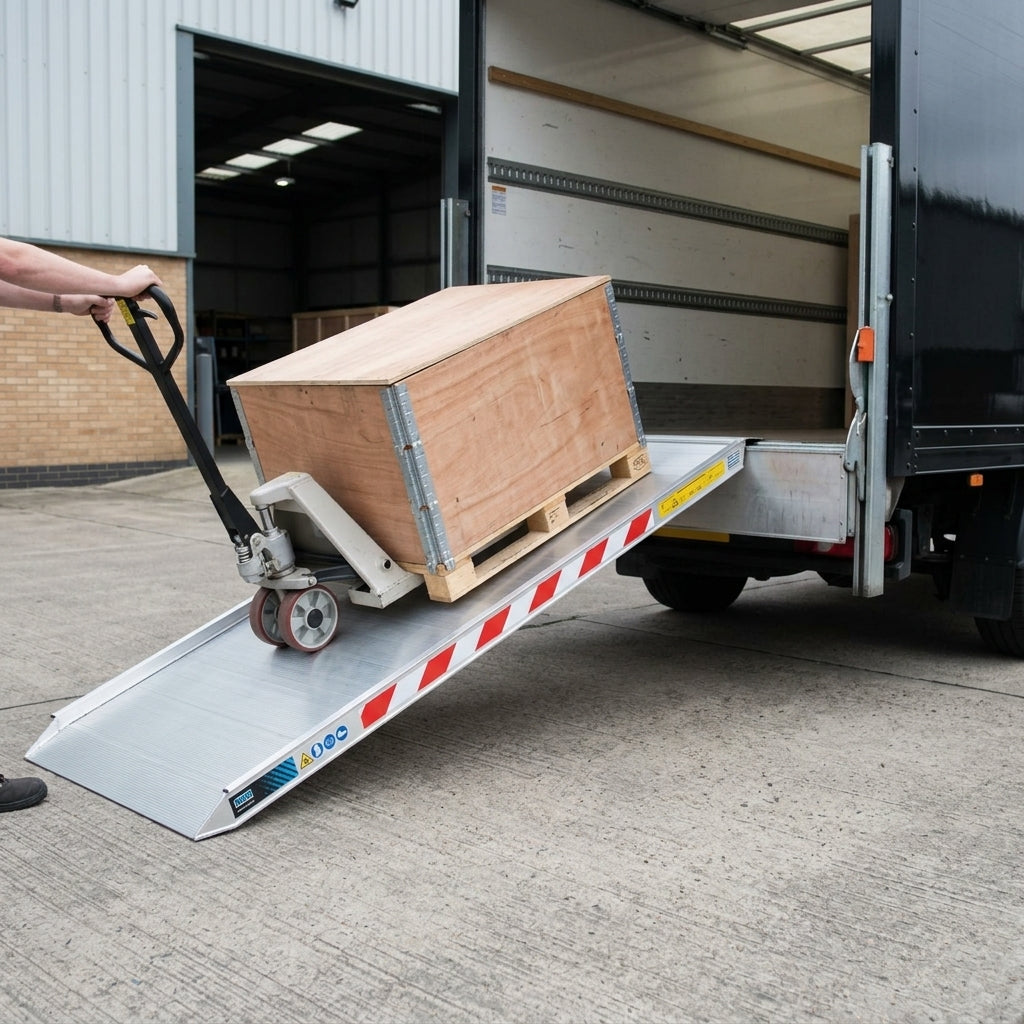

Premium Heavy Duty Aluminium Van Ramp 1000mm Wide – 1800mm to 3600mm Long, 1000kg TÜV Certified

A premium, single-piece aluminium heavy duty van loading ramp, 1000mm wide with a 1000kg capacity. Available in 1800mm, 2000mm, 2400mm, 2600mm, 3000mm and 3600mm lengths, it is ideally suited to loading flight cases.

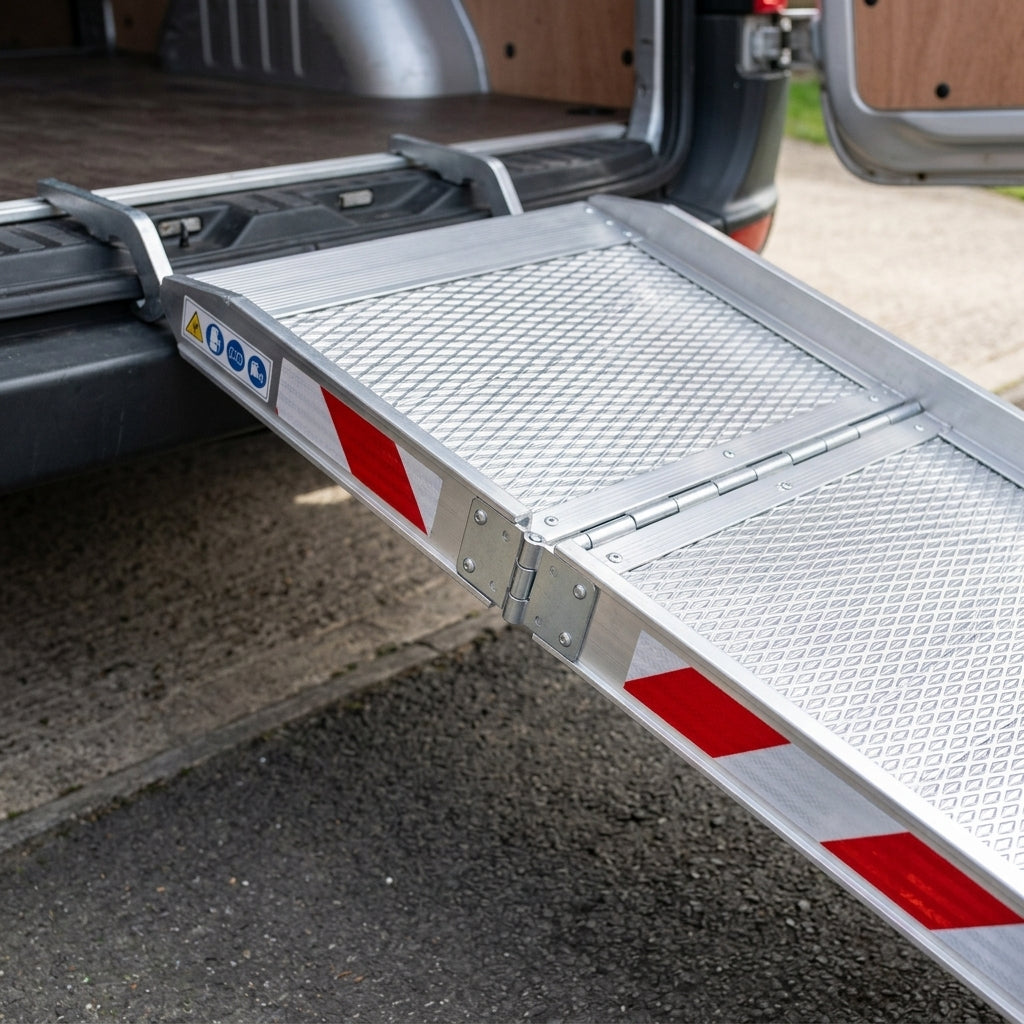

• Rest-on connection: just rest it in place and start loading; no vehicle or van modification needed.
• Optimised ramp weight helps the ramp stay connected to the van.
• Made from lightweight type 6005A aluminium for easy handling, and robot welded for a solid, strong and durable build.
• Fully TÜV certified to 1000kg as standard.
• Angled foot gives smooth access onto the ramp when using castors or wheels; the entry is slightly smoother than on the economy version.
• Edges on both sides stop items accidentally wheeling off (ramps without edges are also available).
• Extended connection terminal bridges most bumpers, crash bars and tow bars.
• Lies flat for easy storage when not in use.
• Not suitable for solid wheels.

• 1800mm L: load height 390mm to 540mm, 30mm raised edges, 65mm profile height, 27kg.
• 2000mm L: load height 450mm to 600mm, 29mm raised edges, 65mm profile height, 30kg.
• 2400mm L: load height 570mm to 720mm, 30mm raised edges, 85mm profile height, 37kg.
• 2600mm L: load height 630mm to 780mm, 30mm raised edges, 85mm profile height, 40kg.
• 3000mm L: load height 750mm to 900mm, 30mm raised edges, 100mm profile height, 46kg.
• 3600mm L: load height 900mm to 1050mm, 30mm raised edges, 115mm profile height, 56kg.
• All sizes: 1000mm external width, 940mm internal width, 1000kg capacity.

• Supplied with the rest-on connection as standard; four connection options are available in total, including a hook connection.
• Custom solutions available, including custom load heights, nylon grab handles and custom widths.

• European made. Easy to fit.
• One-year warranty.
