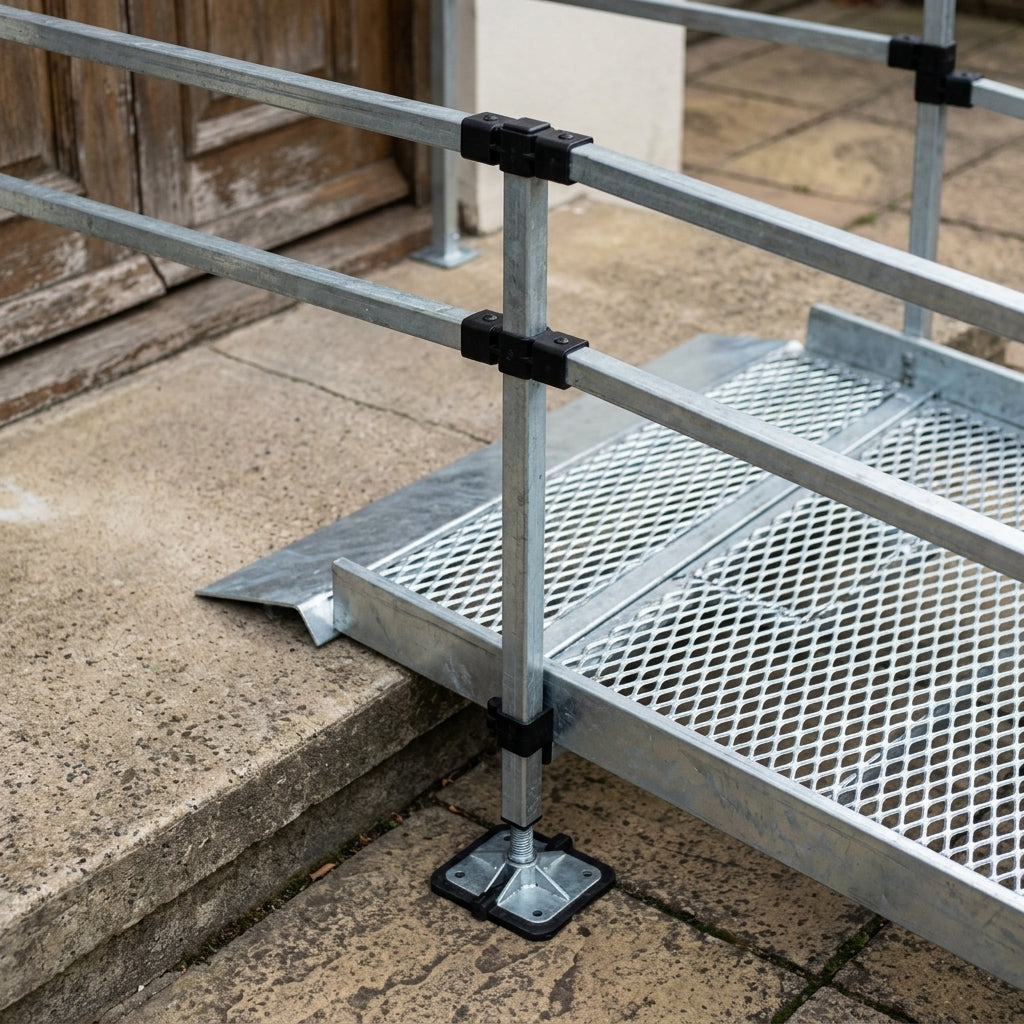

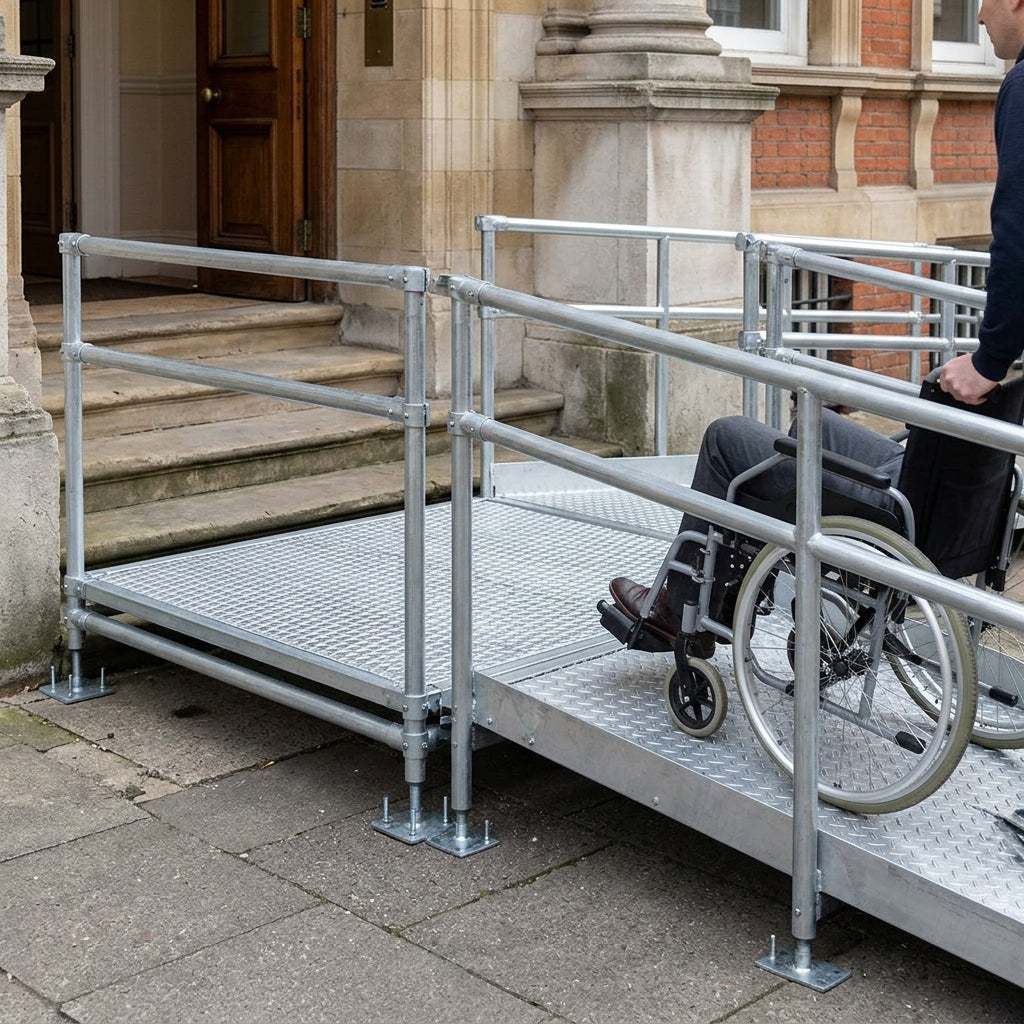

Galvanised Steel Modular Wheelchair Ramp Kit 1500mm Wide – 1000mm to 10000mm Long, Handrails & Turning Platform

A 1.5m-wide modular steel ramp kit that improves access to homes, businesses and other buildings. It can be configured to suit your space and access needs, giving a smooth transition from ground level into the property. The turning platform lets wheelchair users change direction safely when entering and leaving, while the pair of handrails gives support to people walking up and down, including those using walking aids. Each kit includes a lead-in ramp, the main ramp section, a square turning platform, a connection to the step or threshold, and double handrails.

• Expanded metal mesh surface with a DIN 51130 anti-slip rating. The high-traction mesh drains water quickly, so it is safe in all weathers, including wet or icy conditions.
• Suitable for pedestrians, manual and electric wheelchairs, mobility scooters and walkers.
• Durable steel, rated to 200kg per square metre.
• Built-in safety edges help keep users on the ramp.
• Double handrails (900mm high) for stability and security. Balustrade double handrails are also available; they are especially useful where children use the ramp, as they reduce the risk of falls, so they are often chosen for schools, nurseries and public events.
• 1500mm x 1500mm turning platform so users can easily turn left or right onto the ramp.
• Connection to step/threshold: 250mm deep x 1500mm long, and can be ordered cut to size.
• Lead-in ramp: 300mm x 1300mm long.
• 1500mm total width, with a 1400mm internal width.
• Hot-dip galvanised for a virtually maintenance-free ramp. Can be left outside.
• Suitable for homes, schools, businesses, offices and more.
• No building changes needed: it creates an accessible entrance without permanent alterations.
• Meets TIL2 requirements (inspected and verified by a TIL2-certified expert for standards and usability for people with reduced mobility) and the Eurocodes European standards for the design of buildings, civil engineering works and construction products.
• Manufactured in accordance with ISO 9001 and ISO 14001.
• Made in Sweden. Fixings included. Supplied as a kit; assembly required.
• Two-year warranty.

• Take it apart when needed, for example for temporary access at an event, when leaving a rented property, or during building work and maintenance.
• Assembly usually takes at least half a day, so the ramp is generally meant to stay in place for weeks, months or years. For occasional or one-day use, a folding ramp or a ramp kit with handrails may be more practical.
• Extra parts can be bought later to extend or reconfigure the ramp, for example if you move home or change your driveway or garden. Replacement parts are available if any component is damaged.
• Customisation available, including side steps, an extra platform, U-shaped handrails at the end of the ramp, contrast markers for people with impaired vision, longer ramp lengths and alternative ground connections.

• Measure the vertical height you need to rise, then multiply it by the gradient to find the approximate ramp length. These steel ramps are recommended at a 1:12 gradient and can be built up to a maximum of 1:10 where space is limited.
• Regulations: because the ramp is portable and temporary, it does not need to meet Part M or Part K building regulations. A compliant specification can be provided on request.
