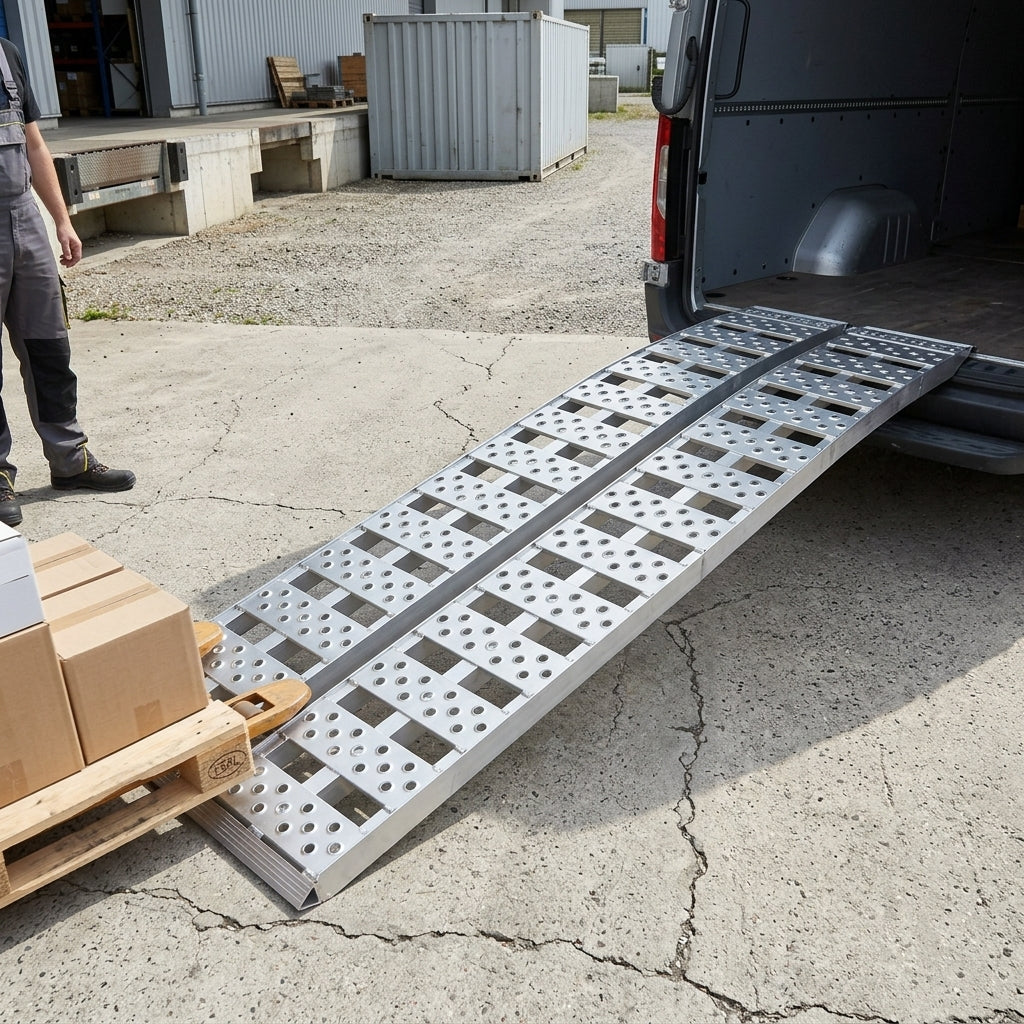

Curved Aluminium Loading Ramps (Pair) 2330mm or 3000mm L – 305mm W, 1000kg Capacity

A pair of lightweight aluminium loading ramps for lawnmowers, ATVs and quad bikes, dirt bikes and other wheeled garden machinery, into vans and over steps. Use one ramp on its own for motorcycles, scooters and other two-wheeled machines. Available in 2330mm and 3000mm lengths, the pair carries 1000kg (price and capacity are for the pair). A dynamic foot end lets each pair work at a range of load heights.

• Curved ramps for improved ground clearance and easier loading.
• No installation: rest the ramps on your vehicle or step and start loading. The rest-on connection suits flat-bed vehicles and tipper trucks, including transit vans.

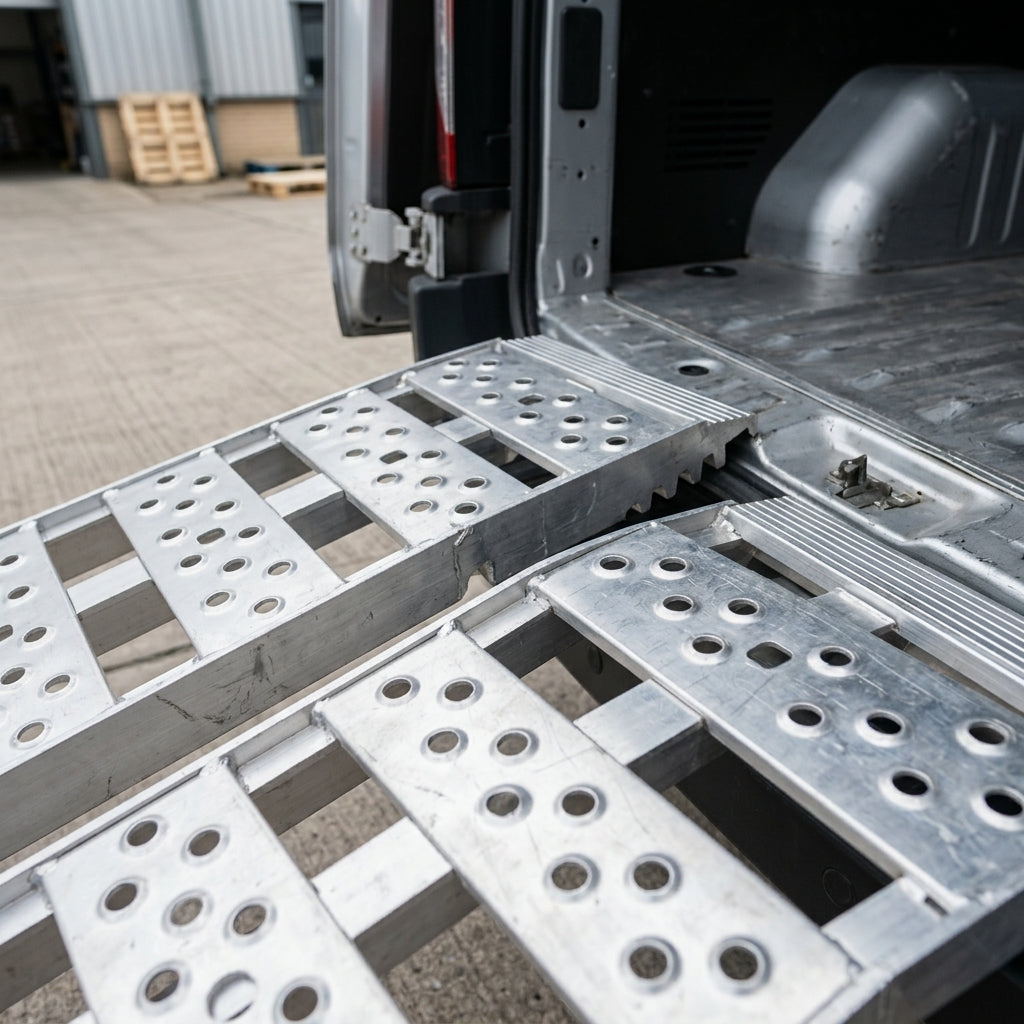

• Angled foot rests securely on the ground for smooth entry and extra stability; the foot, ramp angle and weight keep the ramps in place while loading.
• Flat top with no edges for greater flexibility of use.
• Anti-slip surface for optimum grip, with gaps so dirt passes through.
• Lightweight and portable: each ramp weighs 7.1kg to 10kg depending on length, so it is easy to lift, move and store.
• 305mm overall width, 280mm internal width, 65mm profile height.
• Colour: black. One-year warranty.

• Measure your load height – the vertical height from the ground to where the ramps will rest on your vehicle.
• 2330mm ramps: for load heights between 555mm and 699mm.
• 3000mm ramps: for load heights between 700mm and 850mm.
• Maximum load heights are based on a maximum gradient of 30%, in line with EU guidelines.
• For longer lengths and higher capacities, aluminium plant ramps are available in lengths up to 5.5m and capacities up to 58,000kg.

• Designed for domestic use only.
• Not suitable for cars or tracked machinery such as diggers, dumper trucks and similar.
• Pictures are for illustration only; the product may vary slightly due to product improvements.
