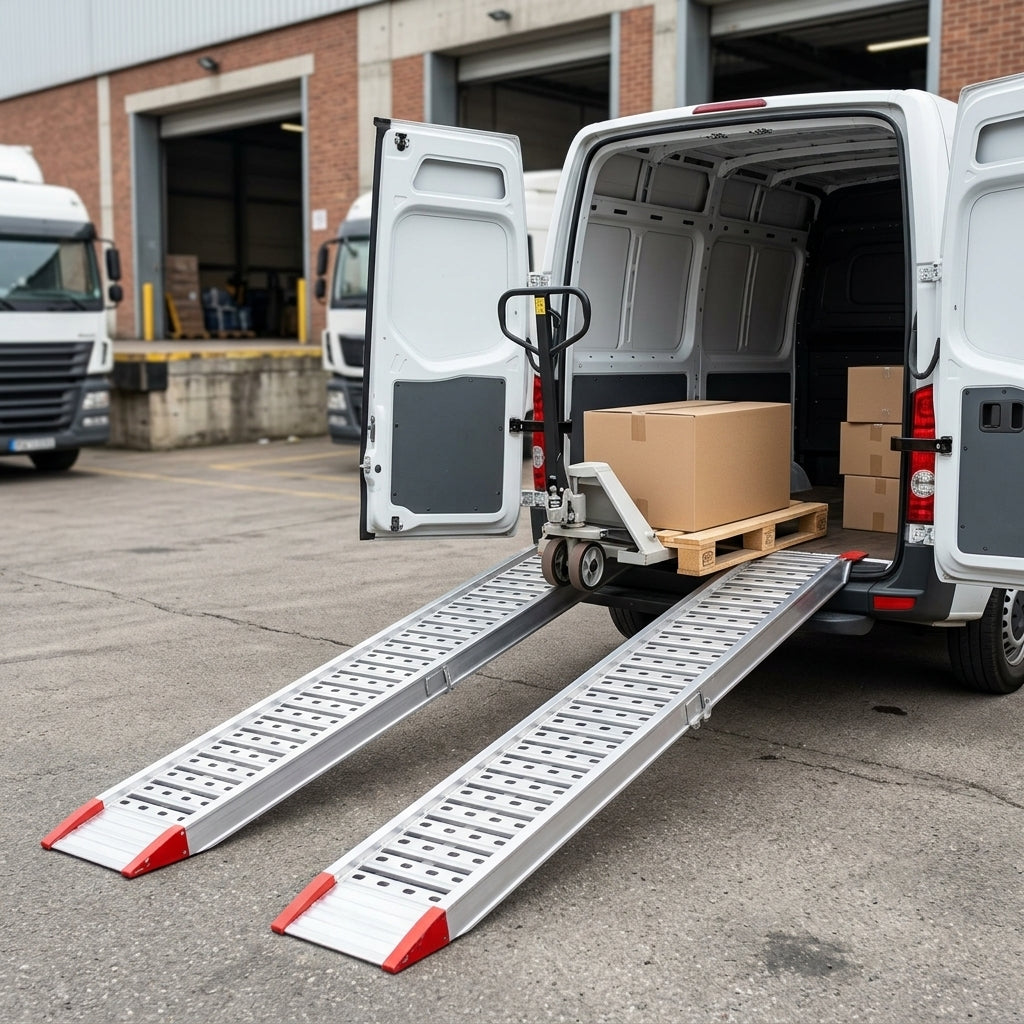

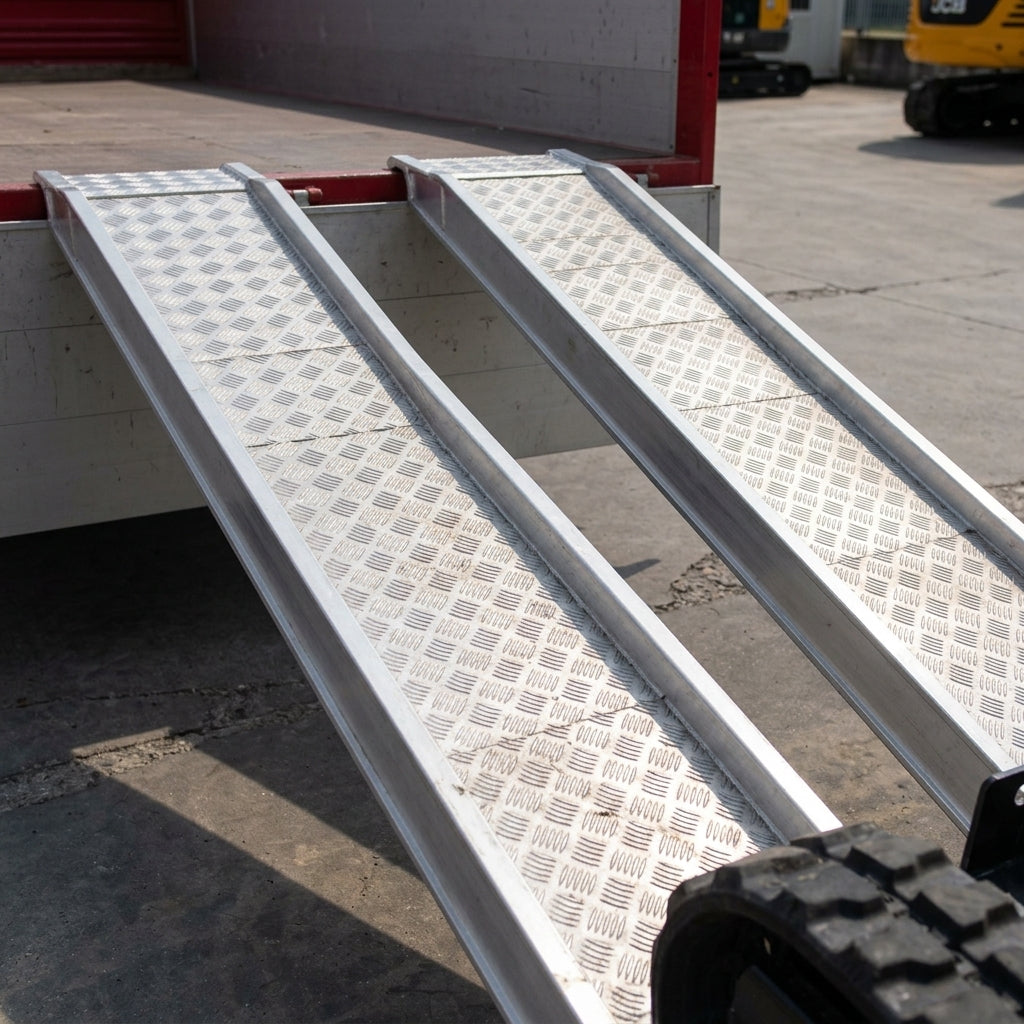

Lightweight Aluminium Plant Loading Ramps (Pair) – 2000mm L x 300mm W x 65mm Thick, 2700kg Capacity

A pair of lightweight, premium aluminium loading ramps, 2000mm long x 300mm wide, with a 2,700kg capacity across the pair. Ideal as car ramps or lightweight plant ramps, they safely load plant machinery onto low-bed trailers, into vans and over steps. Designed for vehicles with rubber tracks or rubber wheels, they suit diggers, mini diggers, mini excavators, dumper trucks, ride-on mowers, cars and similar, and are popular on construction sites and with landscape gardeners, the agricultural sector, utility contractors and plant hire companies.

• Capacity and price are for the pair. If you only need a single ramp, ask us for a quote.
• Only 65mm thick and 300mm wide, with a minimum track or wheel width of 150mm (maximum 220mm).
• Designed for loading at lower heights between 450mm and 600mm and a maximum gradient of 30%.
• High-traction surface for optimum grip while loading.
• Angled foot, precision cut for the recommended load height, so the ramps rest securely on the ground and give a smooth entry onto the ramp.
• Lightweight and portable – each ramp weighs only 11kg, so it is easy to lift into position.
• Heavy-duty, non-folding design – folding ramps are not suitable for safely loading heavy plant, given the capacities required.
• Fully TÜV certified and manufactured in Italy, ideal for commercial environments.
• Two-year warranty.

• Supplied as standard with a curved rest-on connection with a pre-drilled hole and a pin to secure the ramps to your vehicle, plus plates for extra security – a popular choice for flatbed and tipper trucks. For trailers such as beaver tail trailers, a hook connection is normally recommended.
• Four connection options are available; if you need an alternative, such as a hook connection, just let us know after you order.
• The curved connection, angled foot, the ramp's own weight and its gradient all help hold it firmly in place for a seamless transition from the ground.
• Supplied without edges as standard for greater flexibility; edges are available on request.

• Bespoke solutions are available, including custom lengths and widths, edges and carry handles, and custom load heights. Quotes for bespoke ramps can be provided on request.
• For low-clearance items, the foot can be cut to give a smoother gradient, and a CAD simulation can be carried out to check suitability with your machine.

• Measure the vertical height from the ground to where the ramp will rest on your vehicle – your load height – and check it falls within the range in the details below. If you are unsure or have a low-clearance vehicle, ask us before ordering.
• For low-clearance cars, car ramps with a smoother gradient are recommended instead.
• Not suitable for solid wheels, such as those on road surfacing machines – steel-track industrial ramps are the right choice for that type of machinery.
• The stated maximum capacities only apply to vehicles whose weight is evenly distributed. For vehicles where this is not the case, please ask us for advice before ordering.
• Capacity depends on wheelbase: 2,000kg at 1000mm, 2,660kg at 1250mm and 2,700kg at 1500mm.
• Images are for illustration only; the actual product may vary slightly due to product improvements.
