Non-Folding Aluminium Loading Ramps (Pair) – 2000mm L x 315mm W, 4500kg Capacity, 450–600mm Load Height

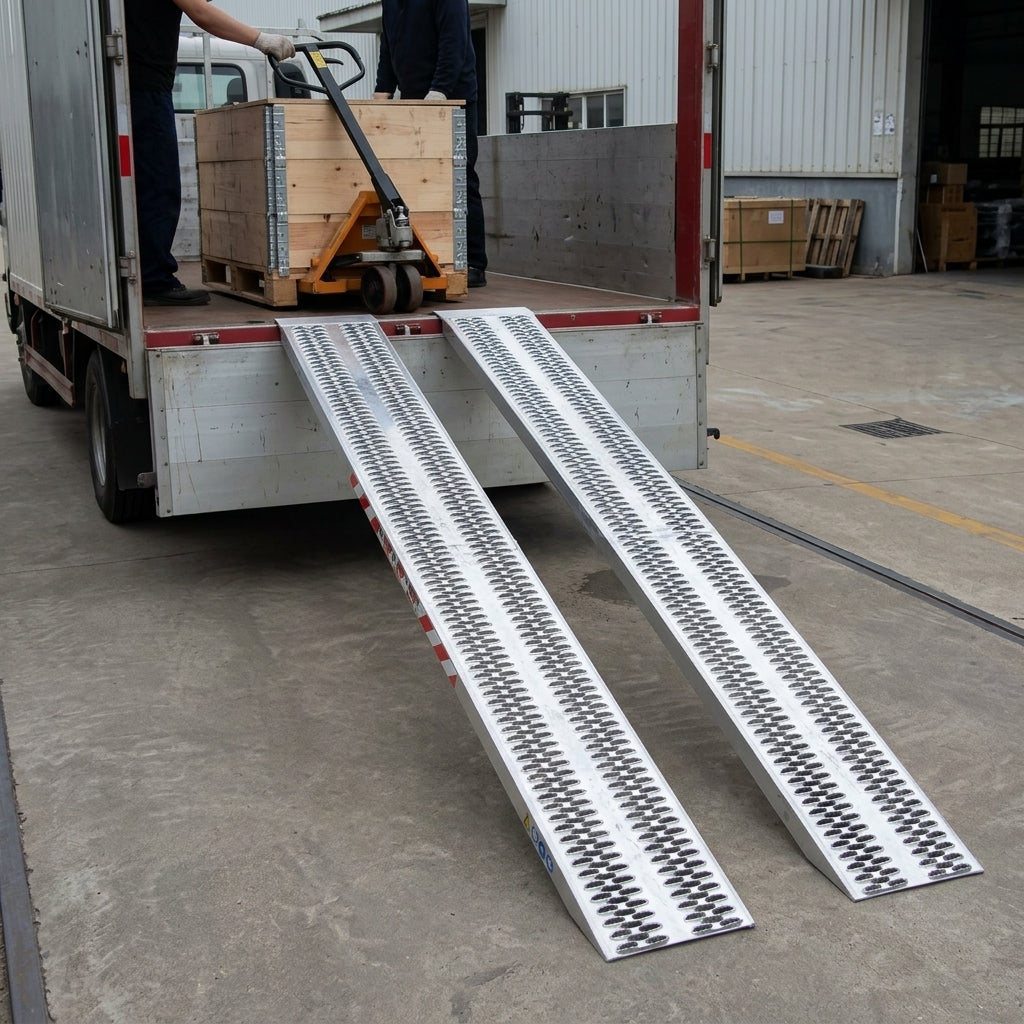

A pair of heavy-duty, straight one-piece aluminium loading ramps, each 2000mm long x 315mm wide, for professional use or more frequent use than domestic ramps. With a capacity of up to 4,500kg across the pair, they are ideal for small plant and wheeled machinery, loading over steps and into vans or trailers. Made in Italy and TÜV certified, they are a durable, safe choice for commercial environments.

• Single-piece design with zero welding – strong while staying compact.
• Made from lightweight aircraft-grade aluminium (type 6005A), durable and lighter than steel, so easy to handle.
• Each ramp weighs only 14.5kg (29kg per pair), so it is easy to lift and move into position.
• Ramp profile height of just 70mm; the ramps lie flat for easy storage in the van or trailer.
• Flat-top design with no edges for greater flexibility of use.
• Suits track widths from 150mm to 295mm.

• High-traction grip surface with R13 slip resistance (DGUV 108-003). Large holes and cut-out grooves let dirt drop through for the best grip.

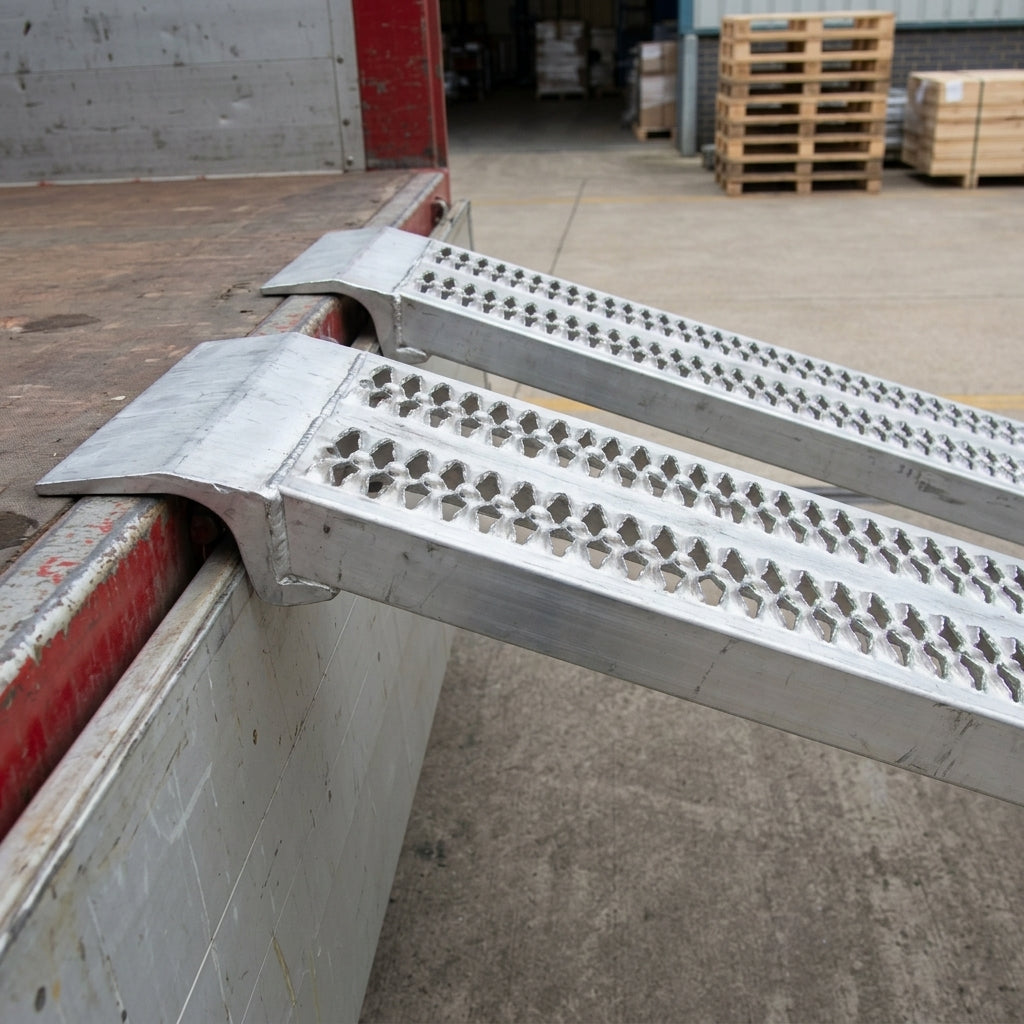

• Curved rest-on connection with a pre-drilled hole and pin to secure the ramps to your vehicle during loading.
• Angled foot, precision cut for the recommended load height, keeps the ramp on the ground and gives smooth entry for wheeled vehicles. The weight and gradient of the ramps help hold them firmly in place.
• The grip surface is very aggressive: make sure your tyres have enough tread to avoid damage.
• Wear gloves when handling these ramps, as the surface is sharp.
• TÜV certified to safely support the stated maximum capacity.

• Rated capacity of 4,500kg per pair: 3,300kg at 1000mm wheelbase, 3,900kg at 1250mm wheelbase, 4,500kg at 1500mm wheelbase.
• Price and capacity are for the pair.
• Designed for load heights between 450mm and 600mm.
• To choose the right length, measure the vertical height from the ground to the point where the ramp will rest on your vehicle (your load height).

• The default is the rest-on connection, designed for flat-bed vehicles.
• Four connection options are available in total. If you need an alternative, such as a hook connection, let us know after you order.
• Customised ramps can be quoted. Please provide your load height, details of what you are loading and its maximum weight, and for low-clearance machines the vehicle data sheet.

• Made in Europe (Italy). Easy to fit.
• Two-year warranty.
• Images are for illustration only; the actual product may vary due to product improvements.
