Folding Aluminium Mesh Motorbike Ramp 2260mm L x 285mm W – 340kg Per Ramp, Single or Pair
£196.80
incl. VAT
Not sure it suits your bike?
Send us your load height and bike weight — we'll confirm the right ramp before you order.
Overview
A folding aluminium motorbike ramp with a mesh surface for excellent grip while loading. This lightweight ramp has a 340kg capacity: use one on its own to load a motorbike into a van, or a pair to load quad bikes, ATVs and ride-on mowers. It is designed for load heights between 530mm and 678mm, making it ideal for vans and trailers, and can also be used to get a motorbike over steps.
Specifications
| Quantity | Single – 2260mm L x 285mm W |
|---|---|
| Height of Ramp Profile (mm) | 50 |
| Length (mm) | 2260 |
| Width (mm) | 285 |
| Minimum Tyre Width (mm) | 100 |
| Capacity (kg) | 340 |
| Max Load Height (mm) | 678 |
| Min. Load Height (mm) | 530 |
| Weight (kg) | 6.4 - 12.8 |
| One Year Warranty | Yes |
| Easy to Fit | Yes |
| Not Solid Wheels | Yes |
| Leave Outside | Yes |
| Colour Options | Black |
Features
- 2260mm long x 285mm wide, weighing just 6.4kg per ramp – easy to lift, carry and store.
- 340kg capacity per ramp, or 680kg across a pair.
- Folds to half its length for storage and transport – ideal for keeping in the van or a cupboard at home.
- No installation – rest the ramp on your van or trailer, secure it with the supplied safety strap and start loading.
- Mesh surface gives strong traction and lets dirt and debris fall through.
- Angled foot, cut for the recommended load height, keeps the ramp firmly on the ground and gives a smooth entry and an ideal loading gradient.
- Curved (arched) profile for better ground clearance during loading.

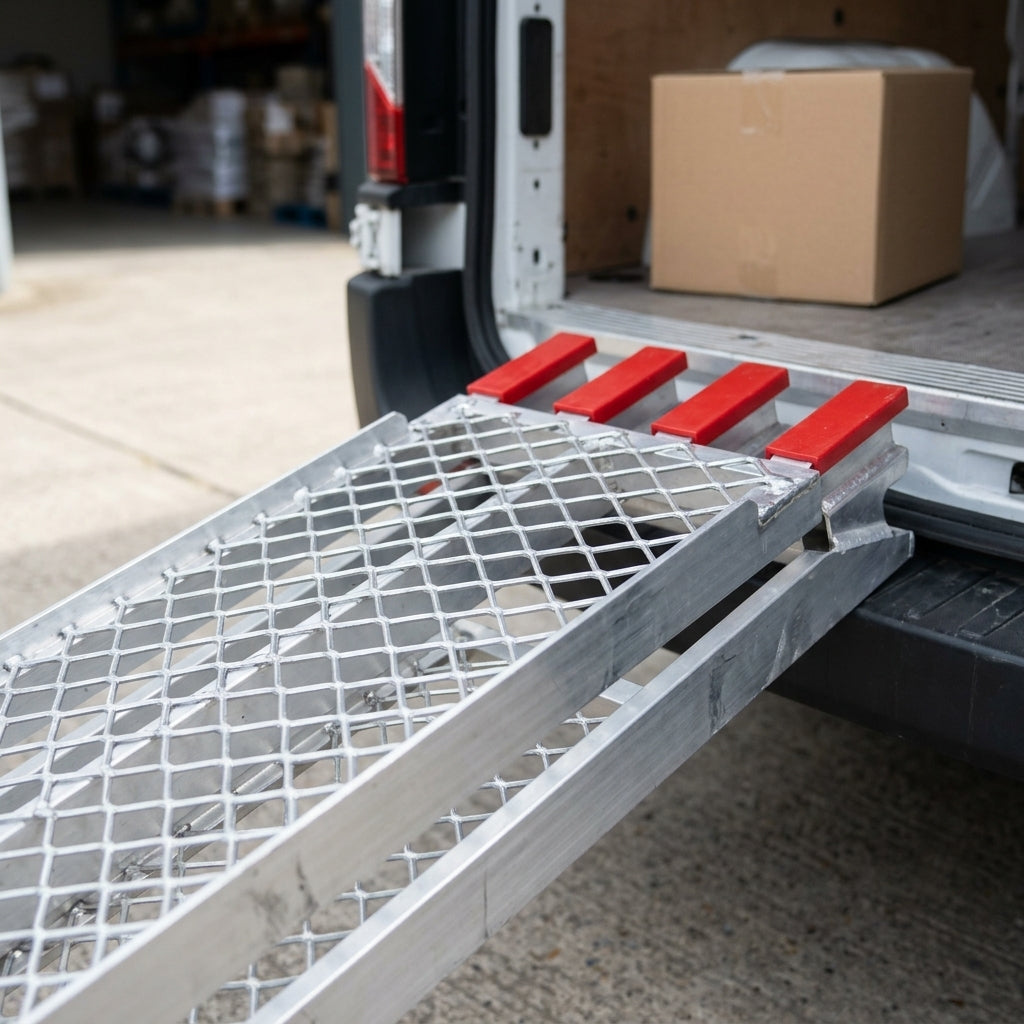

- Coated rest-on connection keeps the ramp in place on the vehicle and protects it from scratches and damage.
- Minimum tyre width 100mm.
- Can be left outside. One-year warranty.
Choosing the Right Ramp
- Measure the vertical height from the ground to where the ramp will rest – this is your load height. If it is above 678mm, you need a longer ramp.
- The ramp stays securely in place thanks to the angled foot, curved rest-on connection, ramp angle and the supplied safety strap.
Not Suitable For
- Single-axle or tracked machinery or vehicles, including machinery on rubber tracks.
- Cars and plant machinery.
- Castor wheels or solid wheels.
- Industrial or professional use – these ramps are for domestic use only. For professional loading, choose a heavy-duty loading ramp instead.
Load height checker
Measure straight up from the ground to where the ramps will rest on your vehicle or trailer.
