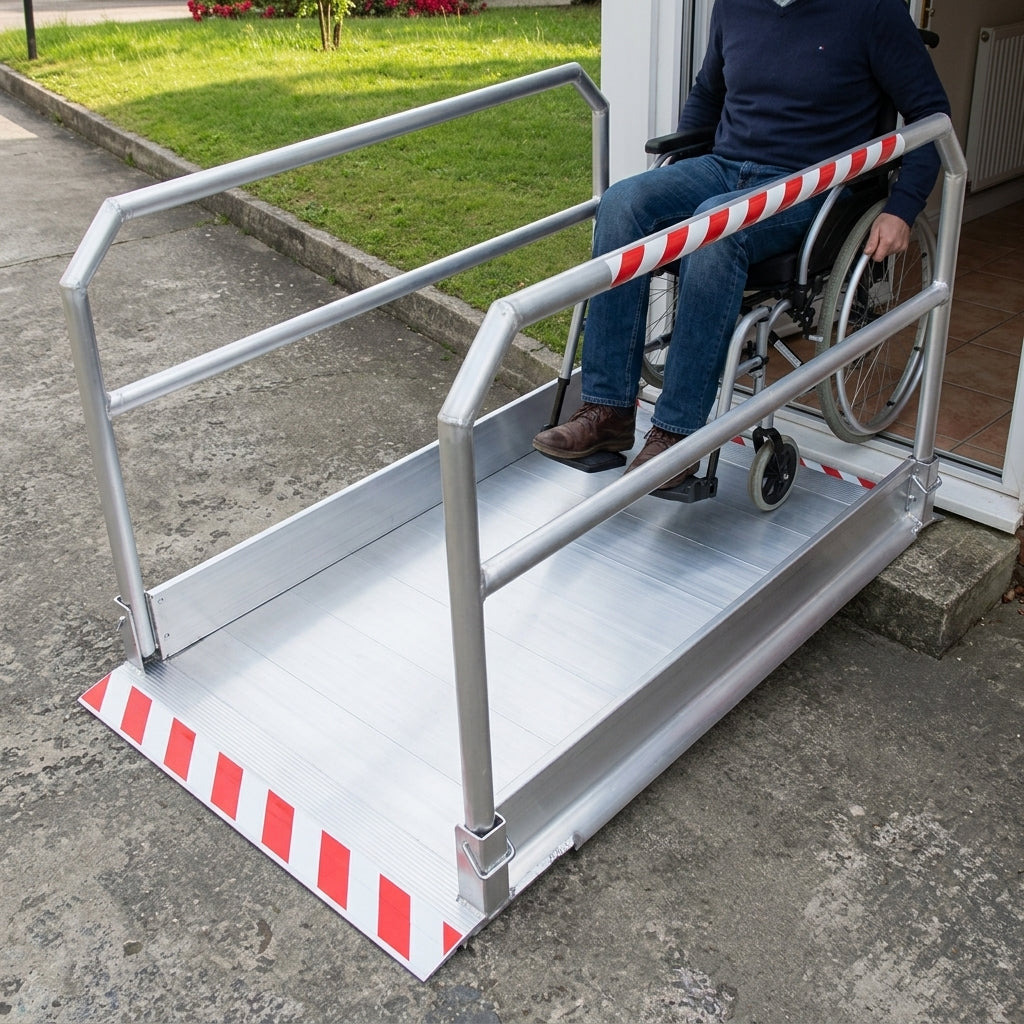

Pedestrian Ramp with Folding Handrails – 2390mm L x 1000mm Internal W, 400kg/m²

An aluminium pedestrian ramp with handrails, 2390mm long with a 1000mm usable (internal) width and a maximum capacity of 400kg per square metre. It is made to overcome height differences in all kinds of settings, from private homes to public spaces, and simply rests in place ready to use.

• Rest-on connection - just position the ramp and start using it.
• The foot end suits a range of heights up to 190mm.
• Helps pedestrians and wheelchair users overcome architectural barriers such as steps, thresholds and kerbs, in private or public settings.
• Non-slip walking surface with R12 slip resistance.
• Ergonomic handrails 1018mm high that fold down for storage and transport.

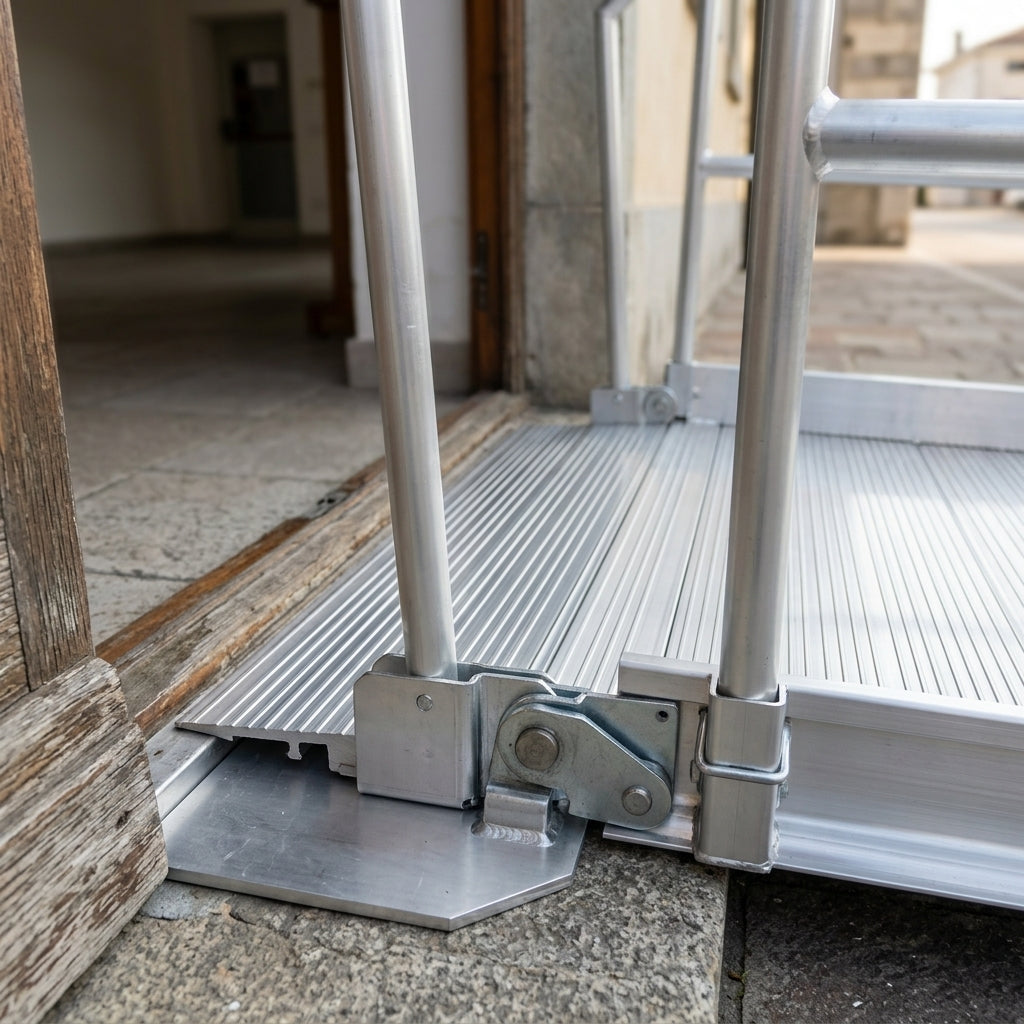

• The curved rest-on connection has a pre-drilled hole so it can be secured to the step or kerb.
• The angled foot sits securely on the ground, and the ramp's weight and gradient help keep it firmly in place.

• Length 2390mm, internal width 1000mm, external width 1105mm, overall height 1055mm.
• Weight 62kg. Finished in black.
• Built to order. Can be left outside. Easy to fit, with a two-year warranty.

• Used at a smooth gradient, the R12 slip-resistant surface makes the ramp suitable for mobility aids including wheelchairs and walkers.
• For safety, do not exceed a maximum gradient of 8%.
