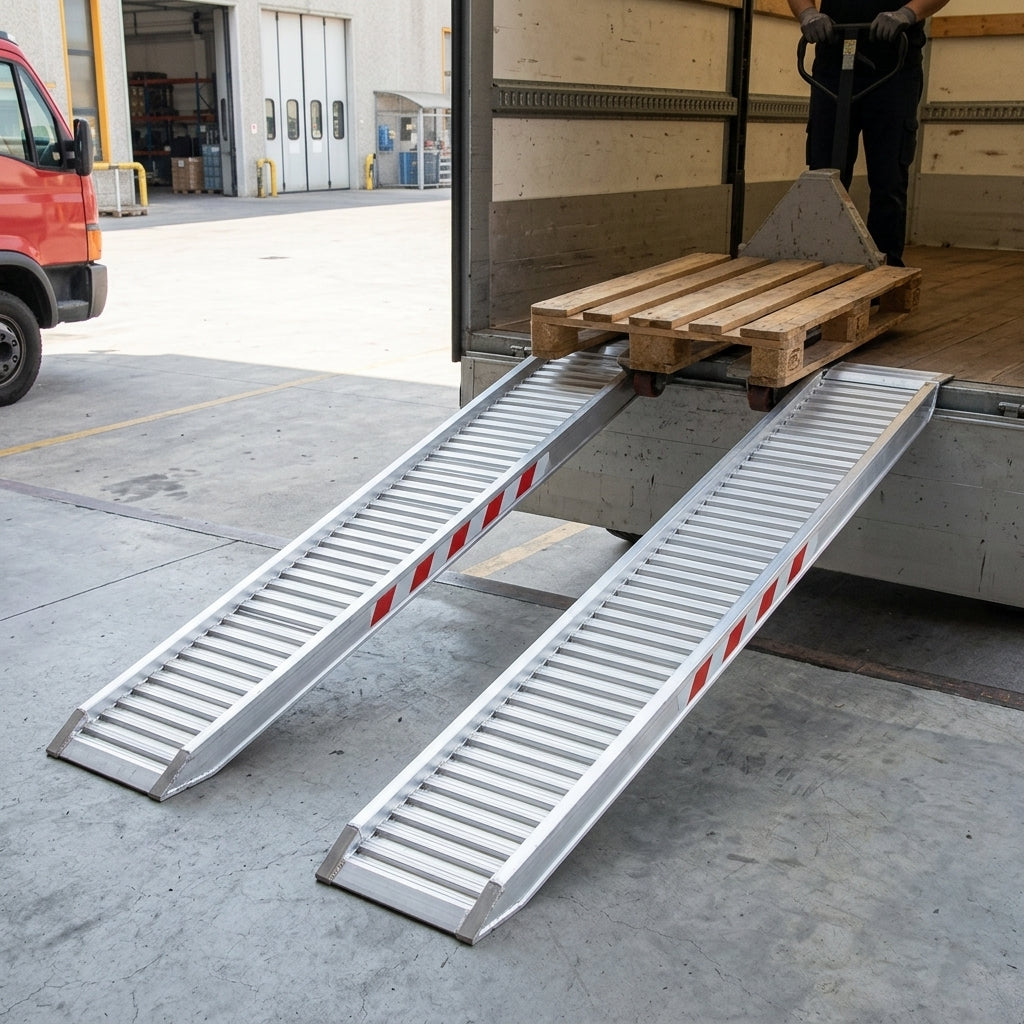

Lightweight Aluminium Plant Loading Ramps (Pair) – 3000mm L x 300mm W x 65mm Thick, 1330kg Capacity

Load lightweight plant machinery onto trailers, into vans and over steps with this pair of slim aluminium loading ramps, 3000mm long, 300mm wide and only 65mm thick. Rated to 1330kg across the pair, they are designed for machines on rubber tracks or rubber wheels, such as mini diggers, mini excavators, dumper trucks and ride-on mowers. They are widely used on construction sites, by landscape gardeners, in agriculture, by utility contractors and by plant hire companies.

• Track/wheel width: minimum 150mm, maximum 220mm.
• Capacity by wheelbase: 1000mm wheelbase – 1000kg; 1250mm wheelbase – 1140kg; 1500mm wheelbase – 1330kg.
• Safely loads to heights between 750mm and 900mm.

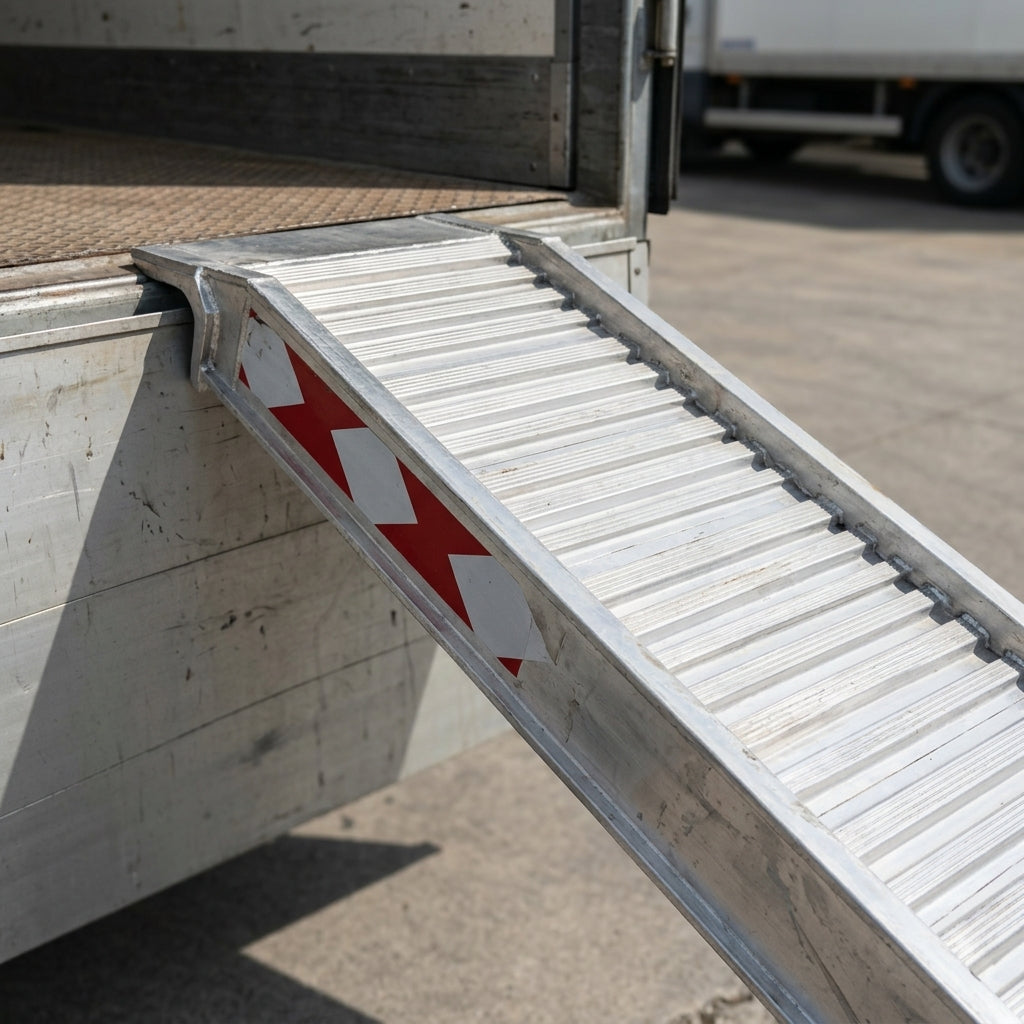

• Four connection options are available. As standard the ramps use a curved rest-on connection with a pre-drilled hole, supplied with a pin and plates to secure them to your vehicle – a popular choice for flatbed vehicles and tipper trucks. For beaver-tail trailers a hook connection is normally recommended. If you need an alternative connection, just let us know after ordering.
• The angled foot is precision cut for the recommended load height, giving a smooth, seamless transition from ground level, and keeps the ramp planted while the ramp's weight and gradient hold it in place.
• High-traction surface designed for optimum grip during loading.
• Supplied without side edges as standard for greater flexibility; a version with edges is available on request.
• Custom load heights are available.
• Bespoke ramps, including alternative lengths and widths, can be quoted on request.

• Supplied as a pair; each ramp weighs only 16kg, so one person can lift and move it safely.
• Heavy-duty, non-folding design – folding ramps are not suitable for the high capacities needed for plant machinery.
• Lies flat for storage, and the low 65mm profile makes it easy to store in a van or trailer.

• Designed for a maximum gradient of 30%.
• Not suitable for solid wheels, such as those on road surfacing machines; steel-tracked machinery of this type needs a dedicated industrial ramp.
• The stated maximum capacities only apply to vehicles whose weight is evenly distributed; if your vehicle's weight is not evenly spread, please check with us before ordering.
• Premium ramps manufactured in Italy (Europe). Fully TÜV certified.
• Two-year warranty.

• Load height: measure the vertical height from the ground to where the ramp will rest on your vehicle. Use the ramps only within the minimum and maximum load height shown below.
• For loading cars with low clearance, a car ramp with a smoother gradient is recommended instead.
• For machines or vehicles with low clearance, please ask us to check suitability before ordering.
• Single ramps can be quoted on request.

• Pictures are for illustration only; the actual product may vary slightly due to product improvements.
