Aluminium Loading Ramps (Pair) – 3500mm L x 580mm W, 14000kg Capacity

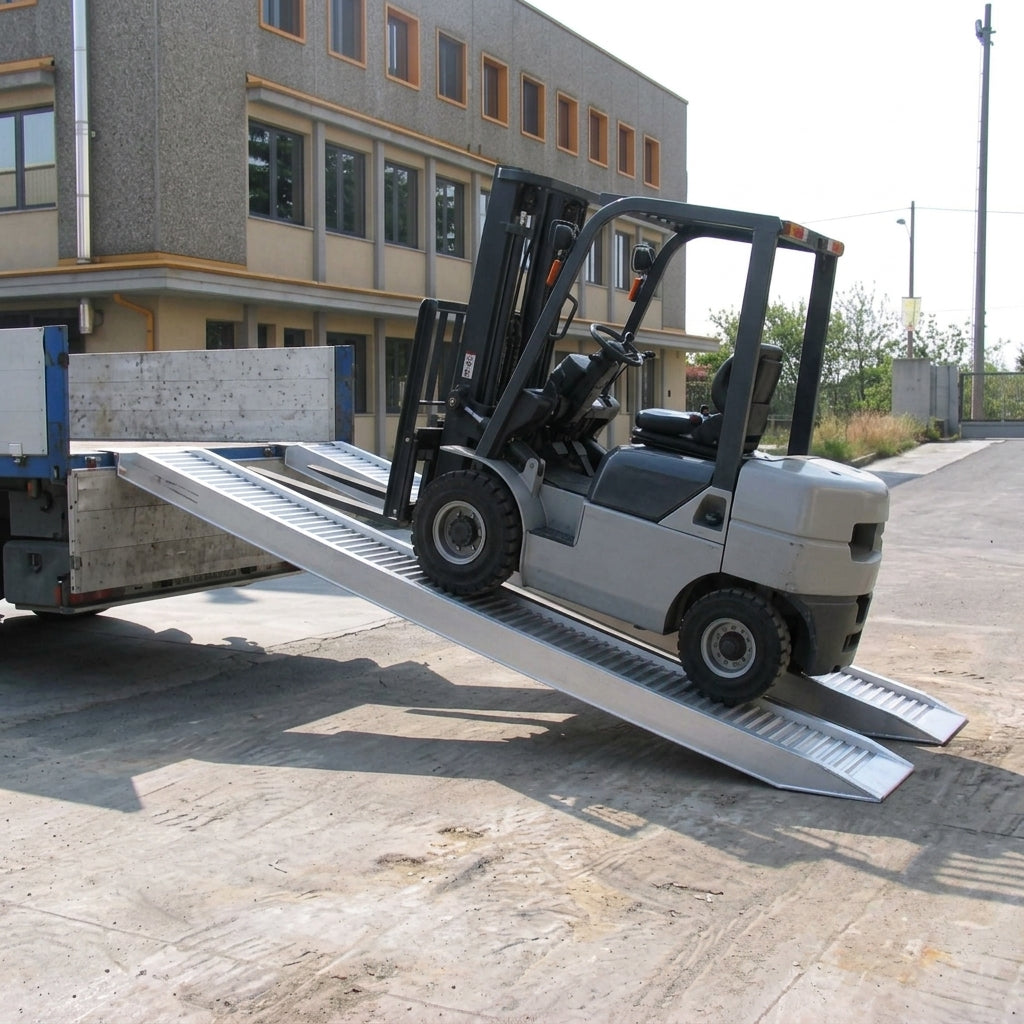

One of the heaviest duty ramps available, over half a metre wide, supplied as a pair of aluminium loading ramps for industrial plant machinery and heavy duty commercial loading. Each ramp is 3500mm long and 580mm wide with a 200mm profile thickness, and the pair is rated to a maximum of 14,000kg. The price and the stated capacity are both for the pair.

• Supplied without edges as standard; a version with edges is also available.
• Custom load heights and custom-built sizes are available, with quotes for bespoke ramps on request.
• Fully TÜV certified.
• European made and easy to fit.
• Two-year warranty.

• Size per ramp: 3500mm L x 580mm W x 200mm profile thickness.
• Track/wheel width: minimum 300mm, maximum 480mm.
• Capacity by wheelbase (pair): 8,500kg at a 1000mm wheelbase, 10,620kg at a 1500mm wheelbase, 14,000kg at a 2000mm wheelbase.
• Weight: 70.5kg per ramp (141kg per pair).
• The maximum capacities only apply to vehicles whose weight is evenly distributed; if your vehicle is not, please ask us for advice before buying.

• Load height range: 900mm to 1050mm (measured vertically from the ground to the point where the ramp rests on the vehicle).

• Four connection options are available, with the rest-on connection as the default.

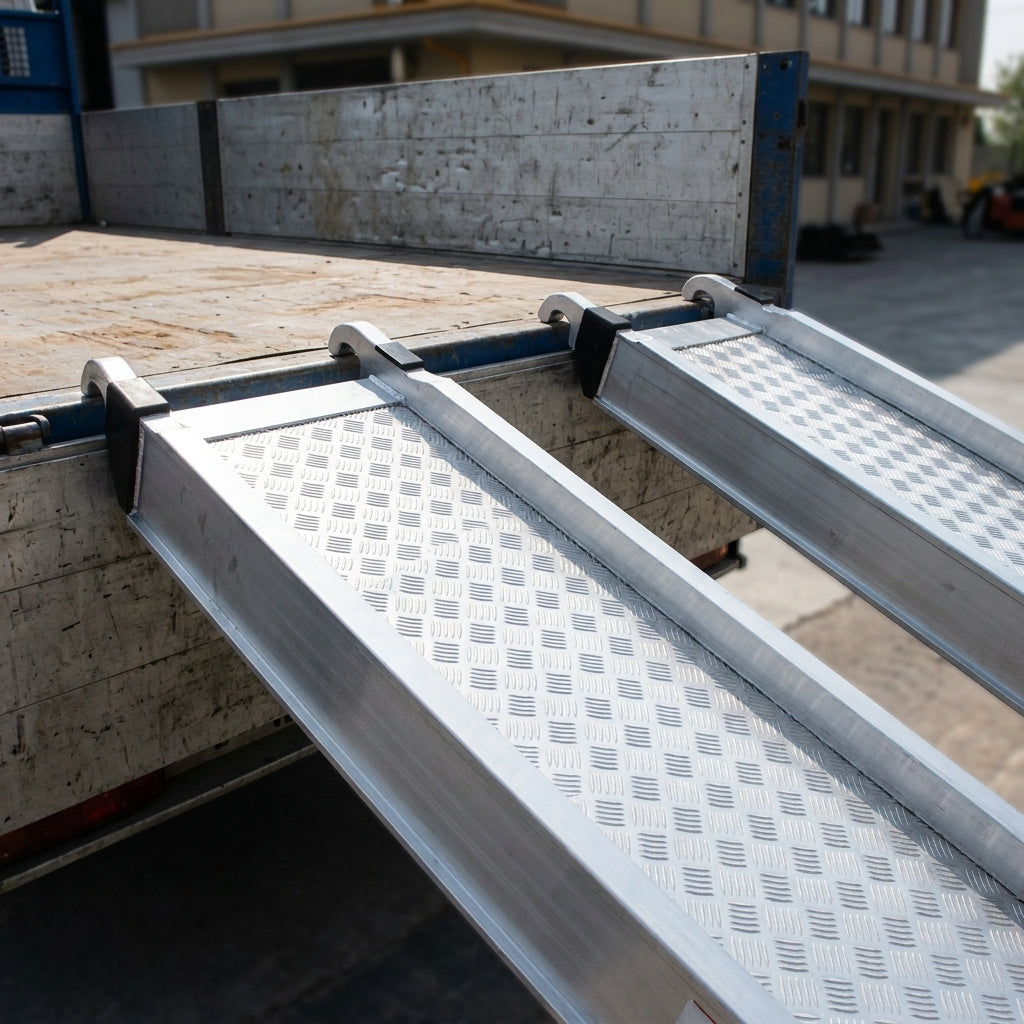

• The standard curved rest-on connection has a pre-drilled hole for securing the ramp to the vehicle. The angled foot keeps the ramp on the ground, while the ramp’s own weight and the gradient hold it firmly in place.
• If you need a different connection, such as a hook, just let us know after placing your order.

• Not suitable for solid wheels, such as those on road surfacing machines; a dedicated industrial ramp for steel tracks is needed for that type of machinery.
• Images are for illustration only; the actual product may vary slightly due to product improvements.
