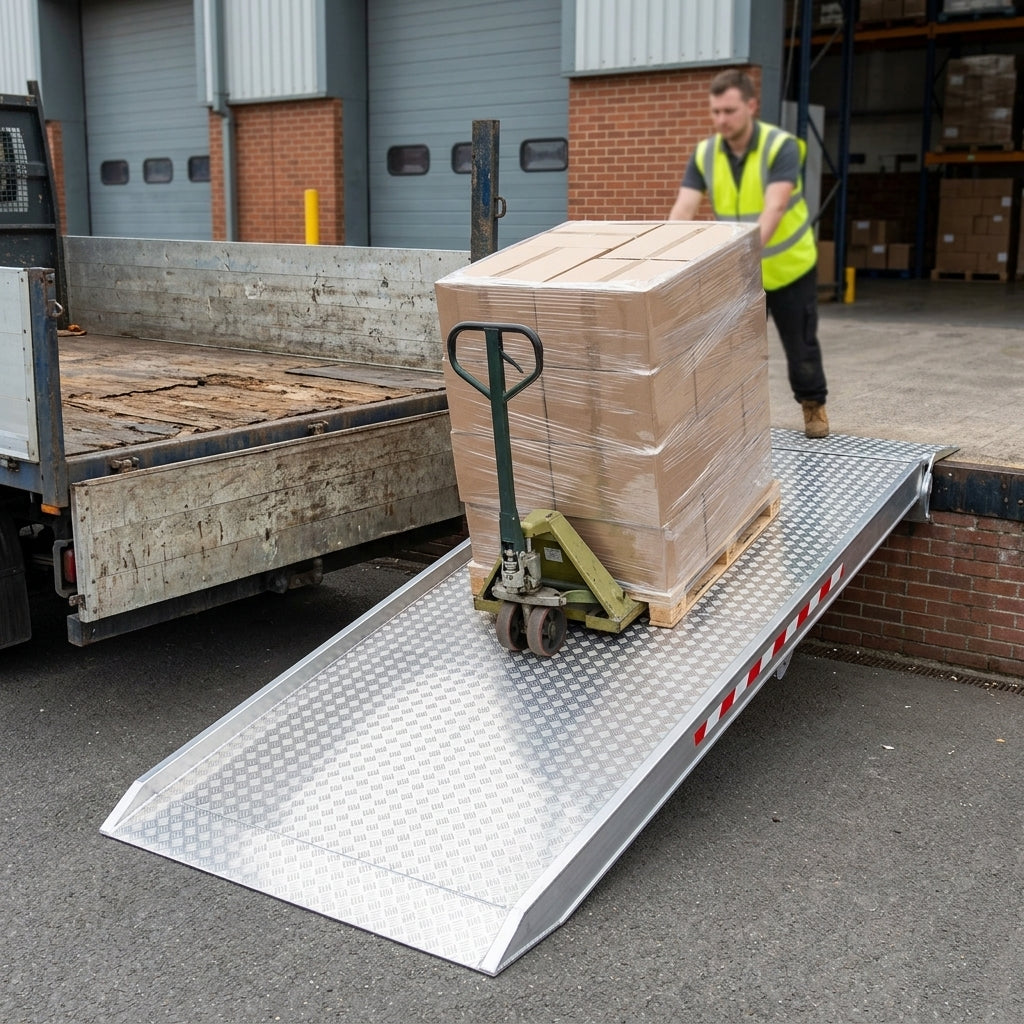

Extra Wide Aluminium Loading Ramps (Pair) – 3500mm L x 460mm W, 6870kg Capacity
£3,348.00
Not sure it suits your machine?
Send us your load height and machine weight — we'll confirm the right ramp before you order.
Overview
An extra-wide, best-selling medium to heavy duty plant ramp, supplied as a pair of aluminium loading ramps for plant machinery, diggers and telehandlers. Each ramp is 3500mm long and 460mm wide with a 150mm profile thickness, and the pair is rated to a maximum of 6,870kg. The price and the stated capacity are both for the pair.
Specifications
| Size | 3500mm L x 460mm W x 150mm H |
|---|---|
| Height of Ramps Profile (mm) | 150 |
| Length (mm) | 3500 |
| Width (mm) | 460 |
| Minimum Track Width (mm) | 300 |
| Maximum Track Width (mm) | 380 |
| Default Connection | Rest On Connection |
| Capacity (kg) | 6870 |
| Max Load Height (mm) | 1050 |
| Min. Load Height (mm) | 900 |
| Weight per Ramp (kg) | 43,5 |
| Weight Per Pair (kg) | 87 |
| Two Year Warranty | Yes |
| Connection Options Available | Yes |
| Customisable | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
| Not Solid Wheels | Yes |
| Capacity Wheelbase 1000mm (kg) | 4,120 |
| Capacity Wheelbase 1500mm (kg) | 5,150 |
| Capacity Wheelbase 2000mm (kg) | 6,870 |
| Min - Max Load Height | 900mm - 1050mm |
Features
- Available with or without edges.
- A central reinforcing bar runs through the 150mm profile for added strength.
- Custom load heights and custom-built sizes are available, with quotes for bespoke ramps on request.
- Fully TÜV certified.
- European made and easy to fit.
- Two-year warranty.
Size & Capacity
- Size per ramp: 3500mm L x 460mm W x 150mm profile thickness.
- Track/wheel width: minimum 300mm, maximum 380mm.
- Capacity by wheelbase (pair): 4,120kg at a 1000mm wheelbase, 5,150kg at a 1500mm wheelbase, 6,870kg at a 2000mm wheelbase.
- Weight: 43.5kg per ramp (87kg per pair).
Load Height & Gradient
- Load height range: 900mm to 1050mm (measured vertically from the ground to the point where the ramp rests on the vehicle).
- Not designed for use at gradients steeper than 30%.
- To check suitability, measure your load height and make sure it falls within the range above. For machines with low ground clearance, ask us to check suitability first.
Connection & Fitting
- Four connection options are available, with the rest-on connection as the default.

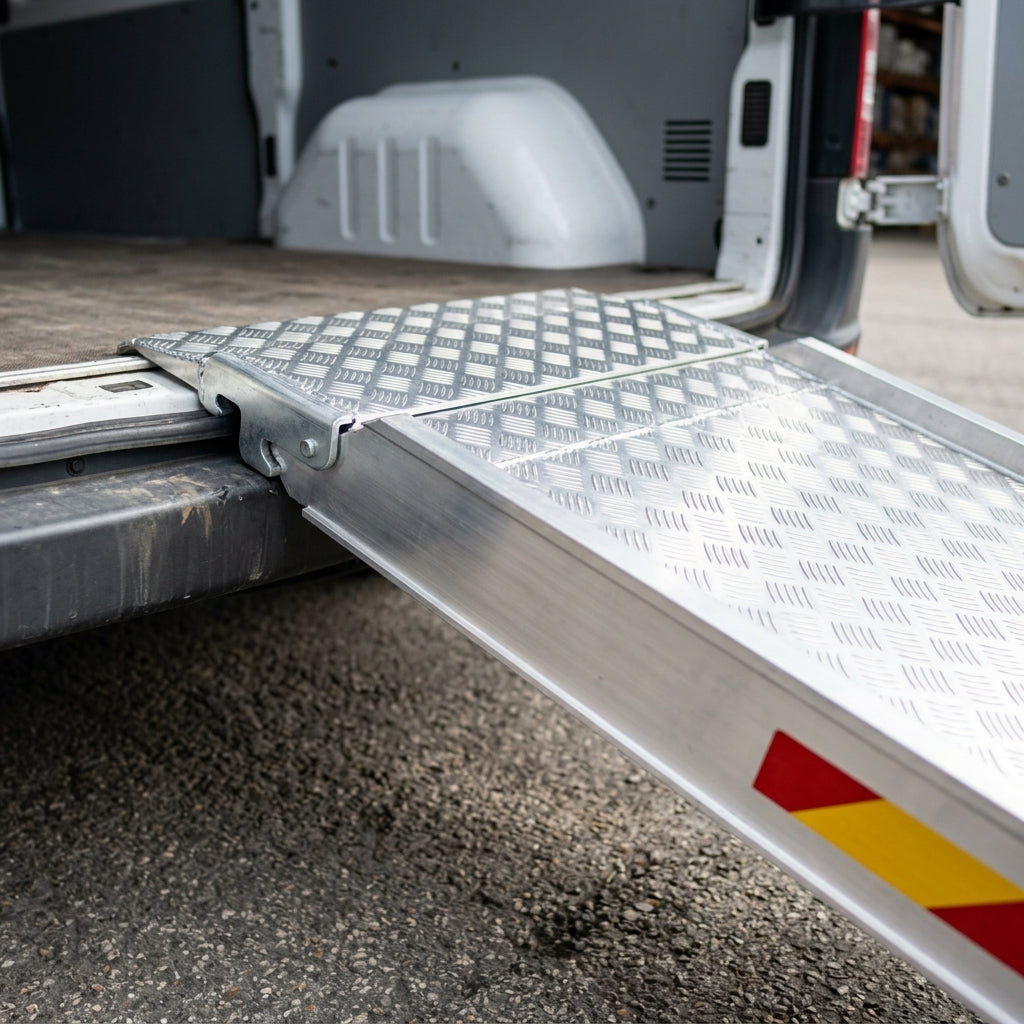

- The standard curved rest-on connection has a pre-drilled hole for securing the ramp to the vehicle. The angled foot keeps the ramp on the ground, while the ramp’s own weight and the gradient hold it firmly in place.
- If you need a different connection, such as a hook, just let us know after placing your order.
Good to Know
- Not suitable for solid wheels, such as those on road surfacing machines; a dedicated industrial ramp for steel tracks is needed for that type of machinery.
- For a customised pair, we need your load height, details of what you are loading and its maximum weight; for low-clearance machines please also provide the vehicle data sheet.
- Images are for illustration only; the actual product may vary slightly due to product improvements.
Load height checker
Measure straight up from the ground to where the ramps will rest on your vehicle or trailer.
