Vehicle Access Ramp with Folding Handrails – 3790mm L x 1250mm W, 1500kg Capacity
£5,280.00
Not sure which length you need?
Send us the step height and who will use it — we'll confirm the right ramp before you order.
Overview
A portable vehicle access ramp with folding handrails, 3790mm long with a 1250mm usable width and a load capacity of 1500kg. It lets vehicles and pedestrians safely cross height differences caused by trenches, public works and construction sites.
Specifications
| Size | 3790mm L x 1250mm Internal W x 1055mm H |
|---|---|
| Height (mm) | 1055 |
| Internal Width (mm) | 1250 |
| Length (mm) | 3790 |
| External Width (mm) | 1370 |
| Default Connection | Rest On Connection |
| Capacity (kg) | 1500 |
| Max Load Height (mm) | 300 |
| Weight (kg) | 118 |
| Two Year Warranty | Yes |
| Customisable | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
| Leave Outside | Yes |
| Capacity Wheelbase 750mm (kg) | 1500 |
| Capacity Wheelbase 1000mm (kg) | 1432 |
| Colour Options | Black |
Features

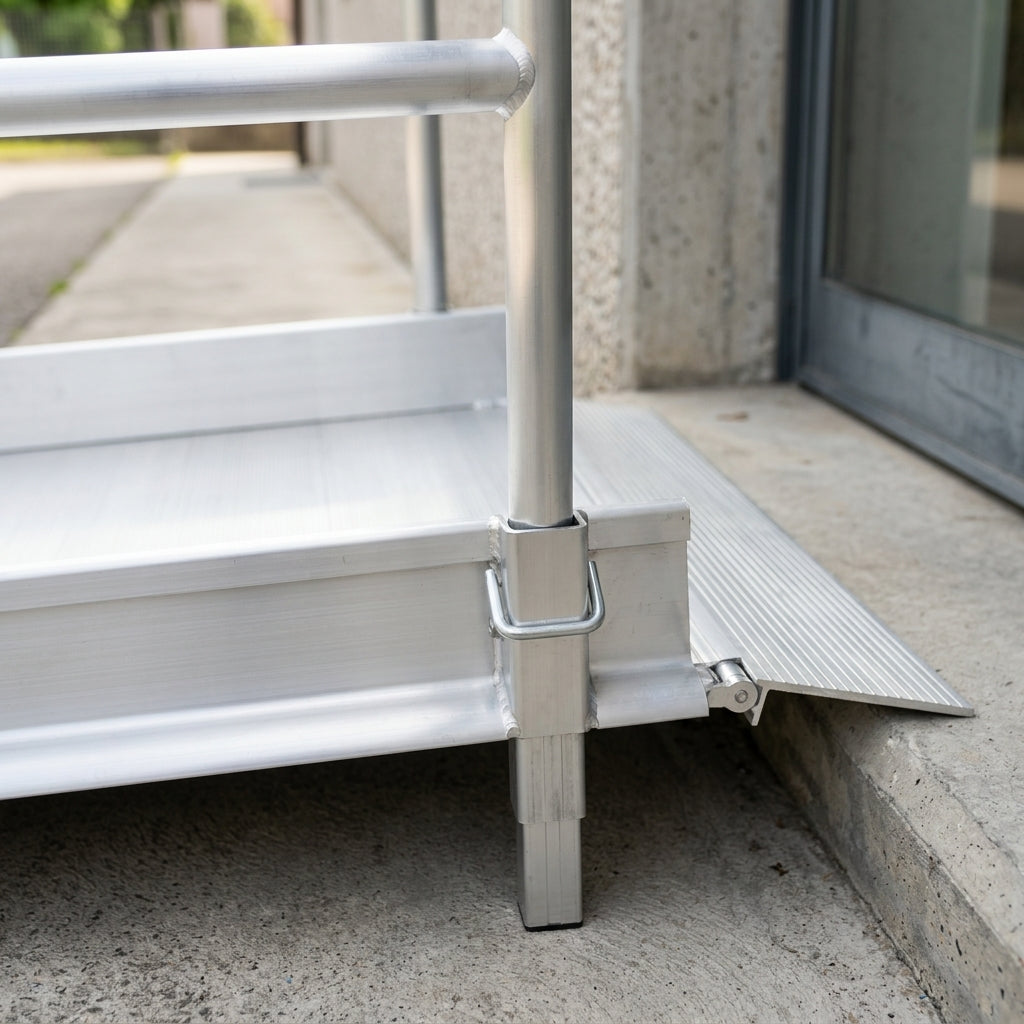

- Rest-on connection: simply place the ramp and start using it. The curved connection has a pre-drilled hole so it can be secured to the step or kerb.
- The angled foot end sits firmly on the ground and suits load heights of up to 300mm. Its own weight and the gradient also help hold the ramp in place.
- R12 slip-resistant surface for vehicles and people on foot.
- Ergonomic double handrails 1m high that fold down for easier transport.
- Suitable for pedestrian access as well as vehicles.
- Customisable, easy to fit, European made and can be left outside.
- Finished in black. Two-year warranty.
Sizes & Capacity
- Length: 3790mm
- Internal (usable) width: 1250mm
- External width: 1370mm
- Height: 1055mm
- Weight: 118kg
- Capacity: 1500kg
- Capacity by wheelbase: 1500kg at 750mm, 1432kg at 1000mm
Safe Use
- Never exceed a maximum gradient of 8%.
- Use the ramp with the handrails in place; fold them only for transport.
- Pictures are for illustration only; the actual product may vary due to product improvements.
Ramp length checker
Measure from the ground to the top of the step or threshold.
