Overview

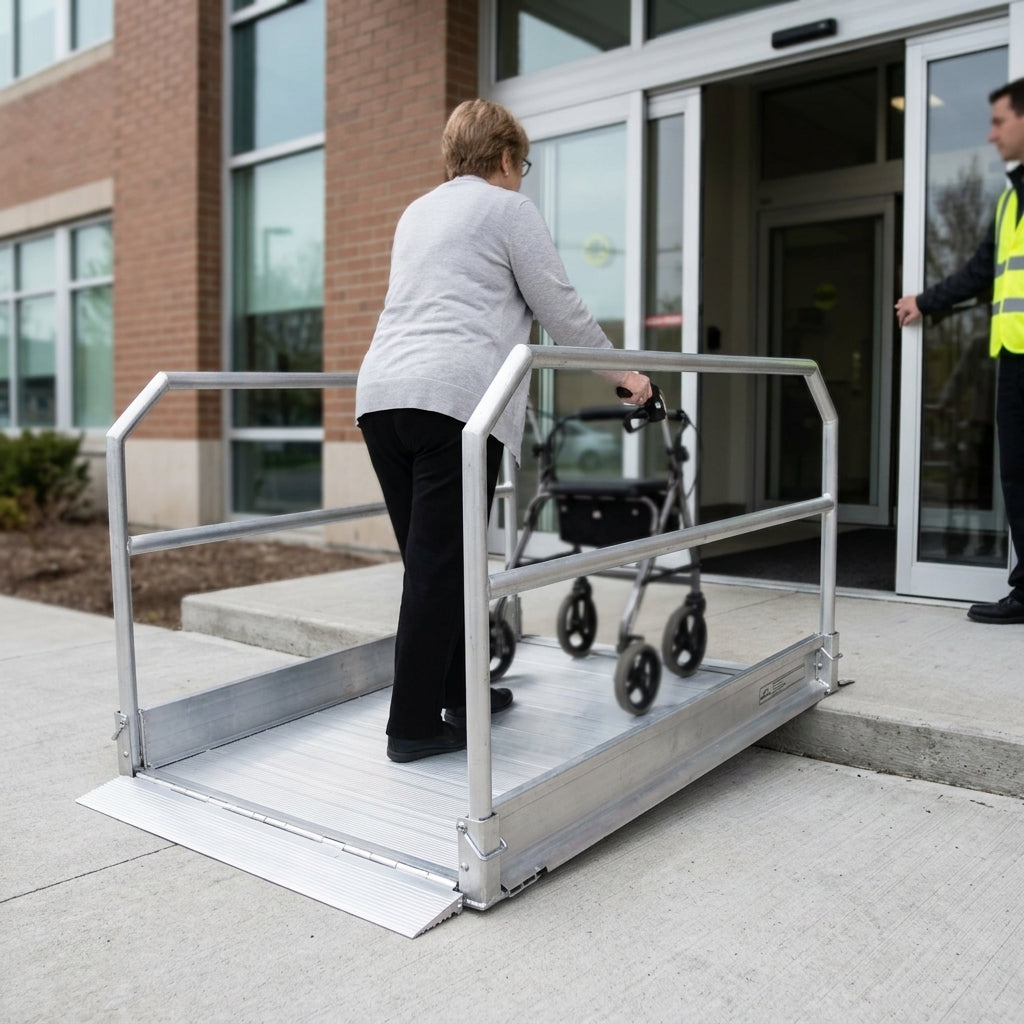

A pedestrian ramp with folding handrails, 4790mm long with a 1000mm usable (internal) width and a maximum load of 400kg per square metre. It is made for overcoming height differences in many different situations, from private homes to public buildings.
Specifications
| Size | 4790mm L x 1000mm Internal W x 1055mm H |
|---|---|
| Height (mm) | 1055 |
| Internal Width (mm) | 1000 |
| Length (mm) | 4790 |
| Default Connection | Rest On Connection |
| Capacity (kg) | 400 |
| Max Load Height (mm) | 380 |
| Weight (kg) | 114 |
| Two Year Warranty | Yes |
| Easy to Fit | Yes |
| Leave Outside | Yes |
| Colour Options | Black |
Features
- Rest-on connection: simply set the ramp in position and it is ready to use.
- The foot end suits a range of heights, up to a maximum rise of 380mm.
- Bridges architectural barriers such as steps, thresholds and kerbs, in private or public settings.
- Non-slip walking surface with R12 slip resistance; used at a gentle gradient it suits mobility aids, including wheelchairs and walkers.
- Ergonomic handrails 1018mm high, which fold down for storage and transport.
- Black finish, and it can be left outside.
Staying Securely in Place

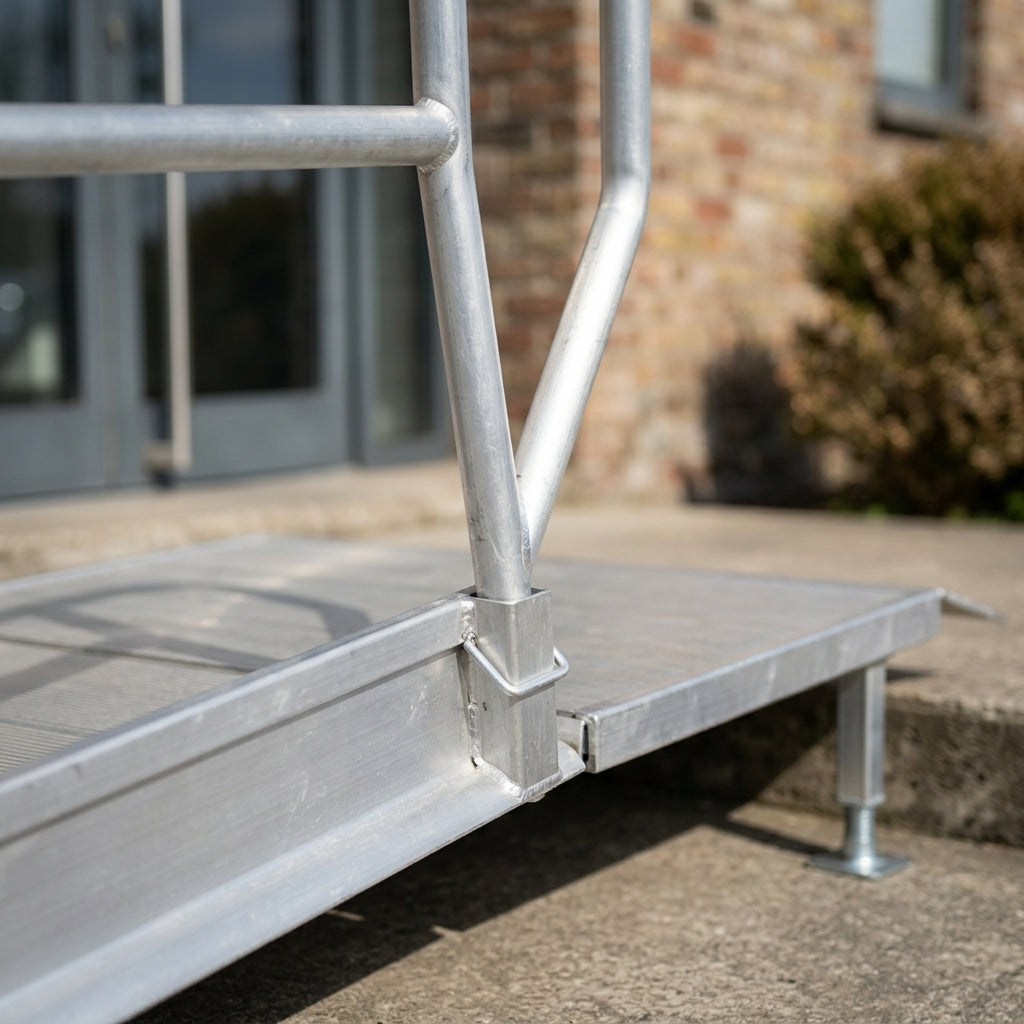

- The curved rest-on connection has a pre-drilled hole so it can be fixed to the step or kerb.
- The angled foot sits firmly on the ground, and the ramp's own weight and gradient help keep it steady.
Good to Know
- Do not exceed a maximum gradient of 8%.
- Overall height 1055mm; weight 114kg.
- Easy to fit, and built to order.
- Two-year warranty.
Ramp length checker
Measure from the ground to the top of the step or threshold.
Qualifies for VAT relief
VAT relief added — VAT comes off in your basketVAT relief
This product is designed for disabled people, so it can be bought without VAT when it is for the personal or domestic use of someone who is chronically sick or disabled, or when an eligible charity buys it for a disabled person's use.
Who can claim
- A person with a physical or mental impairment that has a long-term effect on their ability to carry out everyday activities.
- A person with a condition doctors treat as a chronic illness (for example diabetes), or who is terminally ill.
- A family member, carer or friend buying it on their behalf.
- A charity buying it to make it available to disabled people.
Who can't claim
- Someone with a temporary injury, such as a broken bone.
- An older person who is frail but not disabled or chronically sick.
- A VAT-registered business, or anyone buying for general or shared use (unless it is an eligible charity).
How to claim
- Choose Claim VAT relief (here or in your basket).
- Enter the name of the person or charity, and the condition or the charity's registration number.
- Tick the declaration. The 20% VAT is then taken off every qualifying item in your basket before checkout.
Your declaration is kept with your order, as HMRC requires. Making a false declaration is an offence. If you're unsure whether you qualify, see HMRC Notice 701/7 or ask your doctor — we can't give medical advice.
