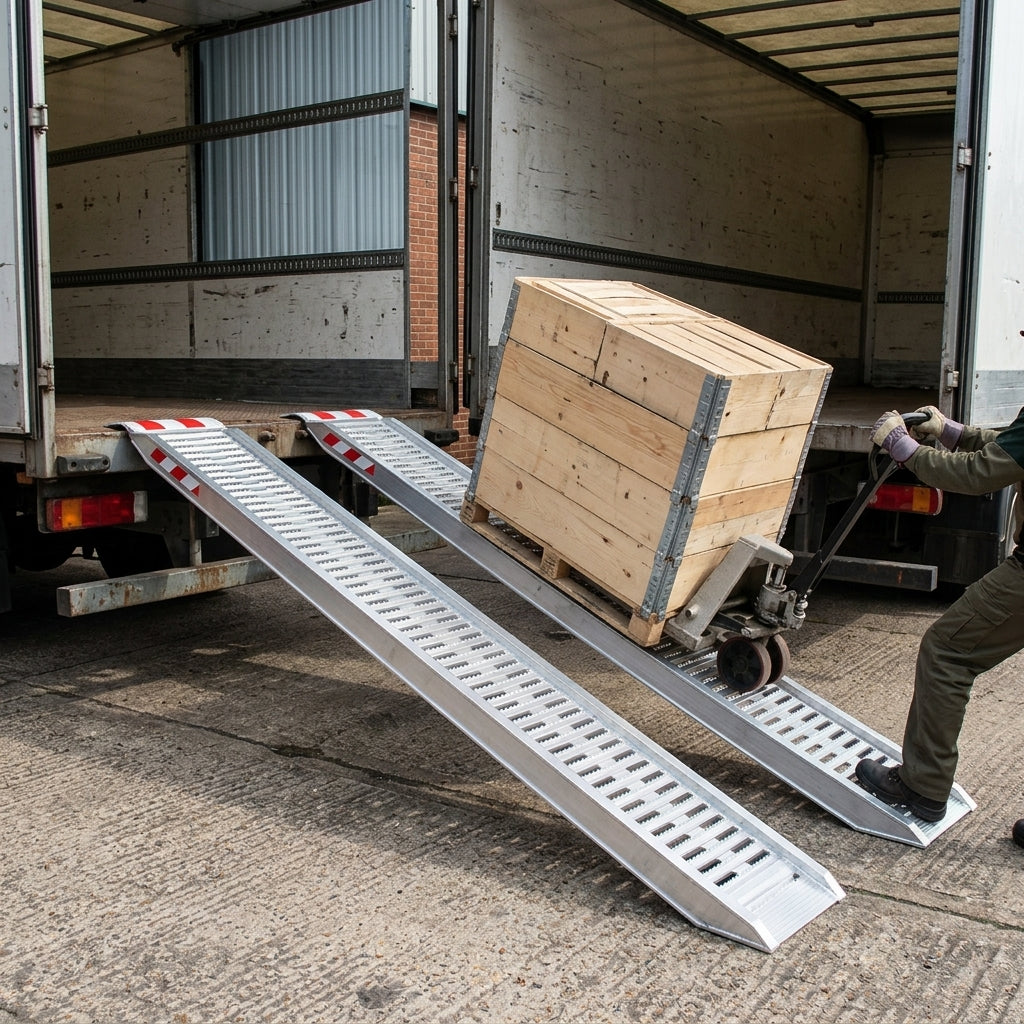

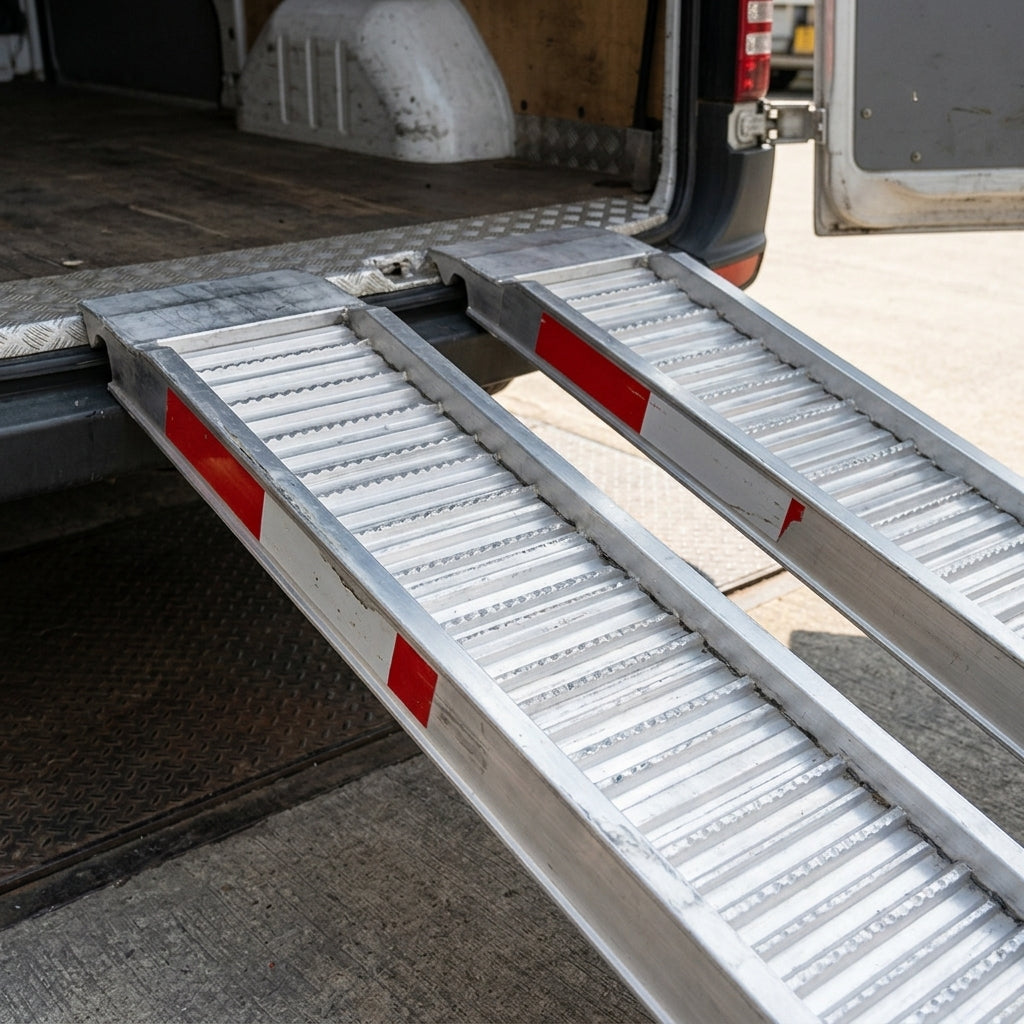

Extra Wide Aluminium Loading Ramps (Pair) – 4000mm L x 400mm W, 1500kg Capacity

An extra-wide ramp, supplied as a pair of aluminium loading ramps for cars and lightweight plant machinery. Each ramp is 4000mm long and 400mm wide with a 100mm profile thickness, and the pair is rated to a maximum of 1,500kg. The price and the stated capacity are both for the pair.

• Supplied without edges as standard; a version with edges is also available.
• Custom load heights and custom-built sizes are available, with quotes for bespoke ramps on request.
• Fully TÜV certified.
• European made and easy to fit.
• Two-year warranty.

• Size per ramp: 4000mm L x 400mm W x 100mm profile thickness.
• Track/wheel width: minimum 200mm, maximum 320mm.
• Capacity by wheelbase (pair): 1,250kg at a 1000mm wheelbase, 1,370kg at a 1250mm wheelbase, 1,500kg at a 1500mm wheelbase.
• Weight: 27kg per ramp (54kg per pair).

• Load height range: 1050mm to 1200mm (measured vertically from the ground to the point where the ramp rests on the vehicle).
• Designed for use at a 30% gradient.
• To check suitability, measure your load height and make sure it falls within the range above. For machines with low ground clearance, ask us to check suitability first.
• A 30% gradient is generally too steep for low-clearance cars, forklifts and scissor lifts; a dedicated car ramp or container ramp, or a custom solution, is better suited to these.

• Four connection options are available. The default is the rest-on connection with a pin, a popular choice for flatbed vehicles and tipper trucks; a hook connection is normally recommended for beaver tail trailers.
• The standard curved rest-on connection has a pre-drilled hole for securing the ramp to the vehicle. The angled foot keeps the ramp on the ground, while the ramp’s own weight and the gradient hold it firmly in place.
• If you need a different connection, such as a hook, just let us know after placing your order.

• Not suitable for solid wheels, such as those on road surfacing machines; a dedicated industrial ramp for steel tracks is needed for that type of machinery.
• Images are for illustration only; the actual product may vary slightly due to product improvements.
