Industrial Aluminium Loading Ramps (Pair) – 4000mm L x 580mm W x 230mm Profile, 15,010kg
£6,156.00
Not sure it suits your machine?
Send us your load height and machine weight — we'll confirm the right ramp before you order.
Overview

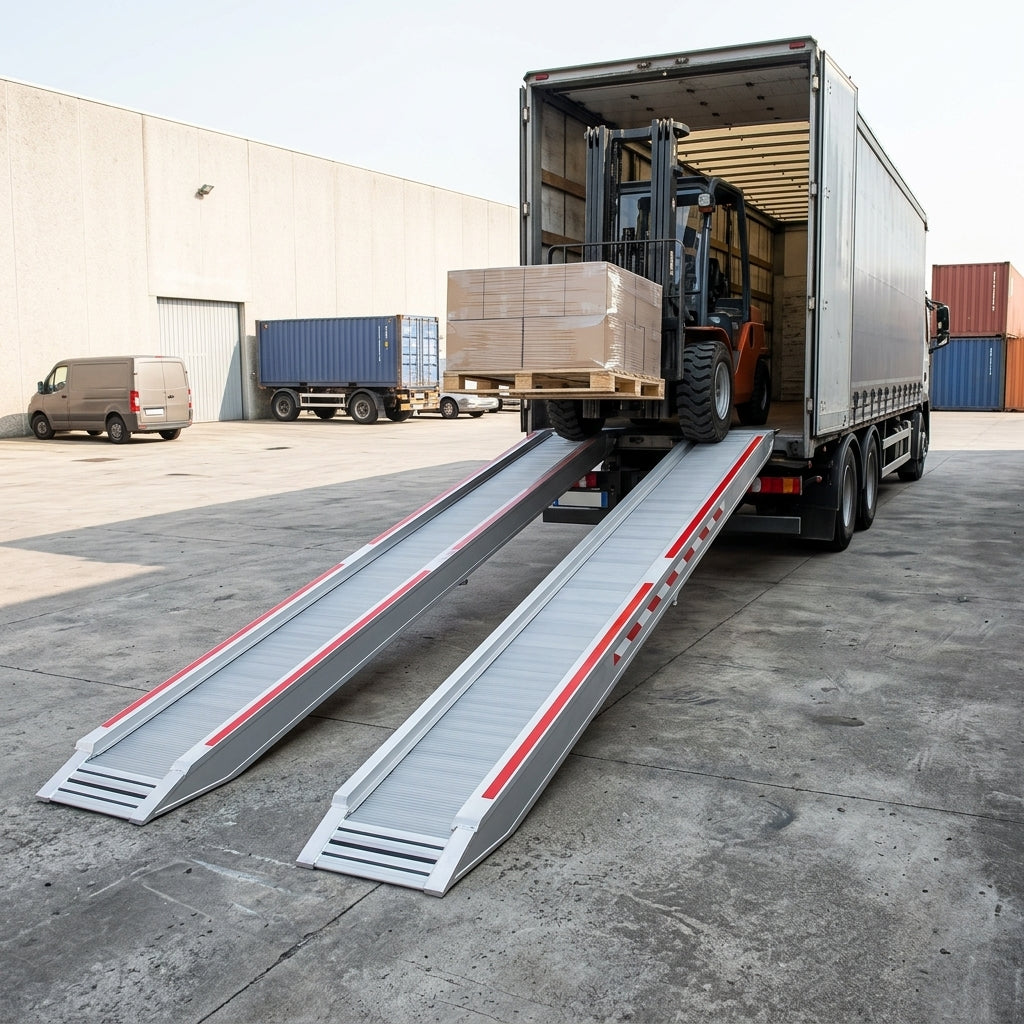

A pair of industrial loading ramps in aluminium, 4000mm long and 580mm wide with a 230mm profile, rated to 15,010kg for the pair. They are made for industrial plant and heavy-duty commercial loading. One of the two heaviest-duty ramps in the standard range, they are over half a metre wide.
Specifications
| Size | 4000mm L x 580mm W x 230mm H (Profile) |
|---|---|
| Height of Ramps Profile (mm) | 230 |
| Length (mm) | 4000 |
| Width (mm) | 580 |
| Minimum Track Width (mm) | 300 |
| Maximum Track Width (mm) | 480 |
| Default Connection | Rest On Connection |
| Capacity (kg) | 15010 |
| Max Load Height (mm) | 1200 |
| Min. Load Height (mm) | 1050 |
| Weight per Ramp (kg) | 88 |
| Weight Per Pair (kg) | 176 |
| Two Year Warranty | Yes |
| Connection Options Available | Yes |
| Customisable | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
| Not Solid Wheels | Yes |
| Capacity Wheelbase 1000mm (kg) | 10000 |
| Capacity Wheelbase 1500mm (kg) | 12000 |
| Capacity Wheelbase 2000mm (kg) | 15010 |
| Min - Max Load Height | 1050mm - 1200mm |
Features
- Maximum capacity 15,010kg across the pair. Capacity depends on the machine's wheelbase: 10,000kg at 1000mm, 12,000kg at 1500mm, 15,010kg at 2000mm.
- Tracks or wheels must be at least 300mm wide, up to a maximum of 480mm.
- Suits a load height of 1050mm to 1200mm (measured from the ground to the point where the ramps rest).
- Each ramp weighs 88kg (176kg per pair).
- Not suitable for the solid wheels found on road surfacing machines; steel-tracked machinery needs industrial ramps with a suitable surface.
- Fully TÜV certified.
Connection & Fixing
- Supplied as standard with a rest-on connection.
- Four connection options are available. To change from the standard rest-on connection, for example to a hook connection, let us know after you order.

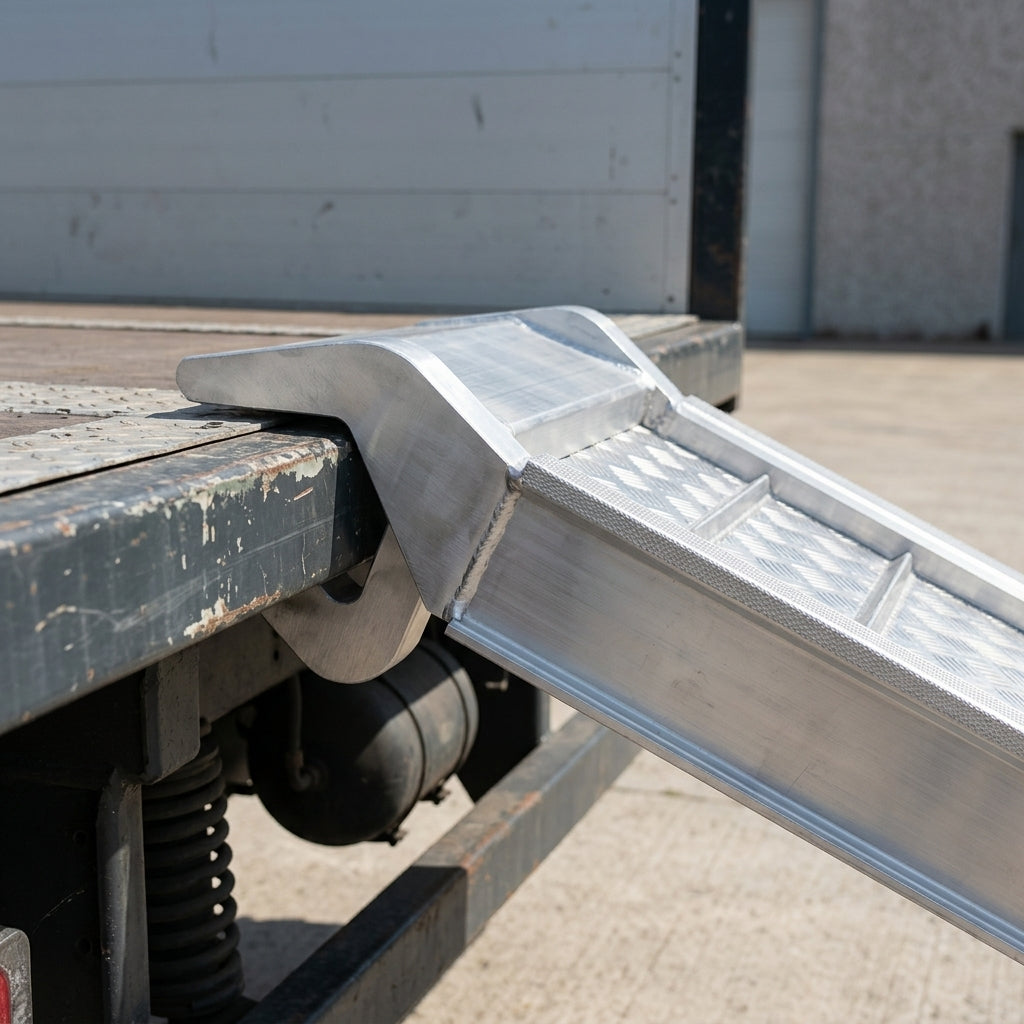

- The curved rest-on lip has a pre-drilled hole for securing the ramp to the vehicle. The angled foot keeps the ramp on the ground, while its own weight and gradient hold it firmly in place.
Build & Customisation
- Built without side edges as standard; versions with edges are also available.
- Customisable: custom load heights and custom-built sizes are available on request.
- Quotes for bespoke ramps are available on request. To prepare one we need your load height, what you are loading and its maximum weight, plus the vehicle's data sheet for low-clearance machines.
- Easy to fit, made in Europe and covered by a two-year warranty.
Good to Know
- Sold as a pair; the price and capacity shown are for both ramps.
- Using the ramps outside their load height range is dangerous because they will not sit flush with the ground. Ramps can be custom cut for other heights, for example to give a gentler gradient.
- Product images are for illustration only; the actual product may differ slightly due to ongoing improvements.
Load height checker
Measure straight up from the ground to where the ramps will rest on your vehicle or trailer.
