5-Channel Black Heavy-Duty Cable Protector – 870mm L x 542mm W x 52mm H, 5,000kg (Pack of 5)

£2,040.00 incl. VAT · per pack
Need more width or reach? Compare other sizes ↓

Not sure which size you need?

Send us your cable or hose diameters and traffic type — we'll confirm the right protector before you order.

Call +44 1282 270214Email us

Overview

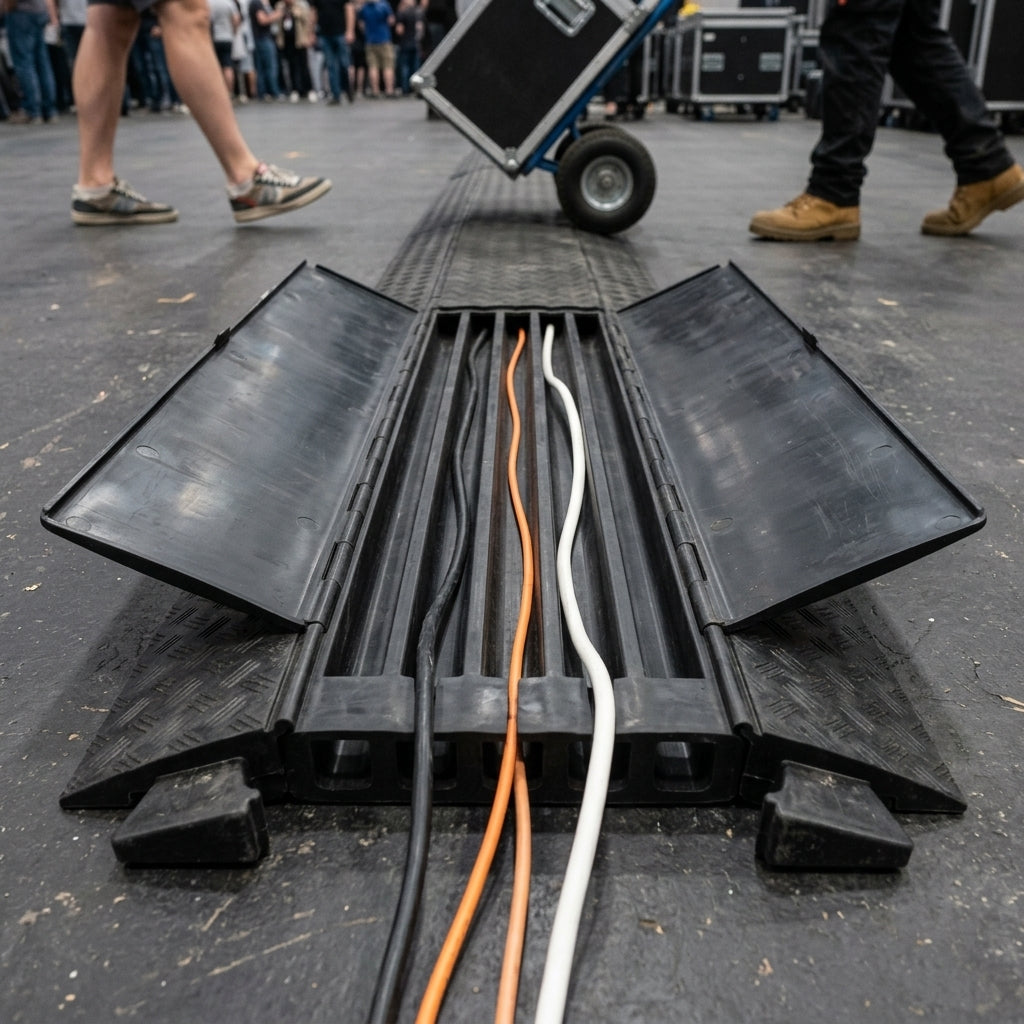

An all-black, heavy-duty 5-channel cable protector with a low profile that lets goods and vehicles pass over easily. It safely protects sound and lighting cables from pedestrians and light vehicles, with a 5,000kg capacity and 10,000kg per axle. Ideal for commercial settings such as trade shows, exhibitions, retail parks, markets, shopping centres, festivals, music events, workplaces and warehouses.

Specifications

SizePack of 5 – 870mm L x 542mm W x 52mm H
Height (mm)52
Length (mm)870
Width (mm)542
Channel Width (mm)34mm
Channel Size (mm)34mm x 36mm
Channel Height (mm)36mm
Capacity (kg)5,000
Weight (kg)12.8
Safety StandardDERKA certified, fire resistance class B2
Five Years WarrantyYes
Easy to FitYes
European MadeYes
Leave OutsideYes
Cable Protector ColorBlack
No. Channels5
Capacity per Axle (kg)10,000
Colour OptionsBlack

Features

  • 5 channels, each 34mm x 36mm.
  • Chequered black non-slip surface for pedestrians and vehicles.
  • Black polyurethane lid locks securely when closed, with a self-cleaning hinge.
  • Quick to use in all weathers: rest it in place, open the lid and lay in up to 5 cables.
  • Interlocking design: connect several units to cover larger areas.
  • Built-in carry handles for lifting and moving it when not in use.
  • Suitable for indoor and outdoor use and can be left outside.

Build Quality & Safety

  • Made from non-breakable, 100% recyclable polyurethane, built for use in industrial areas.
  • Resistant to oils, acids, petrol and solvents.
  • Temperature resistant from -30°C to +60°C, with a shore A hardness of 88 ± 4.
  • Smooth surfaces, edges and corners help prevent injuries.
  • Fire protection class B2 (DIN 4102) and class E to DIN EN 13501-1. TÜV SÜD and DERKA certified.
  • Protects low-voltage cables up to 500V, such as communication, control and power-supply cables, as well as water and sewage pipes and hoses. Not suitable for rigid gas pipes.
  • Made in Germany. Five-year warranty.

Care & Maintenance

  • Easy to clean, even with a steam jet cleaner; little maintenance is needed thanks to the self-cleaning lid.
  • Keep the hinge area and lid clean, and lightly lubricate the hinges and closure regularly with a silicone spray. Wipe off any excess afterwards to avoid a slip risk.

Good to Know

  • Sold in packs of 5 – the price shown is for a pack of 5 units.
  • Also available in black and yellow.
  • Accessories are available, including curved sections and a matching 5-channel end ramp.
  • Pictures are for illustration only; the actual product may vary due to product improvements.

Need more width or reach?

All cable protectors & covers →

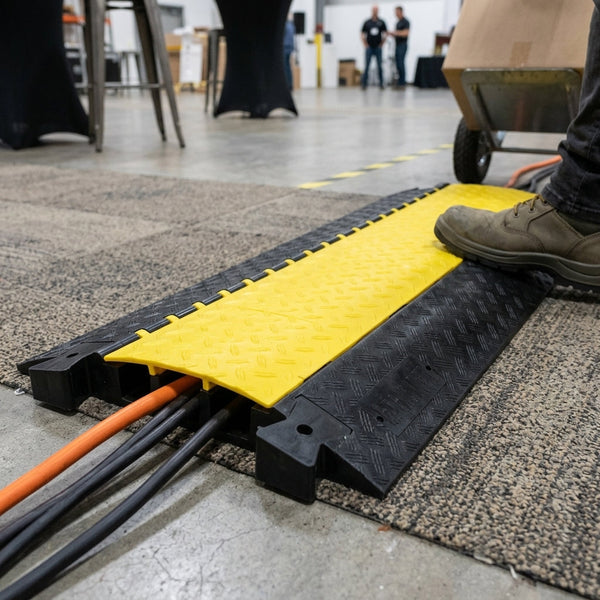

Wider tracks3-Channel Cable Protector 45mm x 50mm & 52mm x 49mm 5000kg 3-Channel Heavy-Duty Cable Protector – 1000mm L x 600mm W x 73mm H, 5,000kg £708.00 Longer reach900mm x 500mm Cable Protector 3 Channels Heavy Duty Heavy Duty 3-Channel Cable Protector with Hinged Lid – 880mm L x 500mm W x 75mm H, 64 x 54mm Channels £151.20 Higher capacity1 Channel Cable Cover Orange 1-Channel Drop-Over Cable Protector, Orange – 914mm L x 292mm W x 40.6mm H, for Cables up to 31.8mm £360.00
