900mm x 500mm Cable Protector 3 Channels Heavy Duty
900mm x 500mm Cable Protector 3 Channels Heavy Duty (view 2)
1 / 2

Heavy Duty 3-Channel Cable Protector with Hinged Lid – 880mm L x 500mm W x 75mm H, 64 x 54mm Channels

£151.20 incl. VAT
Need more width or reach? Compare other sizes ↓

Not sure which size you need?

Send us your cable or hose diameters and traffic type — we'll confirm the right protector before you order.

Call +44 1282 270214Email us

Overview

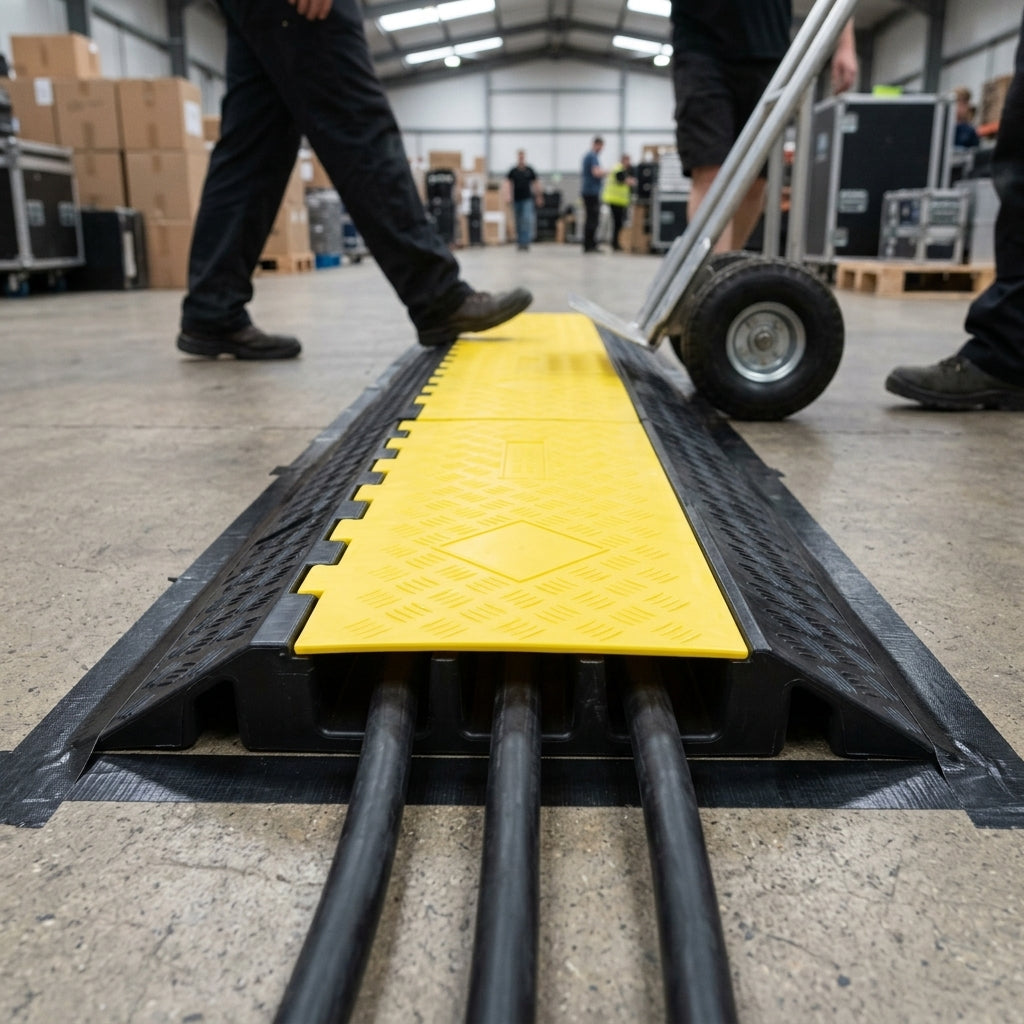

A heavy-duty interlocking cable protector with three 64mm x 54mm channels and a hinged lid, so cables drop straight in without threading. Each section measures 880mm long x 500mm wide x 75mm high, and sections link together to build any run length you need. It is safe for both pedestrians and vehicles, indoors and outdoors.

Specifications

Size880mm L x 500mm W x 75mm H
Height (mm)75
Internal Width (mm)Maximum cable/hose diameter 66.4mm
Length (mm)880
Width (mm)500
Channel Width (mm)64
Channel Size (mm)64 x 54
Channel Height (mm)54
Capacity (kg)18000
Weight (kg)11
One Year WarrantyYes
Bulk Prices AvailableYes
Easy to FitYes
High VisabilityYes
Leave OutsideYes
Cable Protector ColorBlack/Yellow
Max Cable/ Hose Diameter (mm)66.4
No. Channels3
Capacity per Axle (kg)12000
Capacity per Tyre (kg)6000
Operating Temperature (deg. F)-40 °F bis 55 °F
Durometer AA93
Elongation At Break500%
Tensile Strength12 MPa
Speedlimit (mph)5
Colour OptionsBlack

Features

  • 3 channels, each 64mm wide x 54mm high, taking cables or hoses up to 66.4mm diameter.

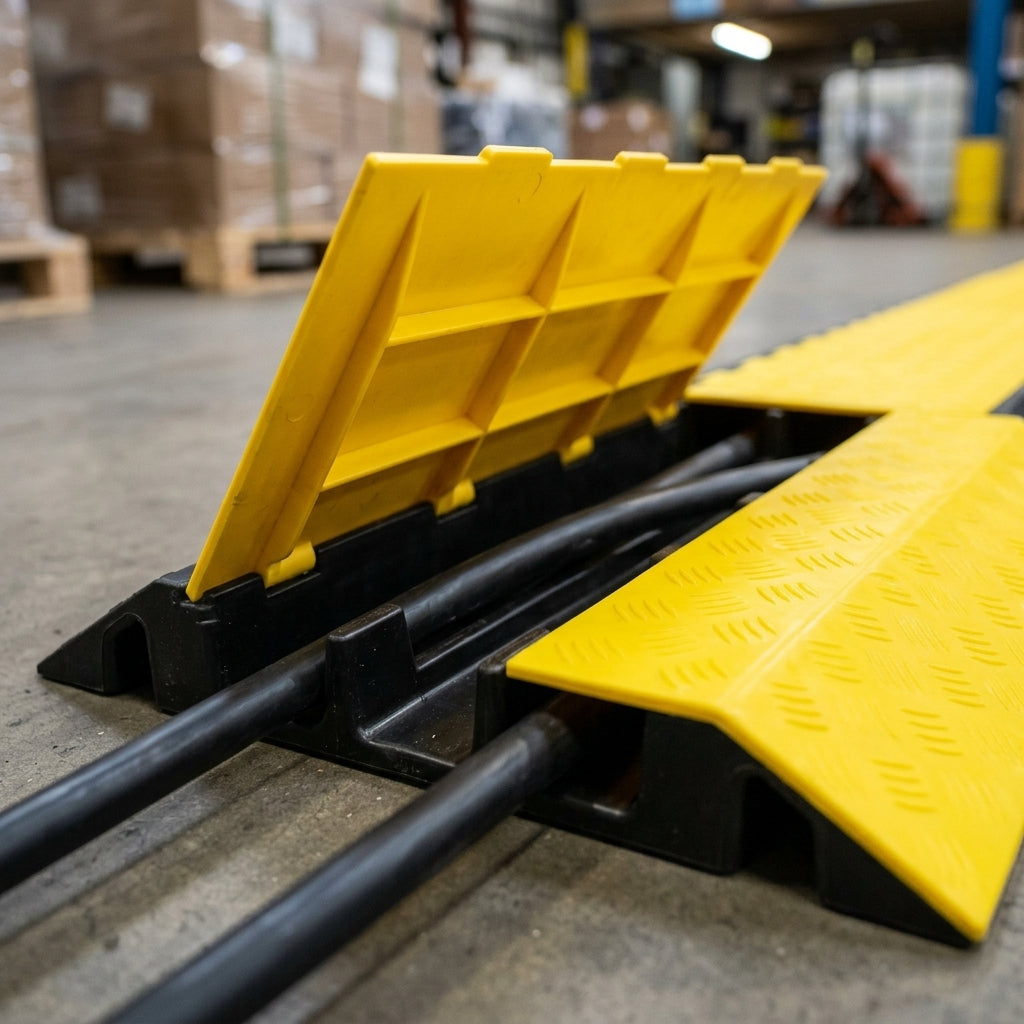

  • Hinged lid for quick, easy cable insertion.
  • Dog-bone connectors join sections together to create your required length.
  • Chequered anti-slip surface.
  • High-visibility contrasting black and yellow body.
  • Made from tough thermoplastic polyurethane; suitable for indoor and outdoor use.

Load & Speed

  • Rated to 12,000kg per axle, with no more than 6,000kg per tyre.
  • Designed to be crossed at a maximum of 5mph.

Good to Know

  • Speed bump signs are recommended to slow traffic and warn road users of the cable protectors.
  • Where wheelchairs will cross, add a compatible rubber wheelchair ramp made for 3-channel cable protectors.
  • When choosing a cable protector, pick the lowest height that suits your cables to give the most vehicles the greatest clearance.
  • Each section weighs approx. 11kg. One-year warranty.
