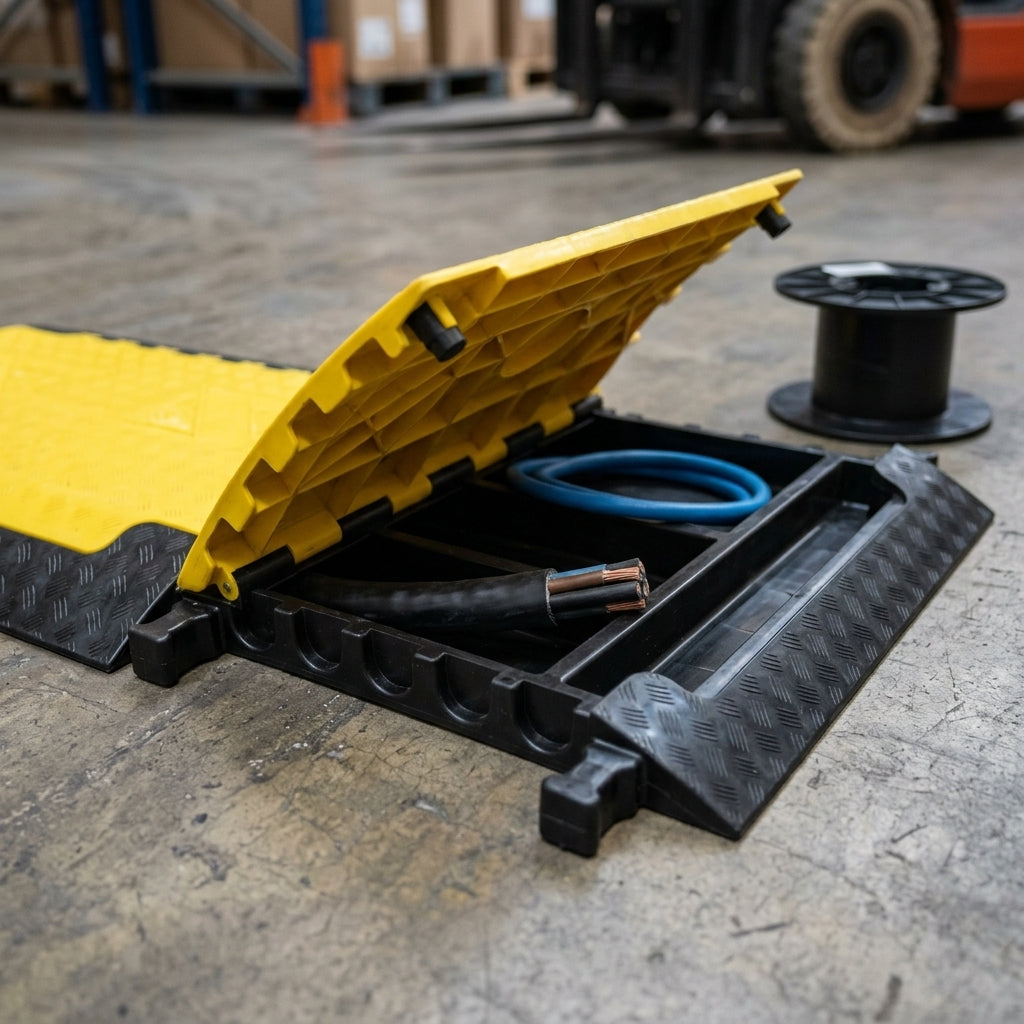

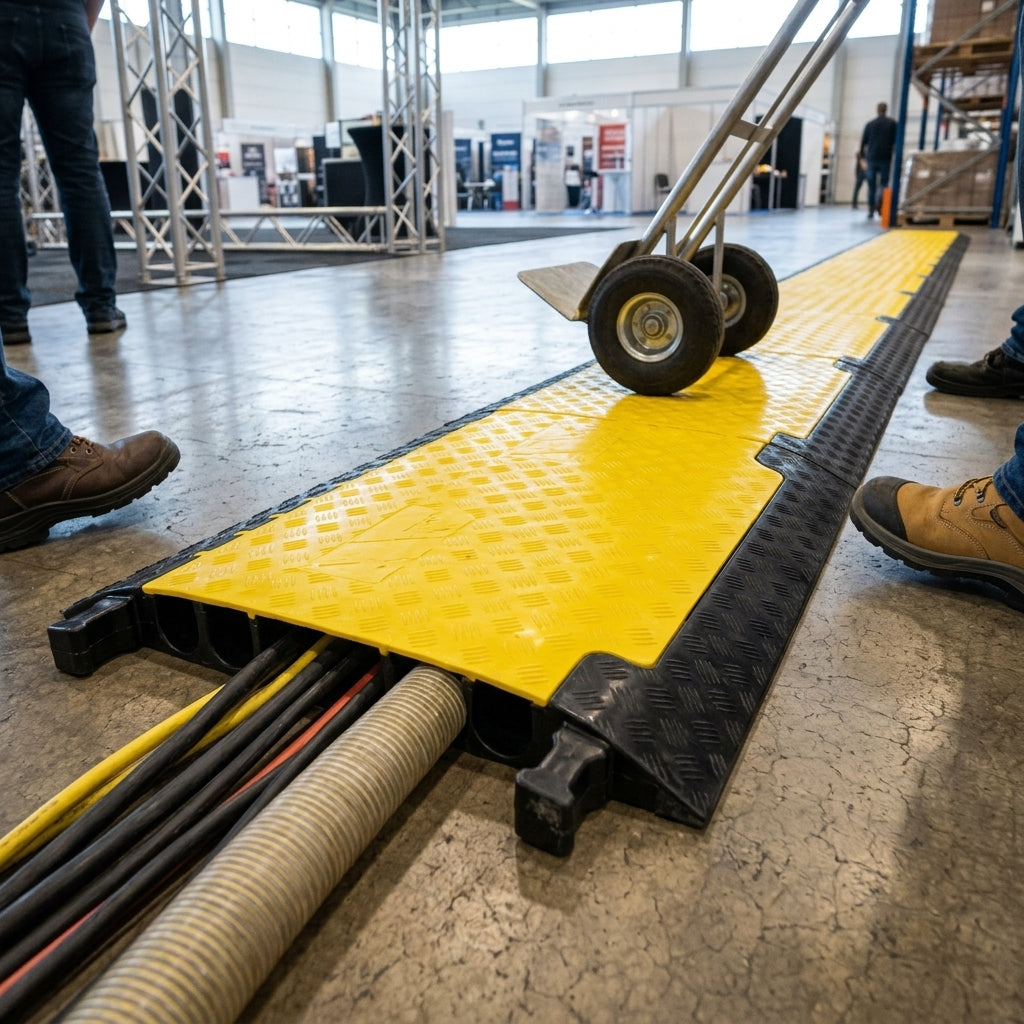

5-Channel Heavy-Duty Cable Protector – 700mm L x 696mm W x 87mm H, Light-Tube Lid, 10,000kg/Axle

A heavy-duty 5-channel cable protector built to protect larger cables and hoses, including fire C-hoses up to 62mm in diameter, from vehicle traffic. Its transparent, yellow-tinted lid lets you insert LED light tubes that shine through, so the protector stays highly visible by day and at night. Rated at 5,000kg per 20cm x 20cm and 10,000kg per axle, it suits commercial sites, construction sites, festivals and events, indoors and outdoors.

• 5 channels: 1 channel 60mm x 63mm, 2 channels 61mm x 59mm and 2 channels 62mm x 65mm.
• Three channels hold fire C-hoses (C-hose couplings) of 62mm diameter.
• Chequered, high-visibility non-slip translucent yellow polyurethane lid, designed for use at night.
• Interlocking design: connect several units to cover your required cable length.
• Quick to set up: rest it on the floor, open the lid and lay in the cables. The lid locks securely when closed and has a self-cleaning hinge.
• Portable, with a built-in carry handle so it can be moved when needed.
• Suitable for internal and external use and can be left outside.

• Made from non-breakable, 100% recyclable polyurethane, built for use in industrial areas.
• Resistant to oil, acid, solvents and petrol.
• Temperature resistant from -30°C to +60°C, with a shore A hardness of 88 ± 4.
• Smooth surfaces, edges and corners help prevent injuries.
• Fire resistance class B2 and fire protection class E to DIN EN 13501-1. TÜV SÜD certified.
• Protects low-voltage cables up to 500V, such as communication, control and power-supply cables, as well as water and sewage pipes and hoses. Not suitable for rigid gas pipes.
• Made in Germany. Five-year warranty.

• Easy to clean, even with a steam jet cleaner; little maintenance is needed thanks to the self-cleaning lid.
• Keep the hinge area and lid clean, and lightly lubricate the hinges and closure regularly with a silicone spray. Wipe off any excess afterwards to avoid a slip risk.

• Check the ground clearance of forklifts and pallet trucks before buying.
• Accessories are available to fit the run to your area, including curved sections and end caps.
• Pictures are for illustration only; the actual product may vary due to product improvements.
