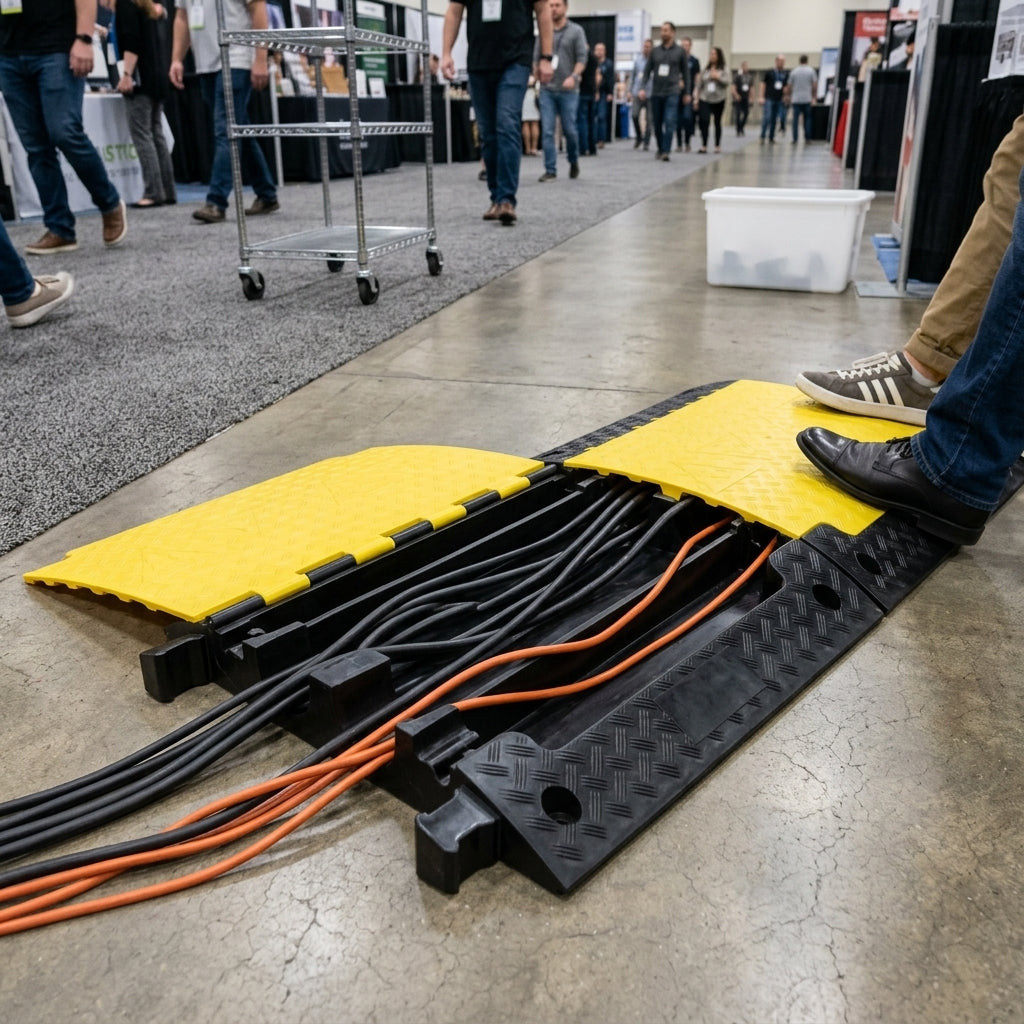

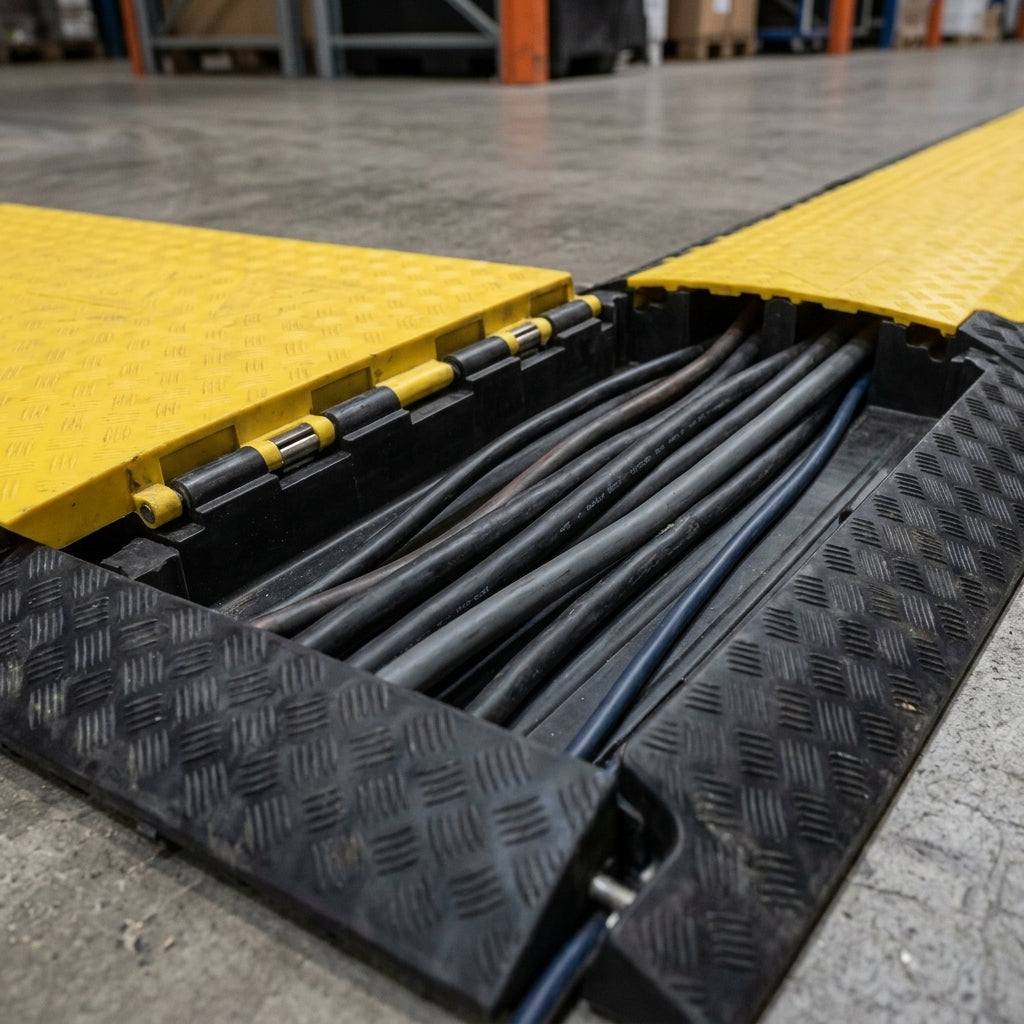

Heavy Duty 6-Channel Cable Protector – 700mm L x 766mm W x 122mm H, 5,000kg, 2 Large Channels

A heavy-duty 6-channel cable and hose protector for pedestrian and vehicle traffic, with two extra-large channels (111mm x 95mm) and four 25mm channels. Rated at 5,000kg per 20cm x 20cm (10,000kg per axle), it is a popular choice for construction sites, warehouses and music events.

• The two large channels suit A-type suction hoses and multipin connectors.
• High-visibility black and yellow design with a chequered non-slip surface.
• Interlocking, so multiple units connect to cover your cable length.
• Self-cleaning, non-slip lid hinge; the lid locks securely when closed.
• Bolt-down option: rest it on the ground, or for long-term use secure it with the 4 fixing holes for street mounting.
• Made from non-breakable, 100% recyclable polyurethane, with smooth surfaces, edges and corners to prevent injuries.
• Resistant to oil, acids, solvents and petrol, for indoor and outdoor use.
• Temperature resistance -30°C to +60°C; shore A hardness 88 ± 4.
• Fire resistance class B2 (DIN 4102); TÜV SÜD certified.
• Maximum vehicle speed 5mph.
• Made in Germany. Five-year warranty.

• 700mm L x 766mm W x 122mm H
• Channels: 2 x 111mm x 95mm, 4 x 25mm x 25mm
• Weight: 27.13kg

• The protector is quite high, so check your vehicle has enough ground clearance.
• Accessories such as curved sections and end caps are available to fit the protector to your area.
• Protects low-voltage cables up to 500V (such as communication, control and power-supply cables) as well as water and sewage pipes and hoses. Not suitable for rigid gas pipes.
• Easy to clean with water or even a steam jet cleaner. Keep the hinge area and lid clean, and lightly lubricate the hinges and closure regularly with silicone spray, wiping off any excess so it does not become slippery.
• Pictures are for illustration only; the actual product may vary due to product improvements.
