5-Channel Interlocking Cable Protector with Hinged Lid – 780mm L x 696mm W x 87mm H, 10,000kg Per Axle

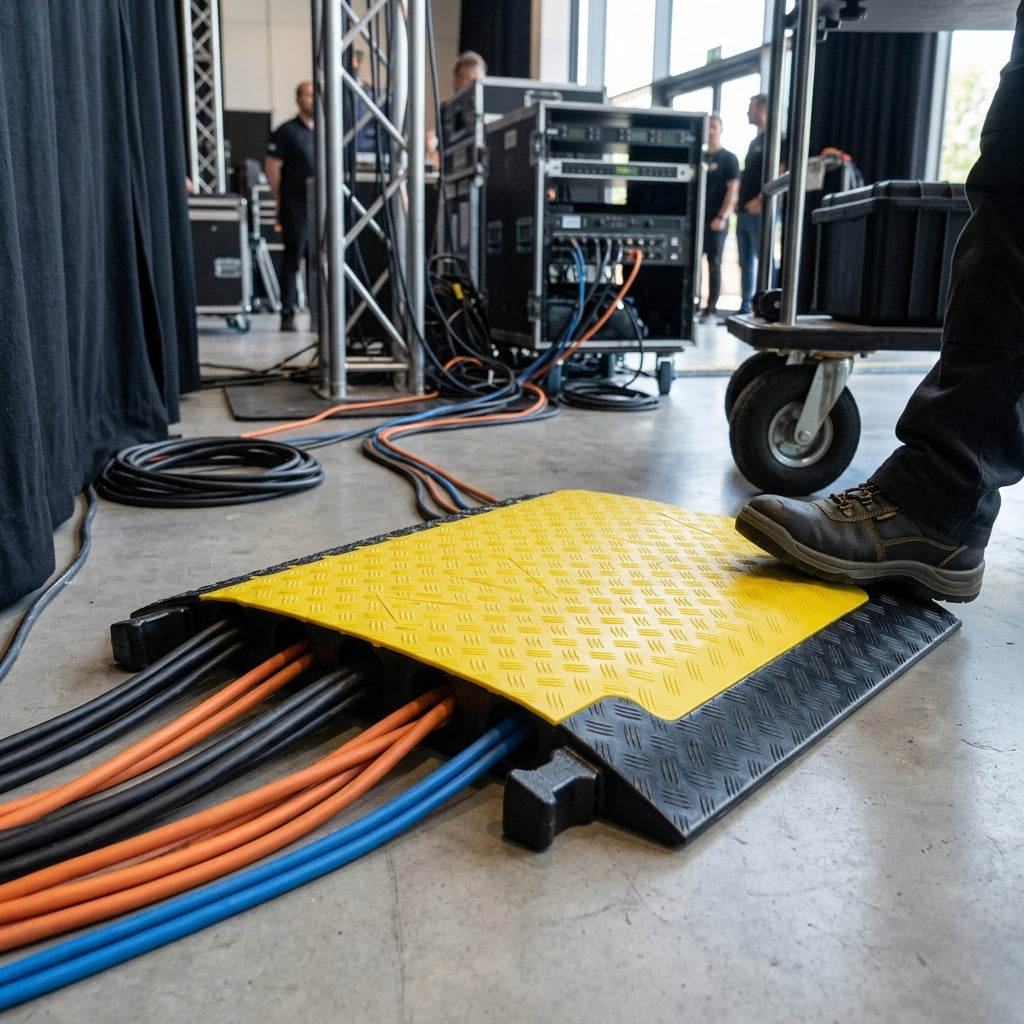

A heavy-duty, interlocking 5-channel cable protector measuring 780mm long x 696mm wide x 87mm high, built to protect large cables and hoses from pedestrian and vehicle traffic in the workplace, on commercial sites and at events. Three of its channels suit C-Tube hose connectors and power cables. Rated at 10,000kg per axle, it is ideal for cars and vans.

• 5 channels: one 60mm x 63mm, two 61mm x 59mm and one 62mm x 65mm.
• 5,000kg capacity and 10,000kg per axle; maximum speed 5mph.

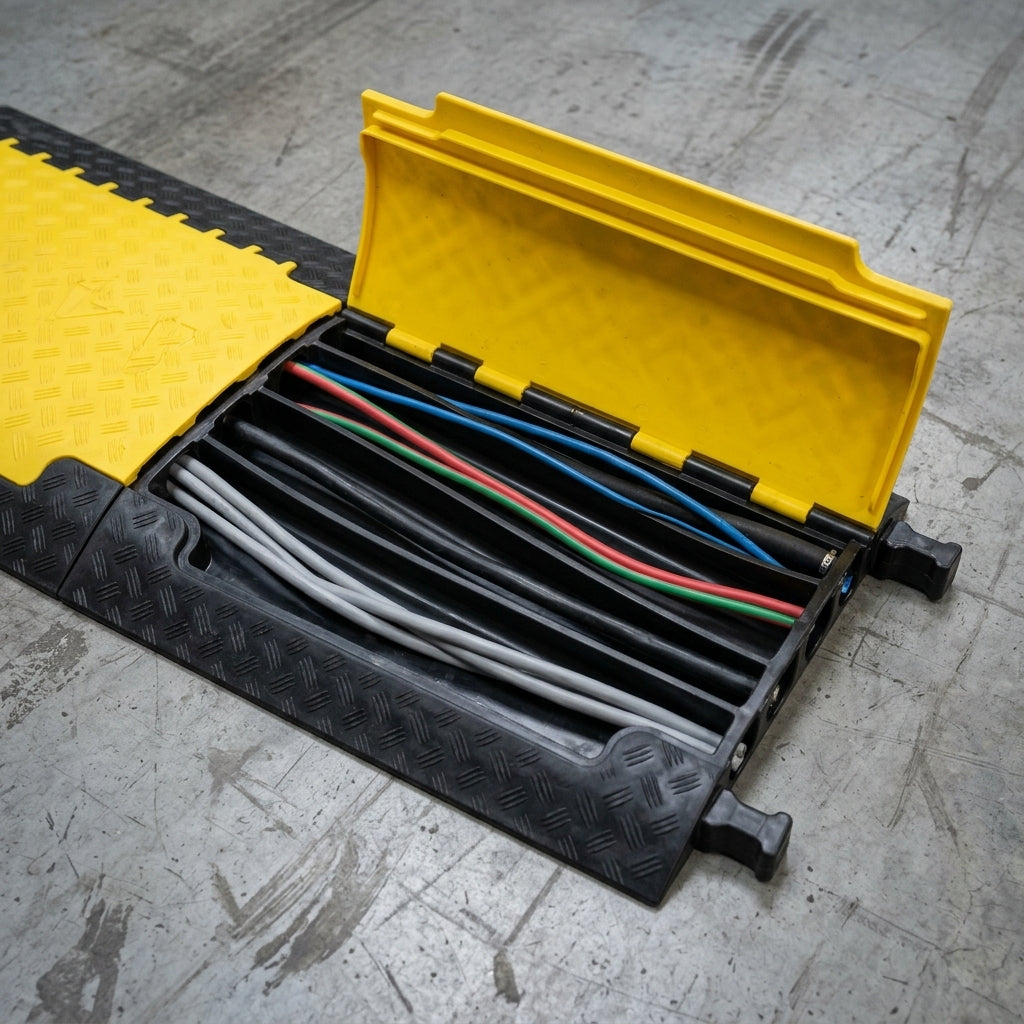

• Hinged lid – rest it on the floor, open the lid, lay in the cables, hoses or wires and close it; the lid locks securely shut. The self-cleaning lid keeps maintenance low.
• Interlocking design – connect several units together to cover the cable length you need.
• Chequered, high-visibility black and yellow anti-slip surface for pedestrians and vehicles.
• Built-in carry handle for easy transport; weighs 21.1kg.
• Smooth surfaces, edges and corners help prevent injuries.
• Suitable for indoor and outdoor use.

• Made from non-breakable, 100% recyclable polyurethane plastic, for industrial use.
• Resistant to oil, acid and petrol, and to short-term contact with solvents.
• Temperature resistant from -30°C to +60°C; Shore A hardness 88 ± 4.
• TÜV SÜD certified; fire protection class E to DIN EN 13501-1 and fire resistance class B2.
• Made in Germany, with a five-year warranty.

• Protects low-voltage cables up to 500V – such as communication, control and power-supply cables – as well as water and sewage pipes and hoses. Not suitable for rigid gas pipes.
• Accessories such as curved sections and end caps are available to fit the protector to your area.
• Check the ground clearance of forklifts and pallet trucks before buying.
• Clean with water or a steam jet cleaner. Keep the hinge area and lid clean, and lightly lubricate the hinges and closure regularly with silicone spray, wiping off any excess so it does not create a slip risk.
