Heavy Duty Aluminium Loading Bridge – 627mm L x 1250mm W, 3420kg, ±75mm Load Height
£1,548.00
Not sure it's the right one?
Tell us where and how it will be used — we'll confirm the right product before you order.
Overview

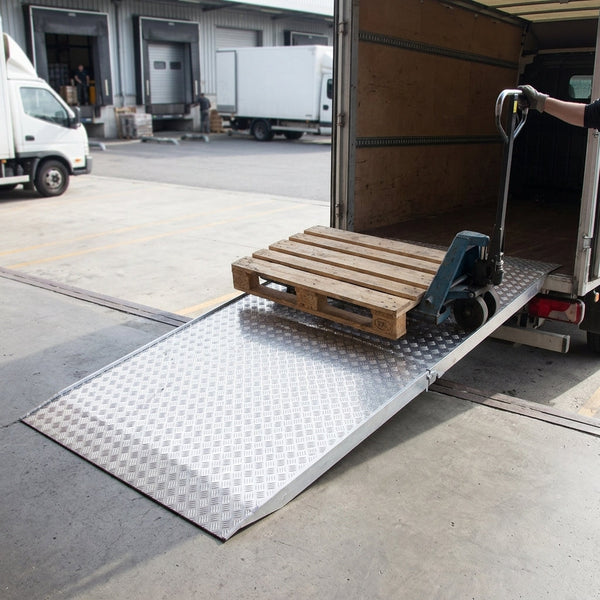

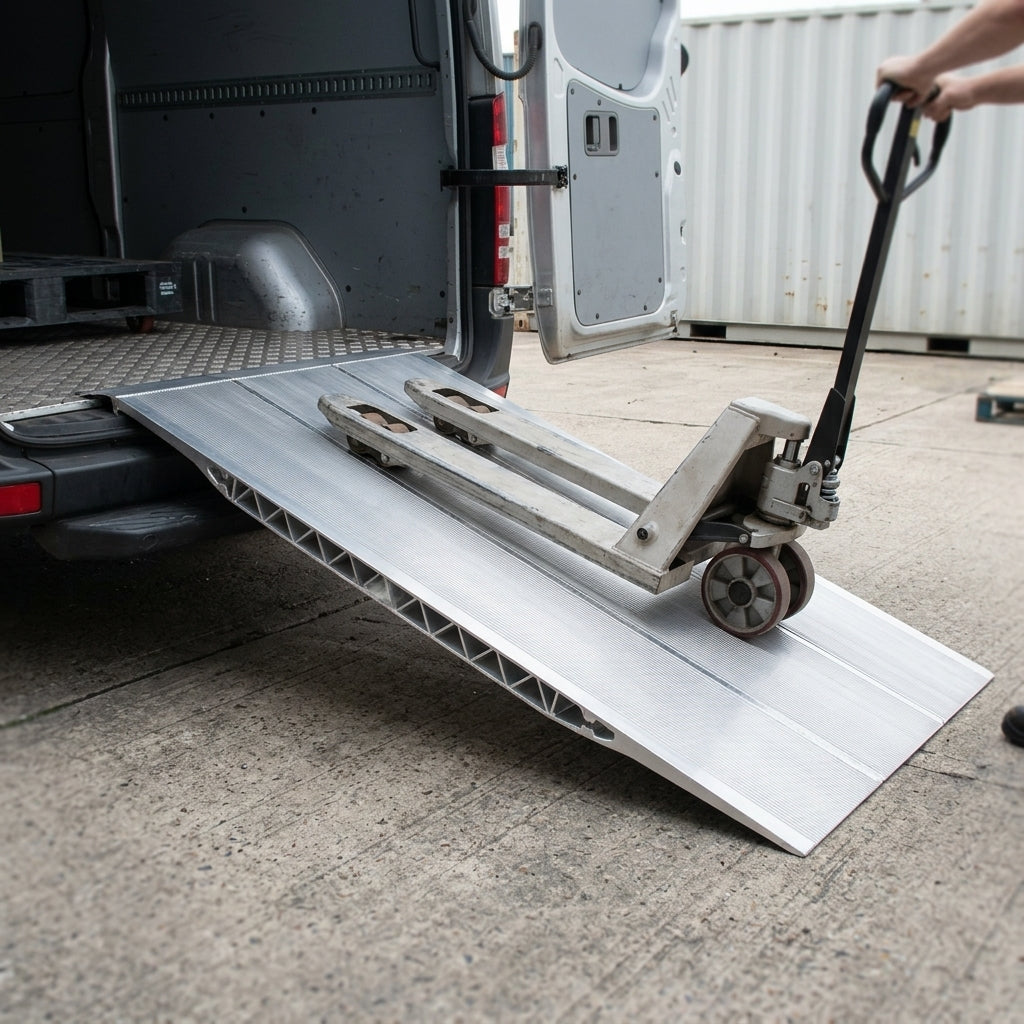

A portable, TÜV-certified heavy-duty loading bridge that lets pallet trucks and forklifts cross from the loading bay onto a vehicle. Handles make it easy to lift into position, and the bridge can be customised to your requirements.
Specifications
| Size | 627mm L x 1250mm W |
|---|---|
| Length (mm) | 627 |
| Width (mm) | 1250 |
| Capacity (kg) | 3420 |
| Max Load Height (mm) | 75 |
| Min. Load Height (mm) | -75 |
| Weight (kg) | 22 |
| Two Year Warranty | Yes |
| Customisable | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
| Colour Options | Black |
Features
- Highly durable anti-slip surface.
- Ideal for pallet trucks with low ground clearance; suitable for manual pallet trucks, electric pallet trucks and forklifts within the stated capacity.
- Made from lightweight aluminium (type 6005A).
- Robot welded for a solid, strong and durable build.
- Lightweight for easy handling, with a grab handle.
- Fully TÜV certified.
- European made, with a two-year warranty.
Size & Capacity
- Total length 627mm x width 1250mm; weight 22kg.

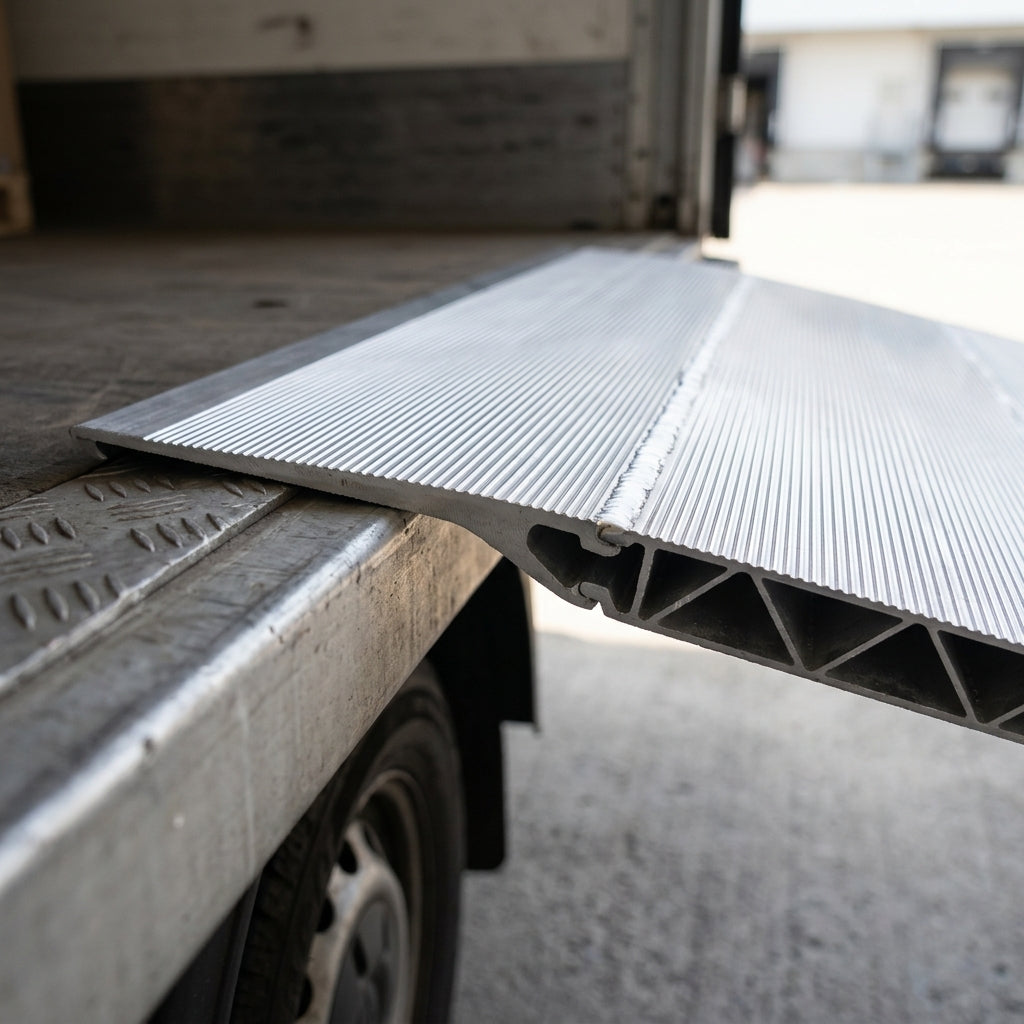

- The lips on each side of the reinforced central section, which rest on the loading bay and the vehicle, are 250mm each as standard.
- Capacity 3420kg.
- Load height from -75mm to +75mm.
Customising
- Lengths from 627mm to 1002mm are available, such as our 1002mm loading bridge. Width is fully customisable (minimum 1250mm).
- For a custom bridge, have ready your load height (the height difference between the loading bay and the vehicle), what you are loading, the maximum load weight and, where relevant, your preferred width.
