3-Part Fixed Folding Van Ramp – 900mm Internal Width, 2530mm to 4330mm Long, 400kg Mesh Surface

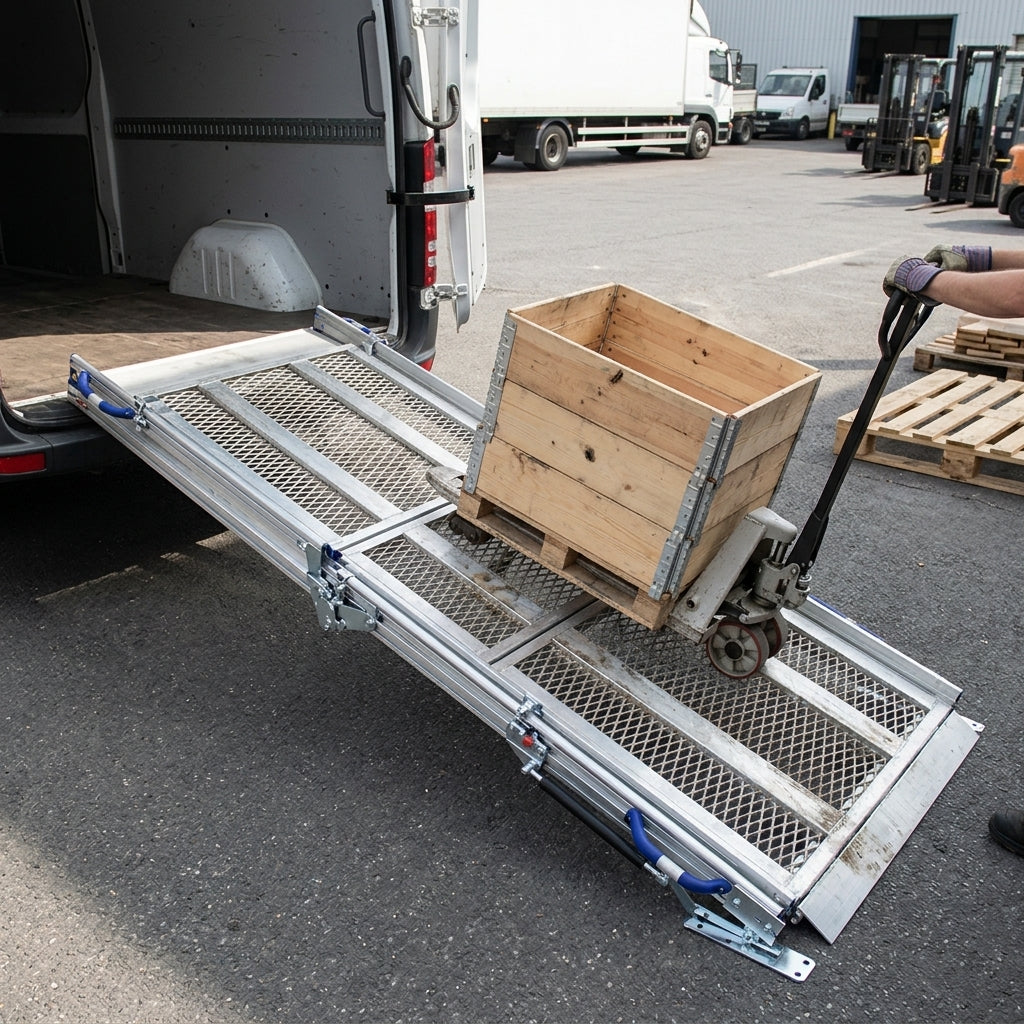

A wide three-piece aluminium folding ramp that fixes into your van, made for higher load heights and for anyone who needs a gentler gradient. Use it to load equipment, goods, motorbikes, lawnmowers, events equipment, healthcare equipment and mobility scooters, as well as low-clearance items, hospital beds and occupied mobility scooters. With lengths up to 4330mm, a 900mm internal width and a 400kg capacity, it is built for regular use and removes the need to position portable ramps by hand, cutting physical strain and making loading quicker. Made in Sweden to the highest standards and designed to suit most vehicles.

• Perforated mesh anti-slip surface gives excellent grip in all weather, including wet or muddy conditions, and improves the driver's visibility.
• Transition plates and an improved connection give a smooth, bump-free move from the ground onto the ramp and into the vehicle; the tapered design helps too.
• Lateral safety edges stop equipment from accidentally wheeling off the sides.

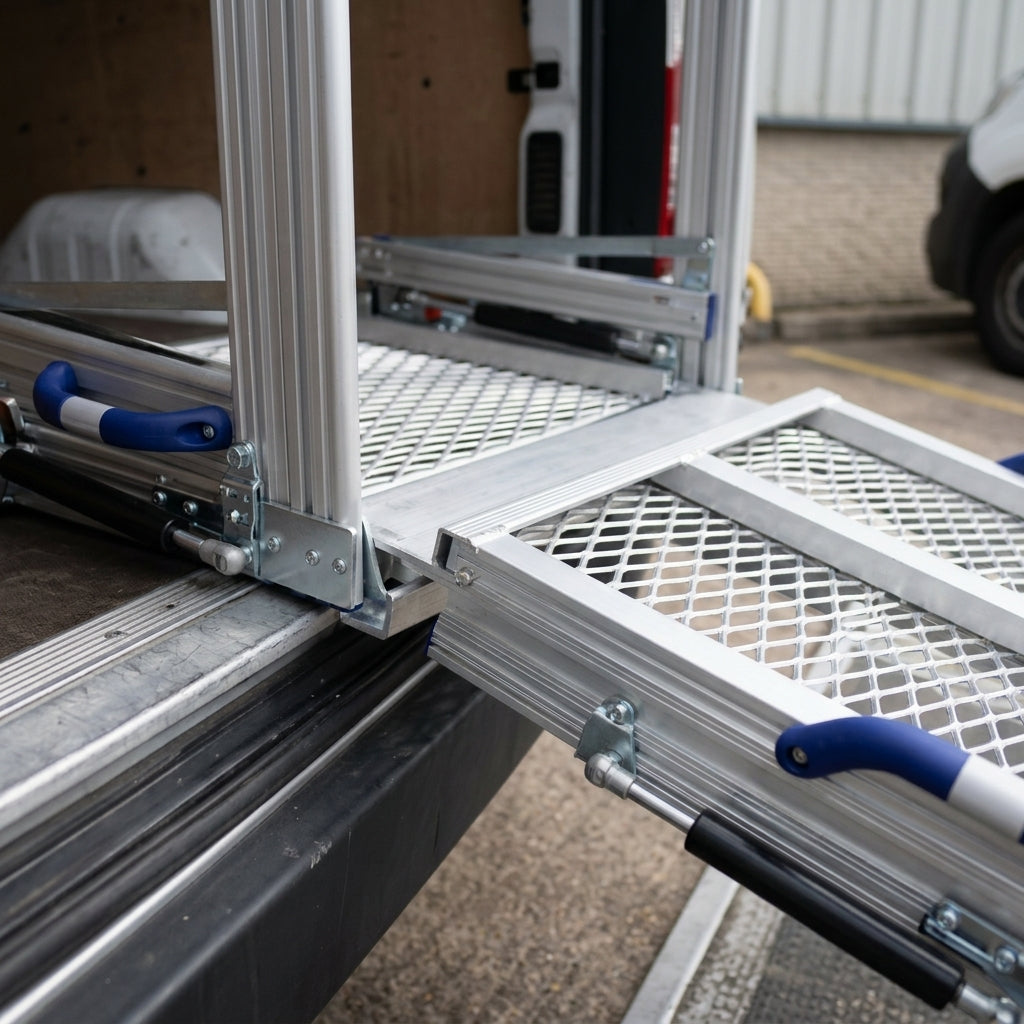

• Side-mounted handles and high-performance gas struts that counterbalance the weight make the ramp easy to unfold and fold away.
• When stored, the ramp clips securely shut so it cannot open in transit.
• Integrated wheels make folding and unfolding easier.
• Non-lubricated joints for long-term, low-maintenance use.
• Lightweight, strong and durable, with robot-welded construction.
• Manually operated.

• TÜV certified to a 400kg capacity.
• Crash Test Approved in line with UN/ECE Regulation No. 17.
• Classified as a Class 1 Medical Device.
• Three-year manufacturer's warranty.

Every length has a 900mm internal width, a 320mm depth and a 400kg capacity.

• 2530mm long: 961mm folded height, 38kg
• 2830mm long: 1061mm folded height, 40kg
• 3130mm long: 1161mm folded height, 46kg
• 3430mm long: 1261mm folded height, 47kg
• 3730mm long: 1361mm folded height, 50kg
• 4030mm long: 1461mm folded height, 53kg
• 4330mm long: 1561mm folded height, 54kg

• Fixing kit and brackets are included, and fitting takes less than 30 minutes. Instructions are supplied, so you or a general handyman can fit it.
• Designed to clear most bumpers, crash bars, steps and tow bars.
• Can be fitted to the rear or, where there is enough space, the side door of a van.
• To fit the ramp without drilling holes in your van, use the adapter plate for folding van ramps.
• Can be removed and moved to another vehicle of a similar size, for example if you sell your van.

• The maximum load height is based on a 33% gradient, the steepest recommended for loading. Low-clearance items and occupied mobility aids need a gentler gradient.
• The maximum load height may vary depending on your vehicle.
• To find the right ramp, check your load height, the internal height and internal width of your vehicle, and what you are loading and its weight.
• Custom lengths, widths and capacities are available, as is a tight mesh surface. Inward swivel-mount ramps are also available; they pivot to the side so you can reach the inside of the van when the ramp is not in use.
• Pictures are for illustration only; the actual product may vary due to product improvements.
