Aluminium Channel Loading Ramps (Pair) 1000mm to 3500mm – 246mm Wide, Up to 1500kg, TÜV Certified R12

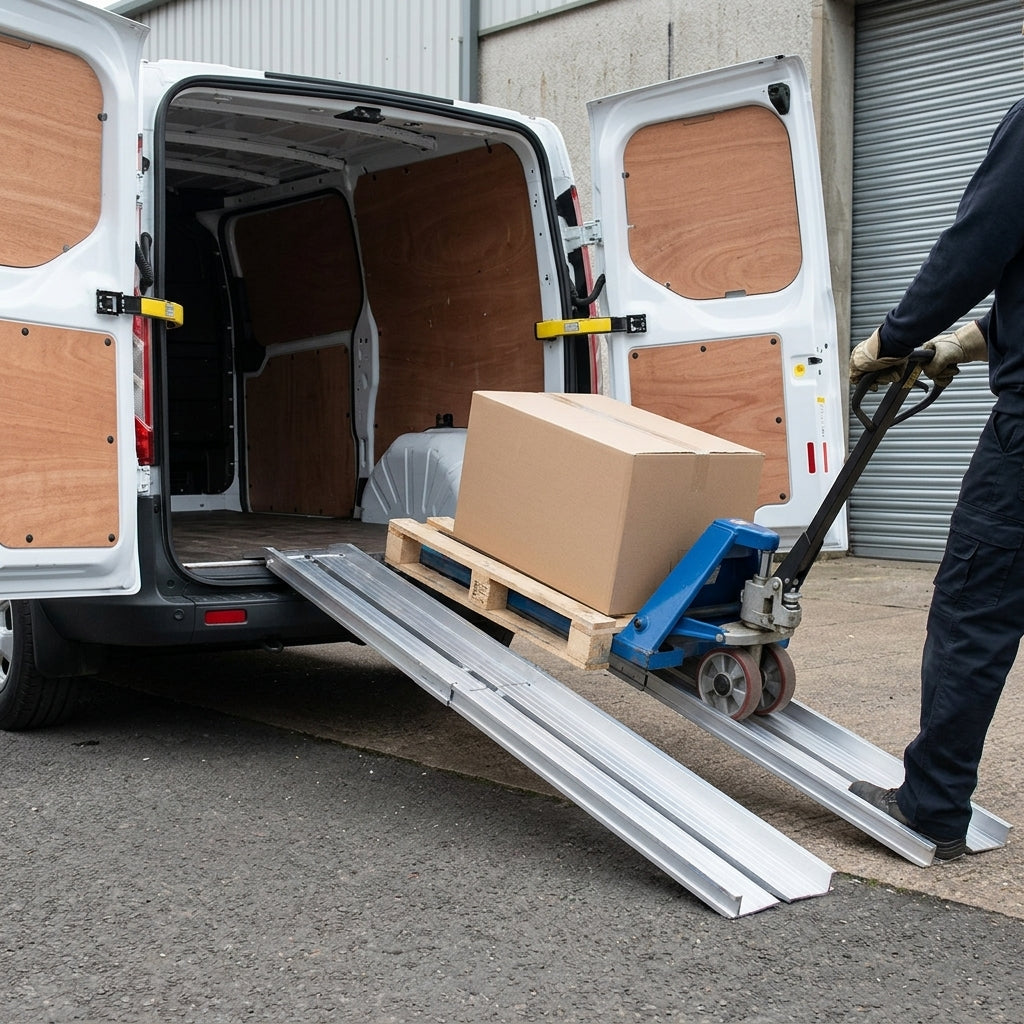

A pair of lightweight aluminium channel loading ramps in lengths from 1000mm to 3500mm, with a capacity of up to 1500kg across the pair. With safety edges on both sides, they are ideal for loading trolleys, goods, equipment, electric generators, compressors, wheelbarrows, lawnmowers and similar items into vehicles or over steps, for commercial or domestic use. The ramps are TÜV certified and have an R12 slip-resistant surface. Sold as a pair.

• Rest-on connection: simply rest the ramps in place and start loading.
• Extended connection terminal bridges most bumpers, crash bars and tow bars.
• No vehicle modification or installation needed.
• Made from lightweight type 6005A aluminium; each ramp weighs 4.5kg to 14kg depending on length, so they are easy to lift, store in a van or trailer, and handle alone, helping workplaces meet manual handling requirements.
• Fully TÜV certified loading capacity of up to 1500kg per pair.

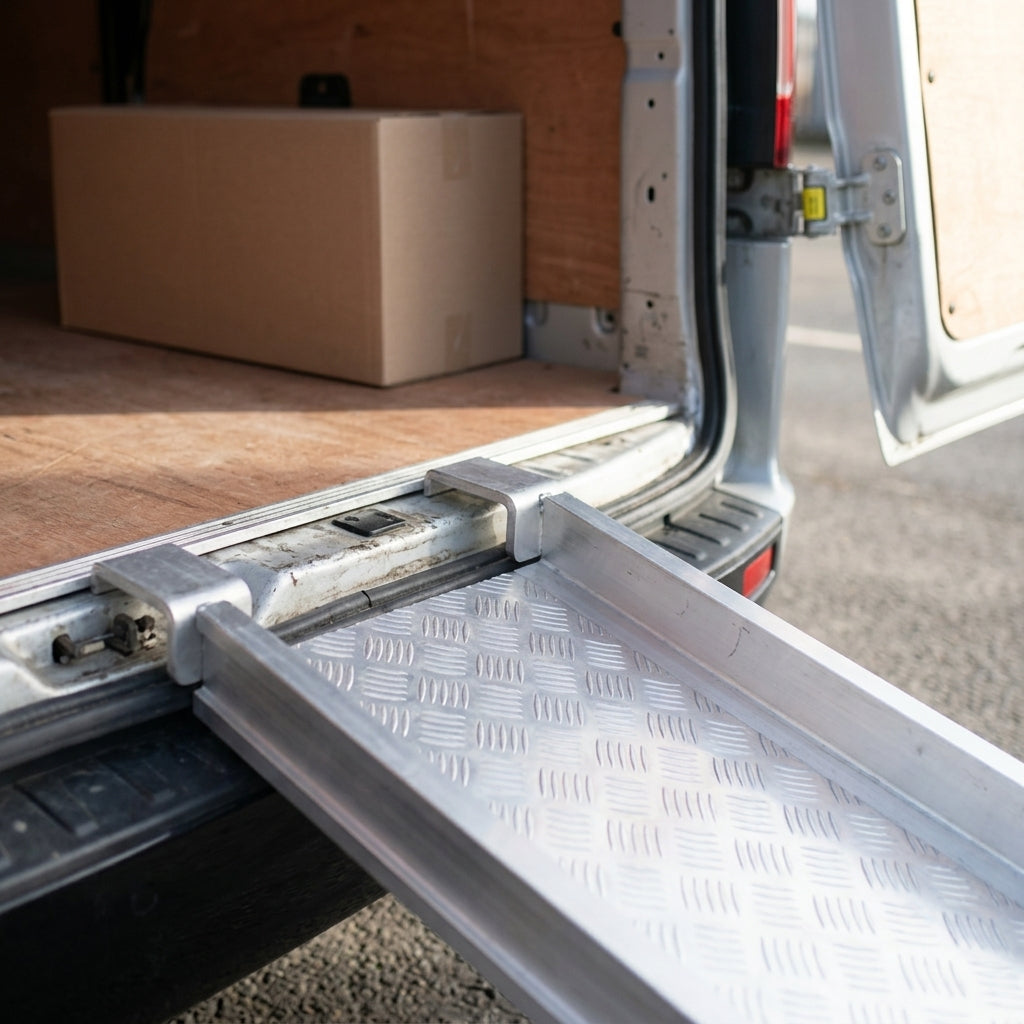

• Virtually zero flex under heavy loads; the curved rest-on connection keeps the ramps securely in place and helps protect your vehicle from damage.
• 45mm high safety edges on each side stop items wheeling off during loading.
• Premium R12 slip-resistant (DGUV 108-003) surface helps stop users and items slipping.

• The ramps are designed for a specific load height to give a smooth, safe gradient: capacity runs from 1500kg down to 485kg and maximum load height from 300mm to 1050mm, depending on length.
• Check your item's ground clearance against the 45mm raised edges. For low-clearance items such as flight cases and cages, a single wide van ramp or a pair of loading ramps with one or no edges is usually a better choice.

• Can be customised to your requirements.
• Folding versions available on request (reduced capacity of 300kg across the pair).
• Multi-section channel ramps with a bayonet fitting available on request.

• Made in Italy (European made) to high standards. Easy to fit.
• Two-year warranty.
• Images are for illustration only; the actual product may vary due to product improvements.
