Folding Drive-In Threshold Ramp – 80mm or 150mm Load Height, 750mm W, 300kg
Not sure which height you need?
Send us your threshold height and width — we'll confirm the right ramp before you order.
Overview

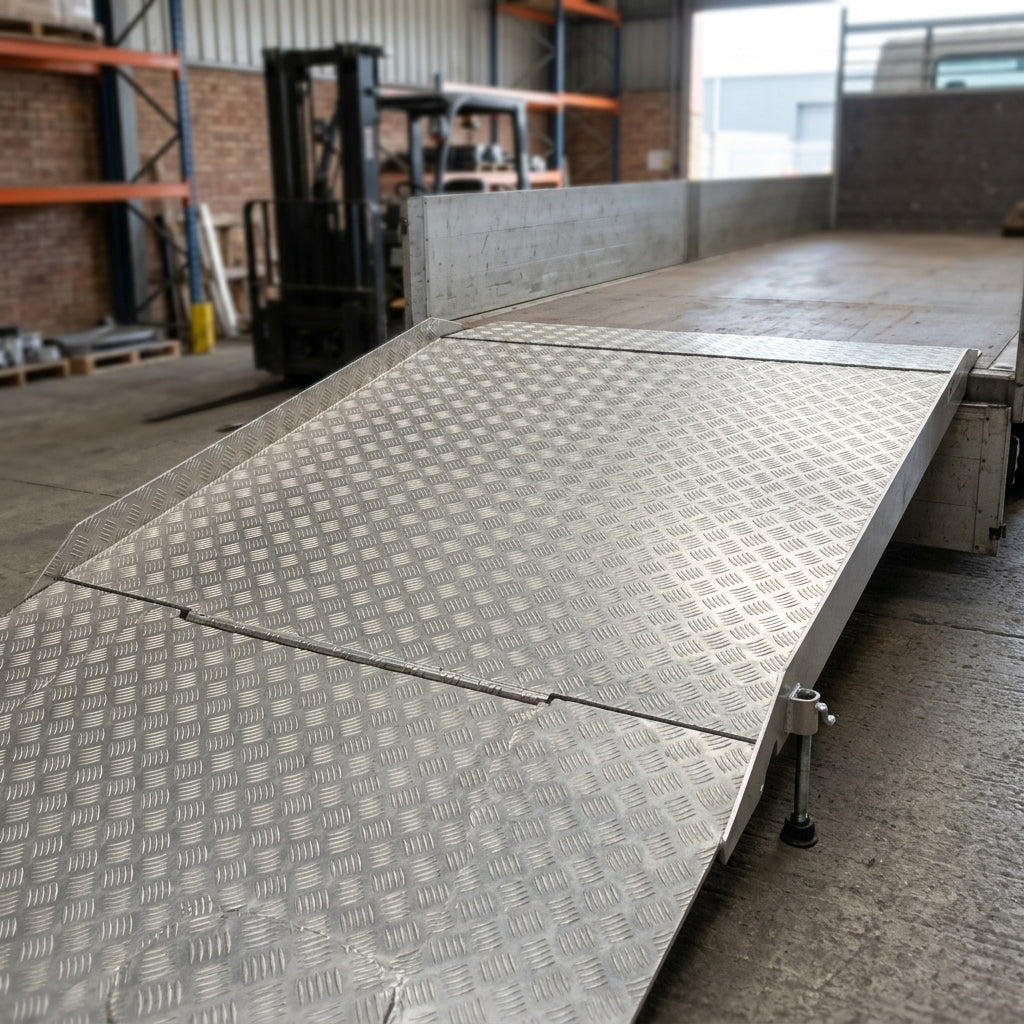

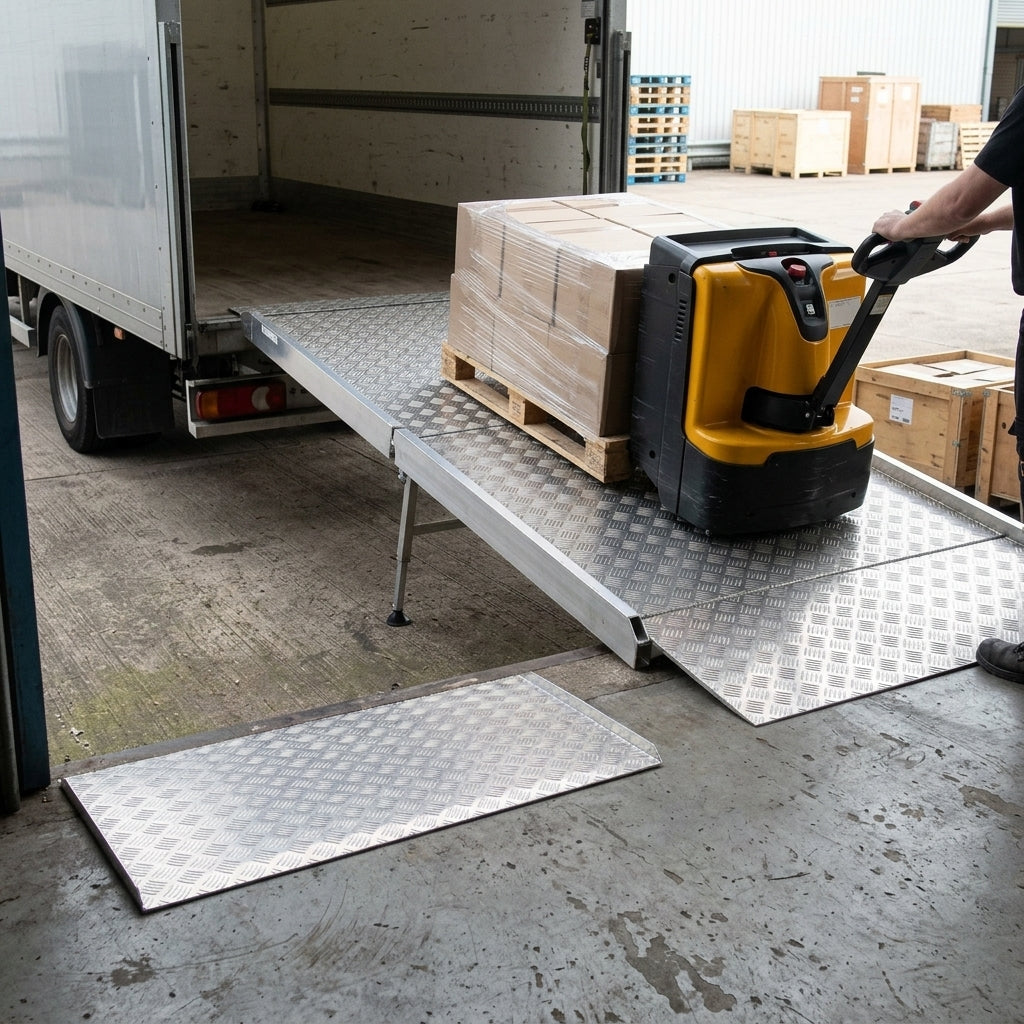

A two-part, hinged aluminium drive-in ramp for uPVC doorways, sliding and patio doors and thresholds – including doorways where the height is different on each side. Set the legs to your threshold height, flip the inner entry plate over the doorway and go. When you need to close the door, simply fold the entry plate back onto the main ramp – there is no need to lift the ramp away, making it ideal for temporary or permanent use and for anyone who finds lifting a ramp difficult.
Specifications
| Ramp Height Option | 80mm H – Main Ramp 800mm L + Entry Plate 450mm L x 750mm W |
|---|---|
| Height (mm) | 10 |
| Length (mm) | 800 |
| Length Section (mm) | 450 |
| Total Width (mm) | 750 |
| Capacity (kg) | 300 |
| Max Load Height (mm) | 150 |
| Min. Load Height (mm) | 50 |
| Weight (kg) | 10 |
| Three Year Warranty | Yes |
| Easy to Fit | Yes |
| Electric Wheelchair | Yes |
| European Made | Yes |
| Manual Wheelchair | Yes |
| Mobility Scooter Friendly | Yes |
| Leave Outside | Yes |
| Colour Options | Black |
Features
- 300kg capacity – suitable for manual and electric wheelchairs, mobility scooters and walkers.
- Height adjustable support legs adapt to thresholds up to 150mm for a comfortable, smooth transition.
- Bridges door sills and frames while protecting the door frame from the weight of the mobility aid.
- Full-width chequered/corrugated plate surface for very good skid resistance, with safety edges on the main ramp.
- The inner ramp has a pre-drilled hole so a handle can be fitted for users who cannot easily bend down or lift the ramp.
- Lightweight (10kg – 13kg), portable and folding; suitable to be left outside and for indoor or outdoor use.
- Premium European (Swedish) manufacture; classified as a Class 1 Medical Device.
- Three-year warranty.
Sizes
- 80mm version: main ramp 800mm long.
- 150mm version: main ramp 1250mm long.
- Entry plate (inner, shorter ramp): 450mm long, maximum load height 75mm.
- Total width 750mm; load height from 50mm to 150mm.
Good to Know
- Quick and easy to assemble – no tools needed, usually under 15 minutes.
- Designed as a portable ramp with no fixing points; if you need to secure a ramp to the ground, or need a higher height, choose the adjustable threshold ramp with entry plate.
- Because of the safety edges, it may not work well on outward-opening doors.
- Only suitable for use as a mobility aid.
- Product images are for illustration only; the actual item may vary slightly as the design is improved.
