Extra-Wide Hydraulic Mobile Container Yard Ramp 11260mm x 2460mm – 7,000kg or 10,000kg
£38,316.00
Not sure it suits your forklift?
Send us your dock height and forklift weight — we'll confirm the right ramp before you order.
Overview

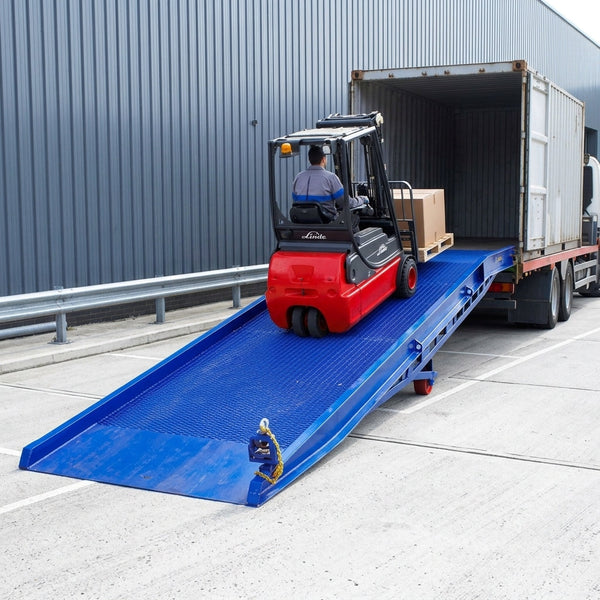

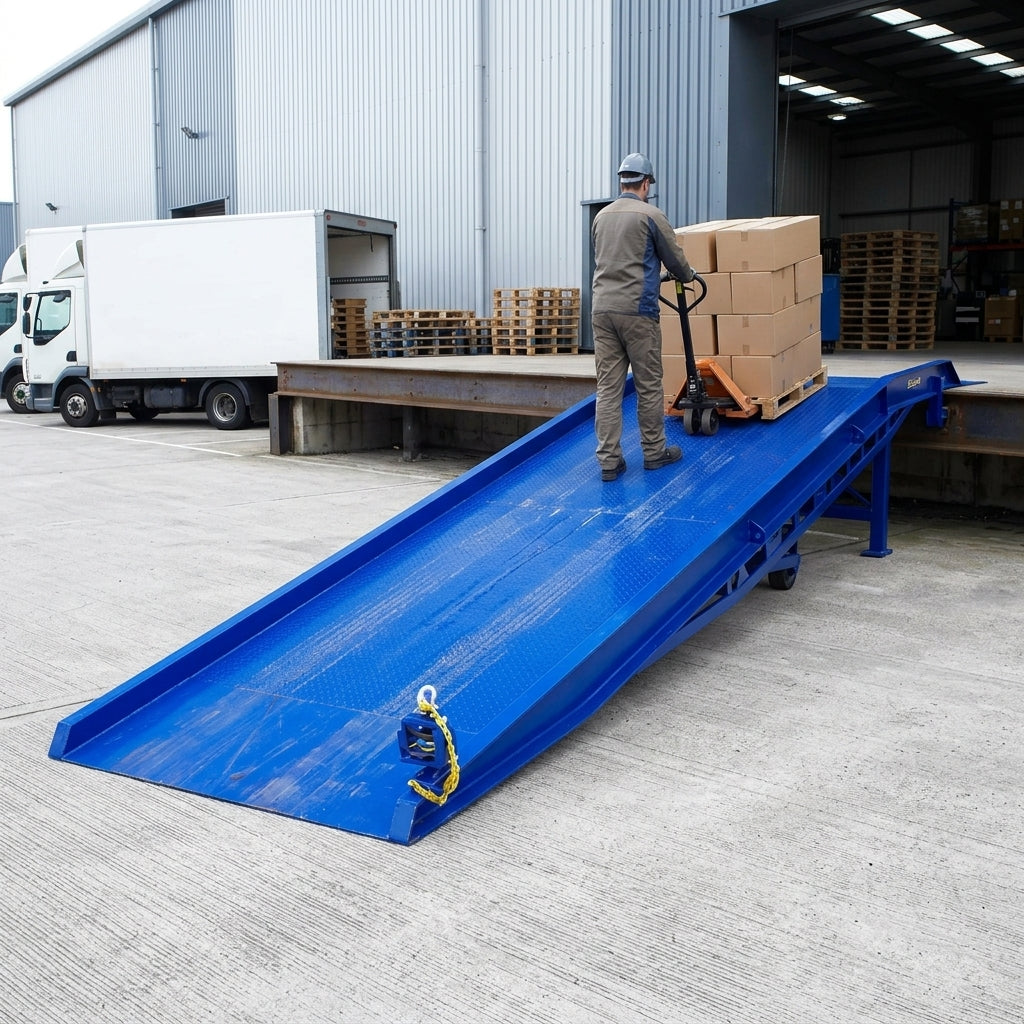

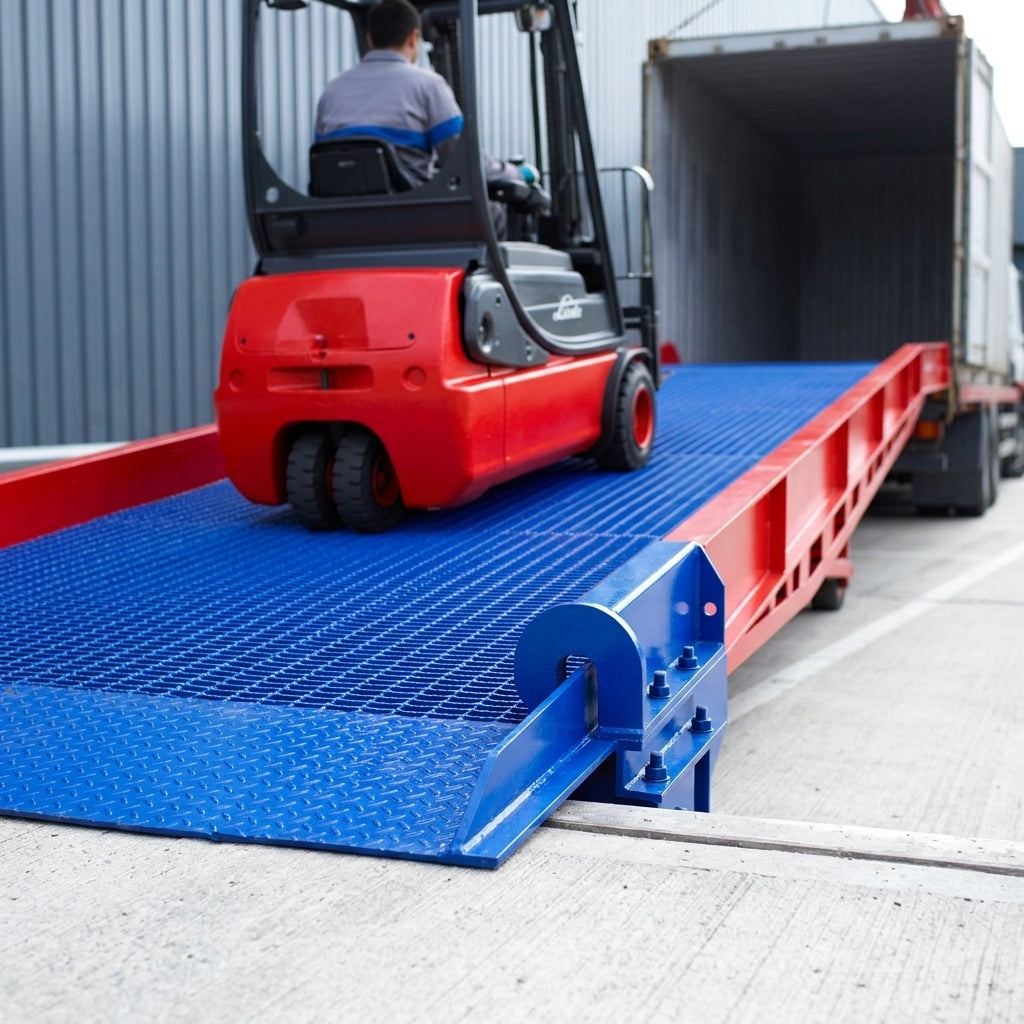

A heavy-duty, CE-marked extra-wide yard ramp and mobile dock ramp for safely loading and unloading shipping containers, trailers and loading docks with forklifts. The extra width makes it easier to load wider machinery, and it can also be used for cars. Made from durable steel, it is ideal for warehouses, industrial sites, distribution centres, logistics centres and loading bays without a permanent loading bay or dock leveller. Choose 7,000kg or 10,000kg capacity, with or without handrails.
Specifications
| Handrail Options | Handrails – 11260mm L x 2460mm W (2260mm Usable W) |
|---|---|
| Capacity | 7000kg |
| Height (mm) | 800-1650 |
| Internal Width (mm) | 2260 |
| Length (mm) | 11260 |
| Platform Length (mm) | 2520 |
| Total Width (mm) | 2460 |
| Width (mm) | 2460 |
| Usable Width (mm) | 2260 |
| Capacity (kg) | 7000 - 10000 |
| Inclined Section (mm) | 8440 |
| Max Load Height (mm) | 1650 |
| Min. Load Height (mm) | 800 |
| Weight (kg) | 3600 - 4050 |
| One Year Warranty | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
| Leave Outside | Yes |
| Colour Options | Black |
Features
- Easy to move: supplied on wheels with a fixed swivel clamp and fork mount, so a forklift can manoeuvre it into position.
- Hydraulic assist lets you quickly adjust the ramp to the container height, anywhere from 800mm to 1650mm.
- Heavy-duty steel safety chains and clamps secure the ramp to the container during loading, and the extended 2260mm x 300mm rest-on lip keeps it firmly in place.
- Smooth, gradual slope of roughly 10% (it varies with the height of the lorry), designed for forklifts and pallet trucks with low ground clearance so they do not ground out. This suits most forklifts.
- High-traction, UK-produced anti-slip mesh surface keeps grip in all weather, and integrated safety edges stop vehicles veering off the side.
Build Quality
- Side profiles made from a single piece of UK-produced steel for top performance, durability and safety, on a reinforced steel undercarriage.
- Fully certified and tested, and CE marked. European made.
- Can be left outside. Easy to fit. Black finish.
- One-year warranty.
Sizes
- Total length 11260mm: 8440mm inclined section plus a 2520mm level (platform) section.
- Total width 2460mm, with a 2260mm usable width.
- Weighs 3600kg to 4050kg depending on capacity.
Good to Know
- Wheel chocks are available at extra cost for added security while the ramp is parked and not in use.
- Inspect the ramp regularly. An annual service is recommended to keep it safe and to comply with PUWER regulations.
- On-site training on using the ramp is available at extra cost.
- Pictures are for illustration only; the actual product may vary due to product improvements.
Load height checker
Measure straight up from the ground to where the ramps will rest on your vehicle or trailer.
