Mobile Steel Yard Ramp with Hydraulic Assist – 11260mm L x 2260mm W, 800-1650mm Height, 10,000kg

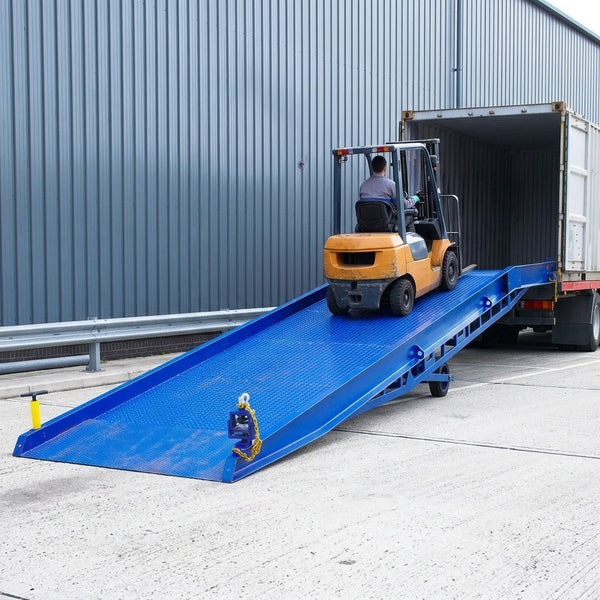

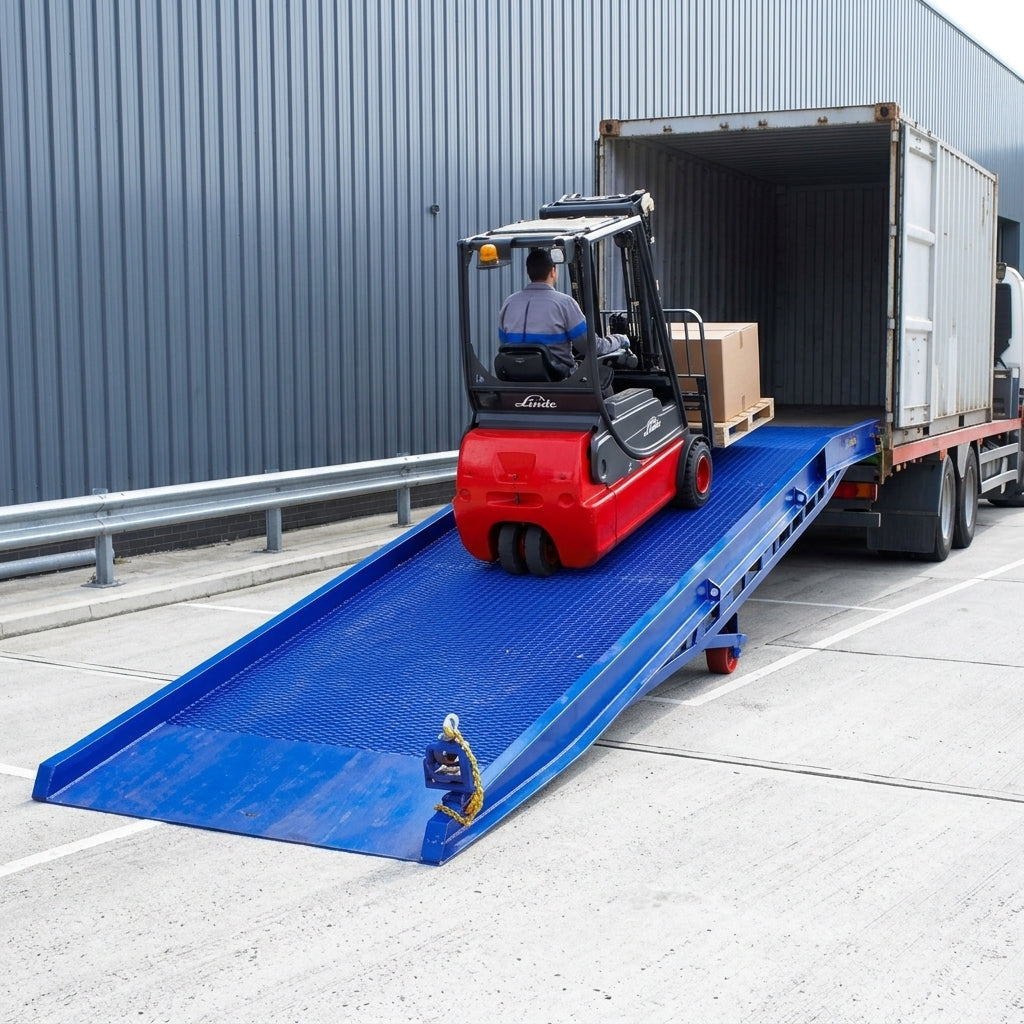

A CE-marked mobile steel yard ramp that makes loading and unloading containers quick and easy, meeting the latest European standards and directives. Rated to 10,000kg, it measures 11260mm long with a 2260mm outer width. The fixed swivel clamp lets you move the ramp into position with a forklift, while the hydraulic assist makes it simple to set the load height anywhere from 800mm to 1650mm.

• 10,000kg capacity; outer width 2260mm, internal width 2060mm; ramp height 800mm.
• Hydraulic assist for easy height adjustment between 800mm and 1650mm.
• Fixed swivel clamp / fork mount so the ramp can be repositioned with a forklift.
• Side profiles made from a single piece of steel for top performance, durability and safety.
• Reinforced steel undercarriage.

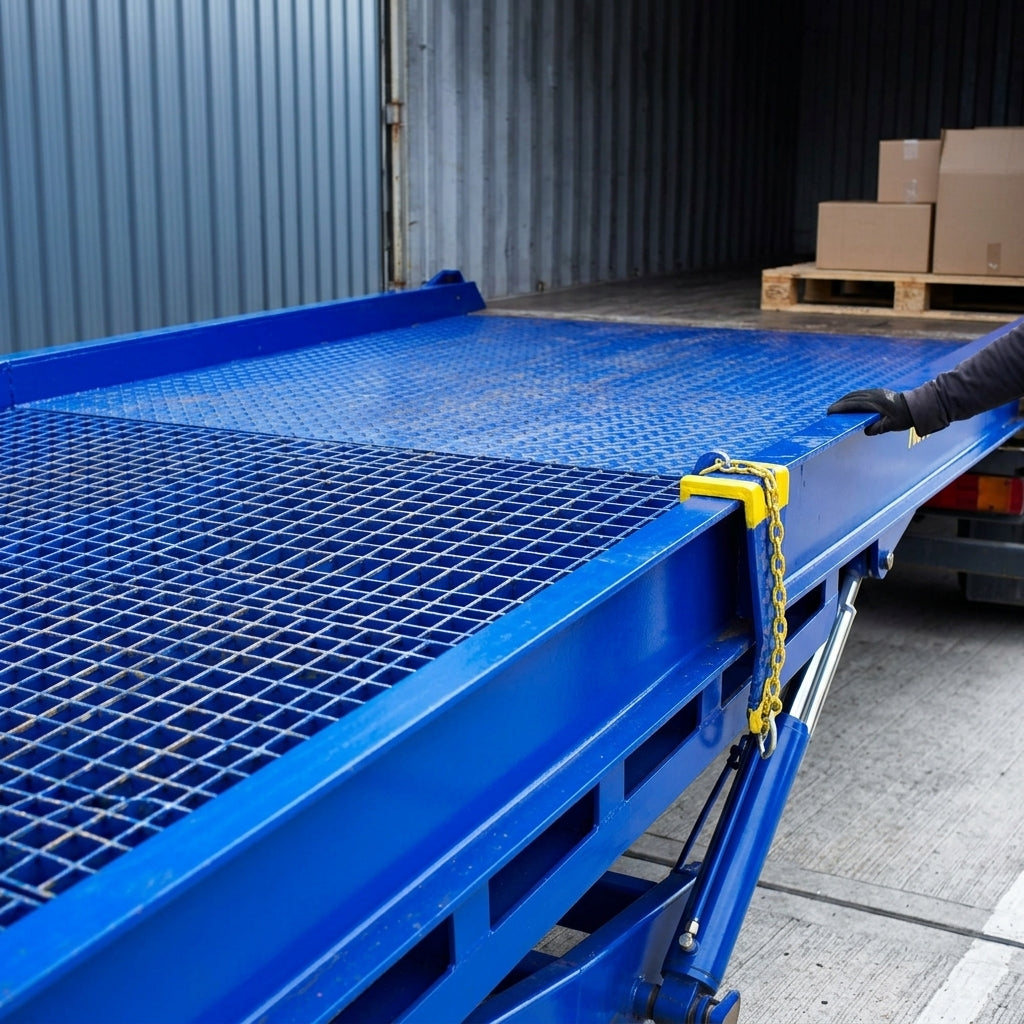

• High-traction, UK-produced anti-slip mesh surface.
• Fully certified and tested. European made. Weight 3800kg; can be left outside.
• One-year warranty.

• Swivel fork mount, steel chains and clamps, hydraulic assist and wheel chocks.

• Customisable – handrails can be added on request (quoted separately).
• The gradient is roughly 10%, suitable for most forklifts; it varies with the height of the lorry.
• Inspect the ramp regularly. An annual service is recommended to keep it safe and to comply with PUWER regulations.
• Pictures are for illustration only; the actual product may vary slightly due to product improvements.
