Heavy Duty Aluminium Plant Loading Ramps (Pair) – 4500mm L x 510mm W x 170mm Profile, 5760kg

A pair of heavy-duty plant ramps in aluminium, 4500mm long and 510mm wide with a 170mm profile, rated to 5760kg for the pair. They are made for plant machinery, diggers and telehandlers. Among the best-selling heavy-duty ramps in the range, they are over half a metre wide.

• Maximum capacity 5760kg across the pair. Capacity depends on the machine's wheelbase: 4110kg at 1000mm, 4800kg at 1500mm, 5760kg at 2000mm.
• The stated capacities apply only where the vehicle's weight is spread evenly; if your machine carries more weight over one end, ask us to check suitability before ordering.
• Tracks or wheels must be at least 200mm wide, up to a maximum of 430mm.
• Suits a load height of 1200mm to 1350mm (measured from the ground to the point where the ramps rest).
• Each ramp weighs 65kg (130kg per pair).
• Not suitable for the solid wheels found on road surfacing machines; steel-tracked machinery needs industrial ramps with a suitable surface.
• Fully TÜV certified.

• Supplied as standard with a rest-on connection.
• Four connection options are available. To change from the standard rest-on connection, for example to a hook connection, let us know after you order.

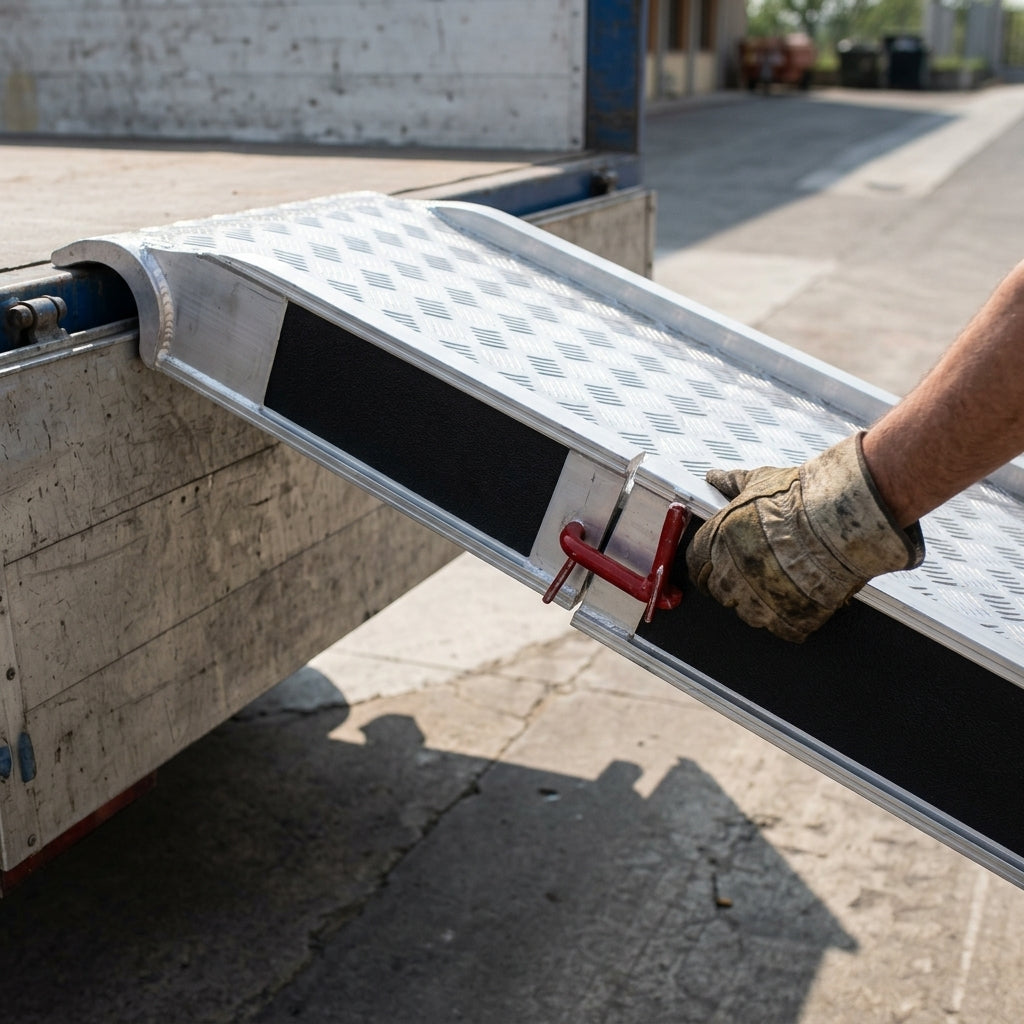

• The curved rest-on lip has a pre-drilled hole for securing the ramp to the vehicle. The angled foot keeps the ramp on the ground, while its own weight and gradient hold it firmly in place.

• Built without side edges as standard; versions with edges are also available.
• Customisable: custom load heights and custom-built sizes are available on request.
• Quotes for bespoke ramps are available on request.
• Easy to fit, made in Europe and covered by a two-year warranty.

• Sold as a pair; the price and capacity shown are for both ramps.
• Product images are for illustration only; the actual product may differ slightly due to ongoing improvements.
