Heavy-Duty Interlocking Cable Protectors – 1, 2, 3 or 5 Channels up to 90mm x 85mm, 12,000kg+
£108.00
Not sure which size you need?
Send us your cable or hose diameters and traffic type — we'll confirm the right protector before you order.
Overview

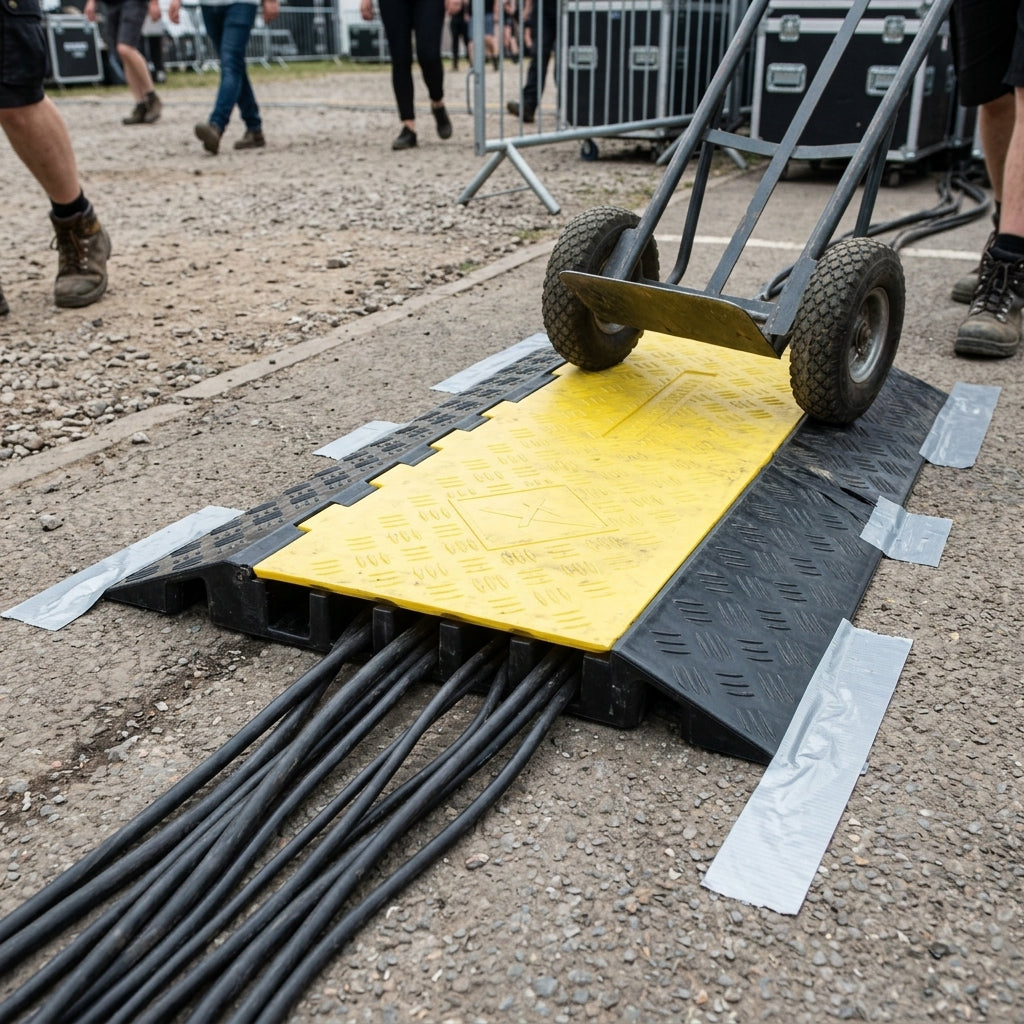

Heavy-duty cable protectors with 1, 2, 3 or 5 channels, rated up to 12,000kg for both vehicle and pedestrian traffic. They protect cables and hoses from pedestrians, cars and vans while slowing vehicles down to improve road safety. Ideal at events, in car parks, on driveways, forecourts and business parks, in the workplace and during maintenance work, with channels up to 90mm x 85mm (depending on the model) for electrical, armoured, EV charging, power and camlock cables. For indoor and outdoor use.
Specifications
| Number of Channels and Channel Size | 1 channel (50mm x 50mm) |
|---|---|
| Height (mm) | 50 - 105 |
| Length (mm) | 880 - 900 |
| Width (mm) | 320 - 610 |
| Channel Size (mm) | 50mm x 50mm / 90mm x 85mm / 64mm x 54mm / 31mm x 44mm |
| Capacity (kg) | 12,000 - 20,000 |
| Weight (kg) | 8.6 - 28.5 |
| One Year Warranty | Yes |
| Easy to Fit | Yes |
| High Visability | Yes |
| Leave Outside | Yes |
| Cable Protector Color | Black and Yellow |
| No. Channels | 1 - 5 |
| Capacity per Axle (kg) | 10,000 - 12,000 |
| Capacity per Tyre (kg) | 3100 - 6000 |
| Speedlimit (mph) | 5 |
| Colour Options | Black |
Features
- Interlocking design: join several units together to cover the cable length you need.

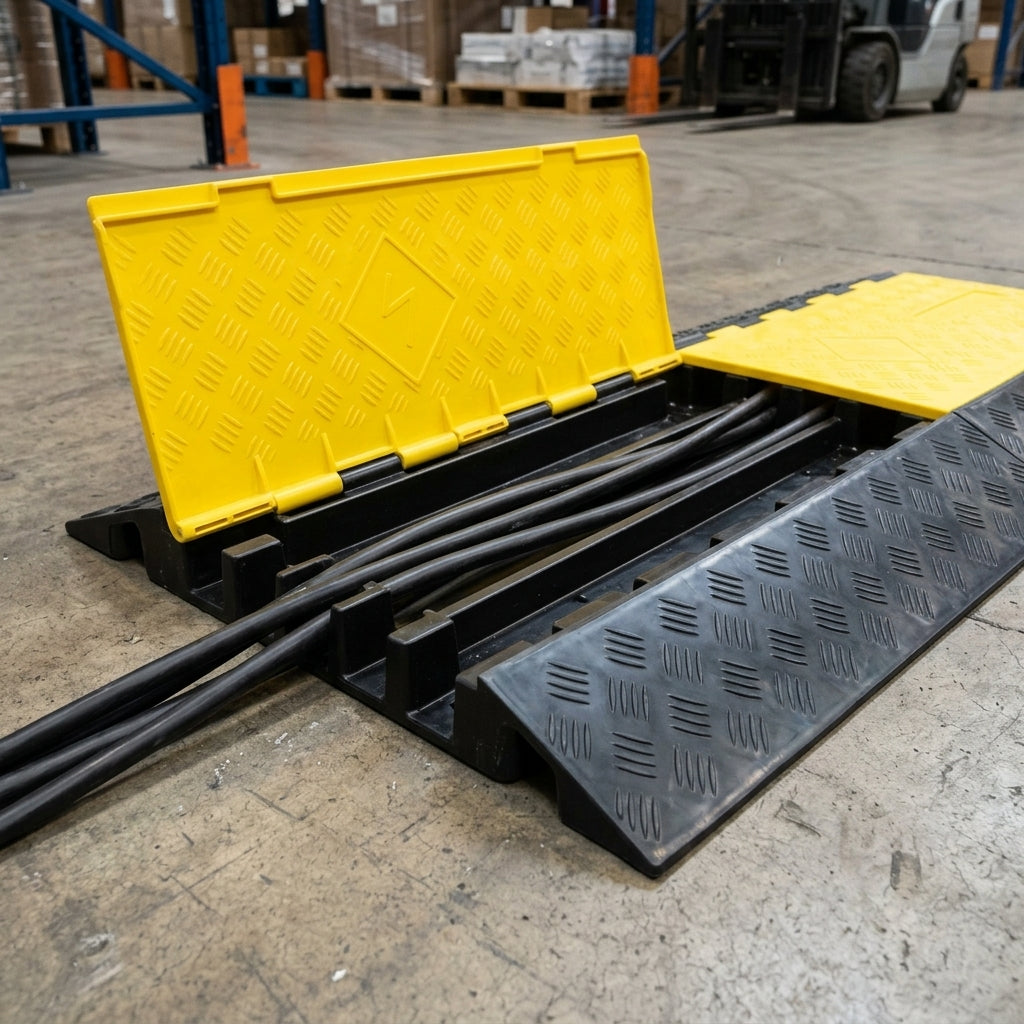

- Hinged lid: just open it and lay the cables inside.
- No installation: rest it on the ground and insert the cables. Remove and store it away when not needed.
- High-visibility black body with a yellow lid alerts pedestrians and road users and reduces trip hazards.
- Chequered anti-slip surface for strong grip for vehicles and feet.
- Made from thermoplastic polyurethane, reusable and low maintenance for long-lasting cable protection.
- Built for commercial use. Can be left outside. Easy to fit.
- One-year warranty. Bulk discounts are available.
Channel Options
- 1 channel: 50mm x 50mm
- 2 channels: 90mm x 85mm
- 3 channels: 64mm x 54mm
- 5 channels: 31mm x 44mm. The 5-channel version is fully compatible with matching rubber wheelchair ramps for better accessibility.
Safe Use
- Cross at a maximum of 5mph, and do not exceed 5450kg per tyre. Suitable for cars, vans and most HGVs within that limit.
- Using them with speed bump warning signs is recommended to slow traffic and alert road users.
- Choose the lowest height that suits your cables to give the most vehicles enough clearance, and check your vehicle's ground clearance first, as low vehicles may ground out on a cable ramp that is too high.
- There are no pre-drilled fixing points; the protectors stay in place through their weight and non-slip base.
- For larger cables and hoses, see our 2-channel hose protector.
