Truck Dock Steel Platform Ladder – 920mm to 1840mm Platform Height, 750 x 1200mm Platform, 150kg
Not sure it's the right one?
Tell us where and how it will be used — we'll confirm the right product before you order.
Overview

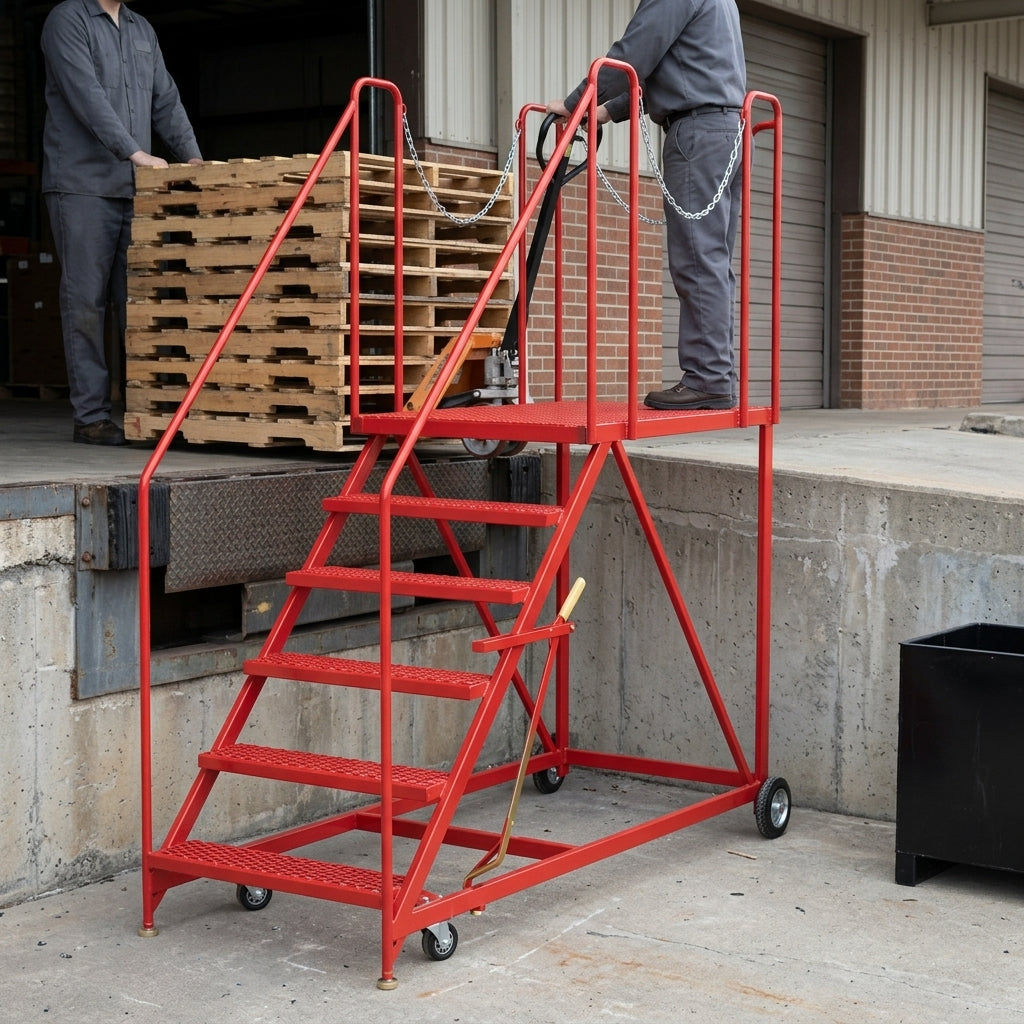

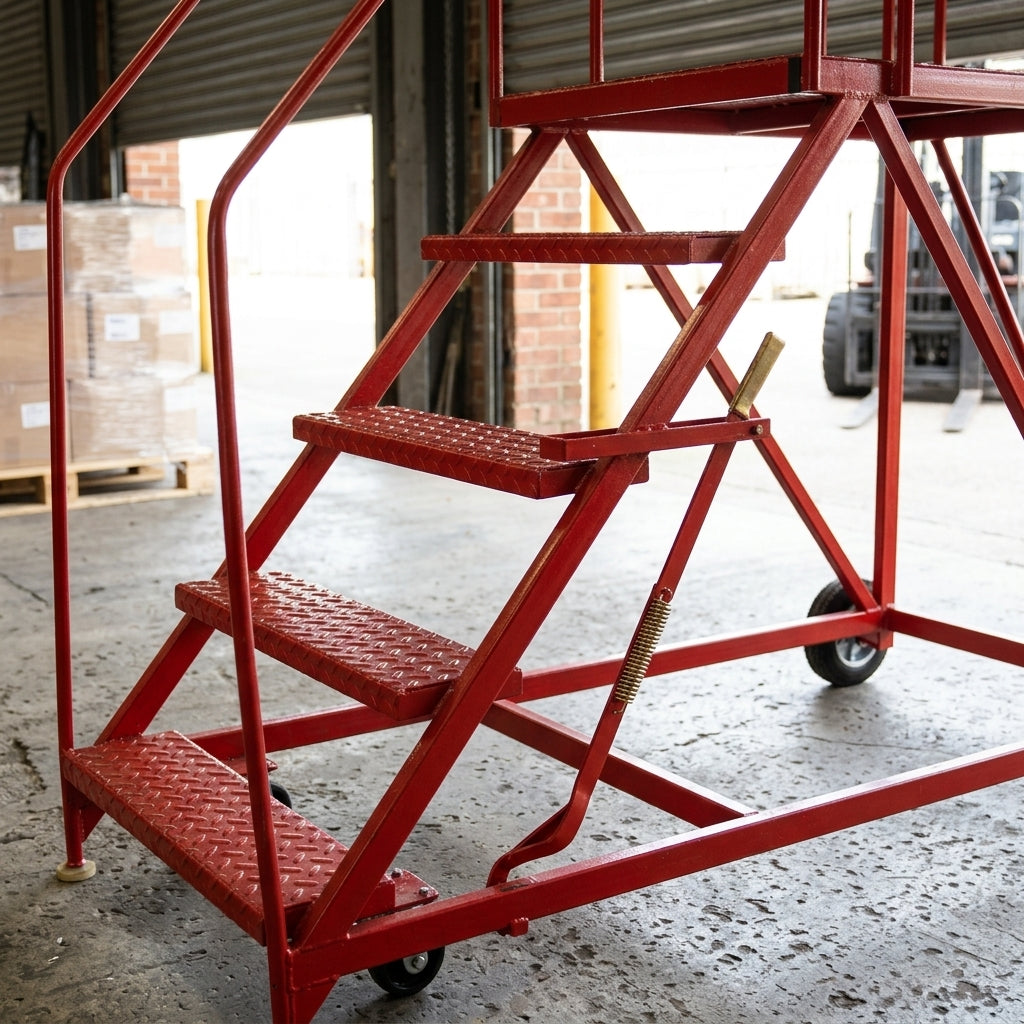

Built from tough steel for intensive industrial use, this truck dock platform ladder gives safe, stable access to working heights of up to 3.4 metres. Its gentle incline makes loading easy, the extra-large platform gives you a roomy, secure place to work, and three chain guardrails let you step straight onto machinery, vehicles or storage areas. Heavy-duty castors let you roll it into position quickly, so it suits busy industrial sites.
Specifications
| Platform Height (mm) - Number of Treads | 920mm H (4 Treads) – Platform 750mm W x 1200mm L – Overall 960mm W |
|---|---|
| Platform Length (mm) | 1200 |
| Platform Width (mm) | 750 |
| Width (mm) | 960 |
| Tread Size (mm) | 750mm wide |
| Rung Depth (mm) | 180 |
| Capacity (kg) | 150 |
| Distance Between Rungs (mm) | 210 |
| One Year Warranty | Yes |
| Customisable | Yes |
| Colour Options | White |
Features
- 150kg capacity.
- Extra-large 750mm x 1200mm working platform.
- Removable platform chains give access from three sides.
- Smooth 48° slope for comfortable climbing.
- Fitted with a handlock anchorage safety feature.
- Protective plastic floor pads on the front feet.
Wheels & Movement
- Supplied on wheels so the ladder is easy to move into position.
- Front: 2 swivel castors with 100mm diameter rubber-tyred wheels and roller bearings.
- Rear: 2 axle-mounted 200mm wheels with rubber tyres and roller bearings.
Build Quality
- Steel construction made for intensive industrial use.
- Made in the United Kingdom.
- One-year warranty.
- Custom solutions available.
Sizes
Platform heights run from 920mm (4 treads) to 1840mm (8 treads). The tread count includes the top platform, so 5 treads means 4 treads plus the platform. Treads are 750mm wide and the overall width is 960mm.
Good to Know
Read the mobile platform ladder safety manual before use.
