Mobile Yard Ramp with Handrails 11260mm x 2260mm – 10,000kg Capacity, 800–1650mm Load Height
£37,140.00
Not sure it suits your forklift?
Send us your dock height and forklift weight — we'll confirm the right ramp before you order.
Overview

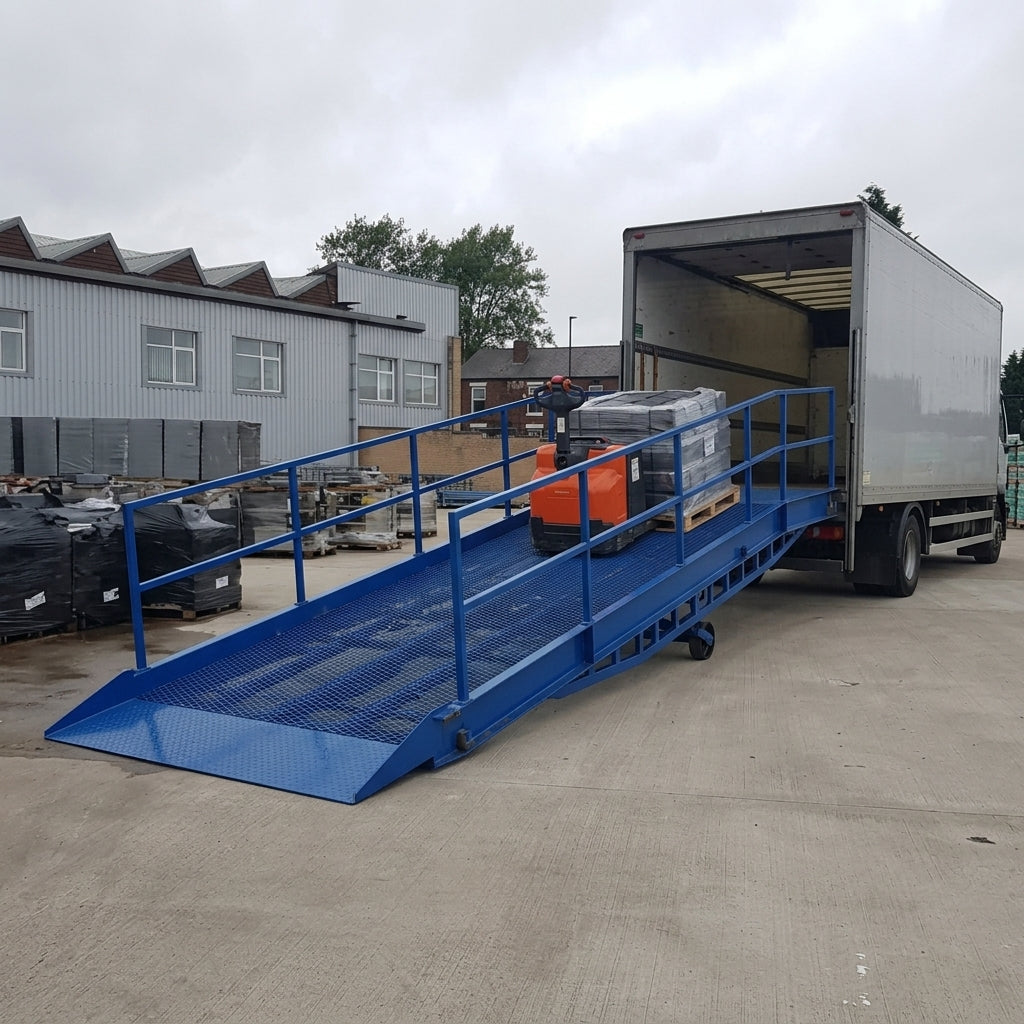

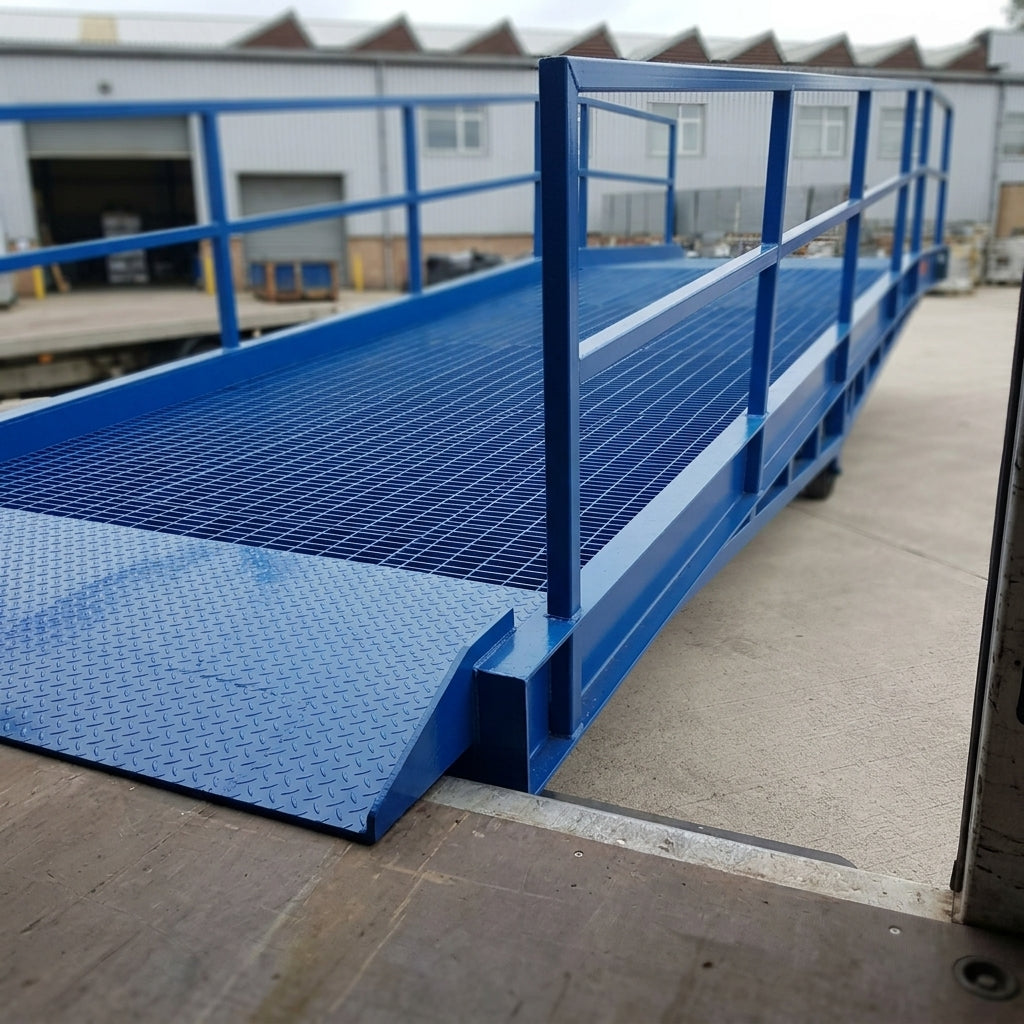

A CE-marked hydraulic mobile yard ramp with handrails, built for loading and unloading containers with a forklift. It gives you a safe loading point where there is no permanent docking bay, and is rated to 10,000kg.
Specifications
| Size | 11260mm L x 2260mm W (2060mm Internal W) |
|---|---|
| Height of Ramp (mm) | 800 |
| Internal Width | 2060 |
| Length (mm) | 11260 |
| Outer Ramp Width (mm) | 2260 |
| Total Height of Ramp (mm) | 1650 |
| Capacity (kg) | 10000 |
| Max Load Height (mm) | 1650 |
| Min. Load Height (mm) | 800 |
| Weight (kg) | 3800 |
| Colour Options | Black |
Features
- 10,000kg capacity for forklift loading and unloading.
- Handrails along the ramp.
- Adjustable load height from 800mm to 1650mm.
- 11260mm long, with a 2260mm outer width and a 2060mm internal width.
- Weighs 3800kg.
- Black finish.
- Built to order.
Load height checker
Measure straight up from the ground to where the ramps will rest on your vehicle or trailer.
