Extra Wide Mobile Yard Ramp with Hydraulic Assist – 11260mm L x 2460mm W, 7000kg Capacity
£35,976.00
Not sure it suits your forklift?
Send us your dock height and forklift weight — we'll confirm the right ramp before you order.
Overview

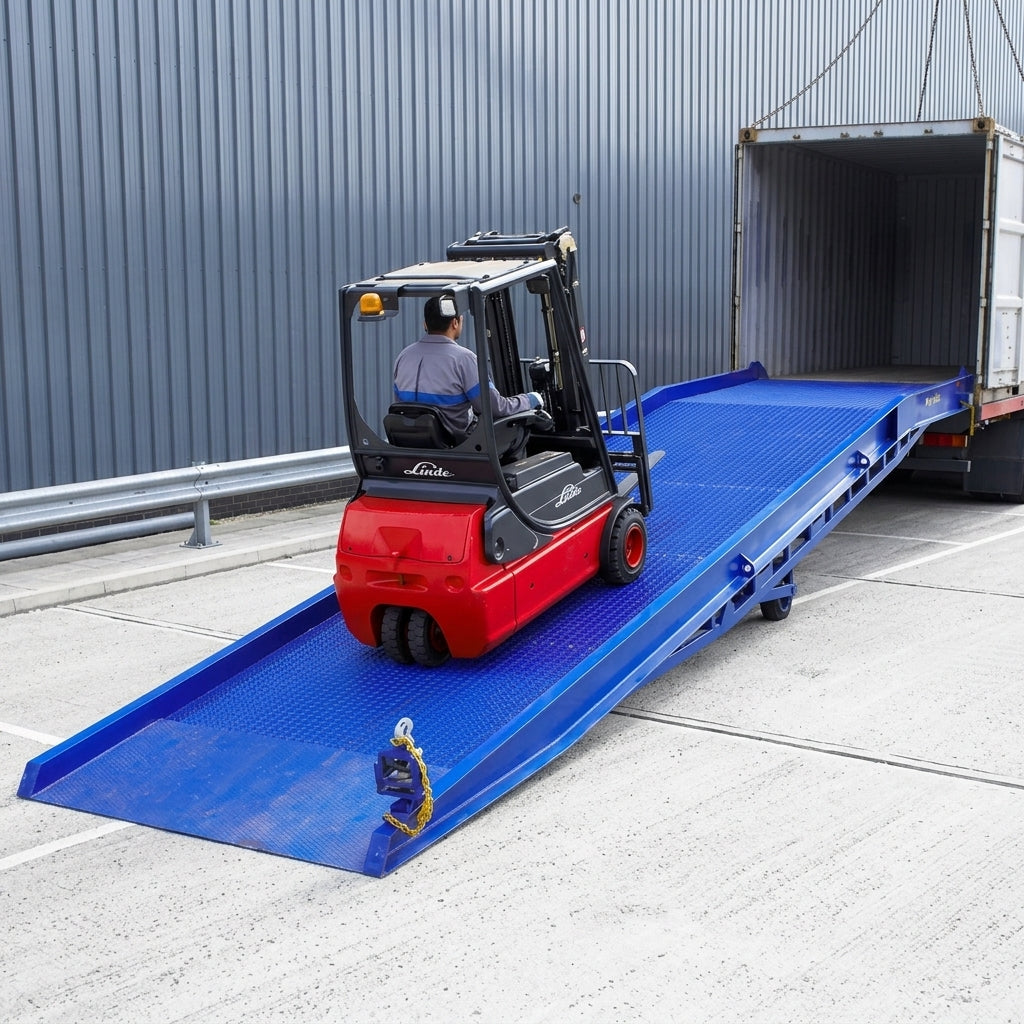

A CE-marked mobile yard ramp for quick, easy and safe loading and unloading of shipping containers, rated to 7000kg. It suits cars, forklifts, plant machinery and farm machinery, and is ideal for warehouses, logistics centres and manufacturing sites. The ramp is 11260mm long and 2460mm wide overall with a 2260mm usable width, an extra-wide design that makes wider machinery easier to load. It meets the latest European standards and directives.
Specifications
| Size | 11260mm L x 2460mm W (2260mm Usable W) |
|---|---|
| Height of Ramp (mm) | 800 |
| Internal Width (mm) | 2260 |
| Length (mm) | 11260 |
| Outer Ramp Width (mm) | 2460 |
| Usable Width (mm) | 2260 |
| Capacity (kg) | 7000 |
| Max Load Height (mm) | 1650 |
| Weight (kg) | 3600 |
| One Year Warranty | Yes |
| Customisable | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
| Leave Outside | Yes |
| Colour Options | Black |
Features
- Fixed swivel clamp and wheels let a forklift move the ramp easily to where it is needed.
- Hydraulic assist adjusts the load height quickly and easily, from 800mm to 1650mm, to match the container.

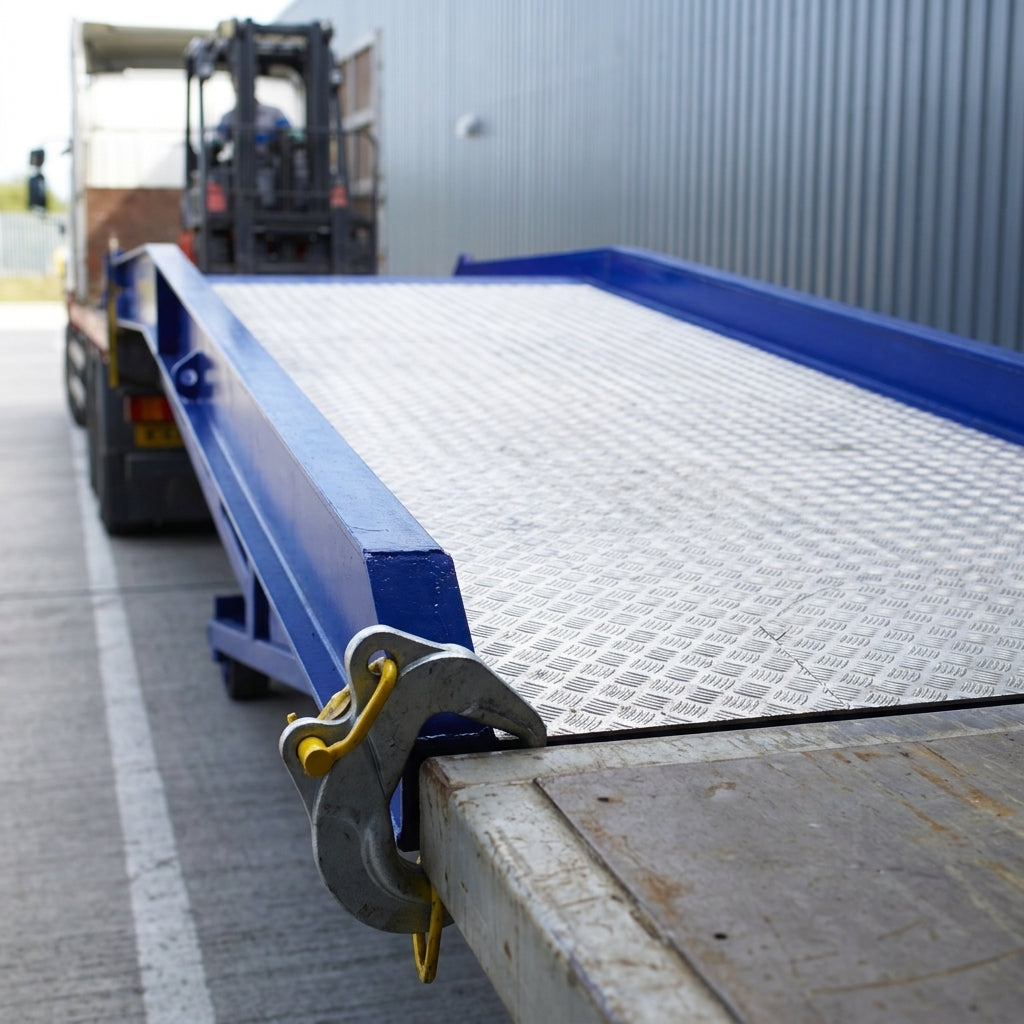

- Steel safety chains and clamps secure the ramp to the container during loading to stop it moving.
- Side profiles made from a single piece of steel (UK produced) for top performance, durability and safety, on a reinforced steel undercarriage.
- High-traction, UK-produced anti-slip mesh surface.
- Integrated safety edges stop vehicles veering off the side, and the mesh deck keeps grip in all weathers.
- An extended 300mm rest-on connection helps the ramp stay securely in place.
- A smooth, gradual slope suits forklifts, pallet trucks and other low-clearance vehicles and stops them grounding out. Inclined section 8440mm long; level section 2520mm long.
- Fully certified and tested. Customisable, and can be fitted with handrails. Easy to fit, European made and can be left outside.
- Finished in black. One-year warranty.
Supplied With
- Swivel fork mount / fixed swivel clamp
- Steel safety chains and clamps
- Hydraulic assist
- Wheel chocks
Sizes & Capacity
- Length: 11260mm
- Outer width: 2460mm
- Usable (internal) width: 2260mm
- Ramp height: 800mm; maximum load height: 1650mm
- Weight: 3600kg
- Capacity: 7000kg
Good to Know
- Handrails are available on request.
- The gradient is approximately 10%, which suits most forklifts; it varies with the height of the lorry.
- On-site training on using the ramp is available at an additional cost.
- Inspect the ramp regularly. An annual service is recommended to keep it safe and to comply with PUWER regulations.
- Pictures are for illustration only; the actual product may vary due to product improvements.
Load height checker
Measure straight up from the ground to where the ramps will rest on your vehicle or trailer.
