Pedestrian Ramp with Folding Handrails – 3790mm L x 1000mm Internal W, 400kg/m²
Not sure which length you need?
Send us the step height and who will use it — we'll confirm the right ramp before you order.
Overview

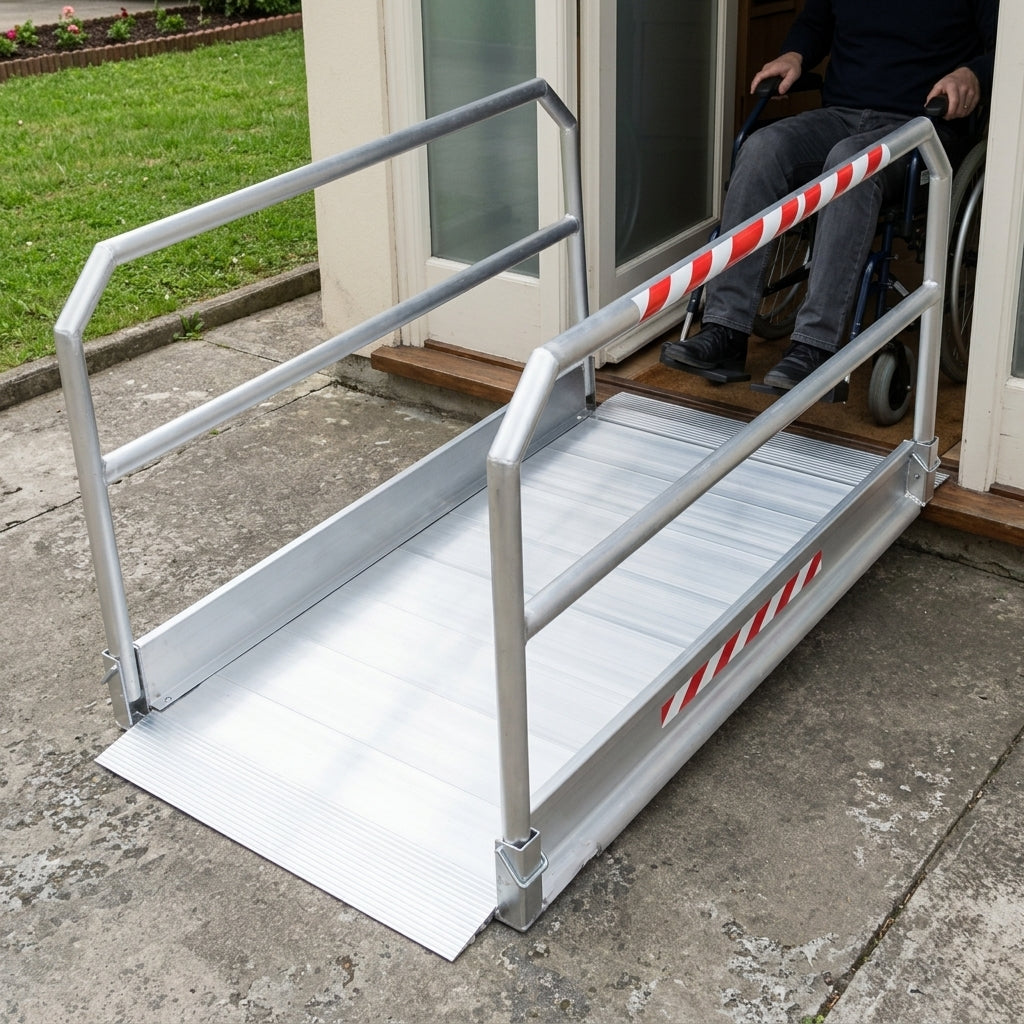

An aluminium pedestrian ramp with handrails, 3790mm long with a 1000mm usable (internal) width and a maximum capacity of 400kg per square metre. It is made to overcome height differences in all kinds of settings, from private homes to public spaces, and simply rests in place ready to use.
Specifications
| Size | 3790mm L x 1000mm Internal W (1120mm External W) x 1055mm H |
|---|---|
| Height (mm) | 1055 |
| Internal Width (mm) | 1000 |
| Length (mm) | 3790 |
| External Width (mm) | 1120 |
| Default Connection | Rest On Connection |
| Capacity (kg) | 400 |
| Max Load Height (mm) | 300 |
| Weight (kg) | 92 |
| Two Year Warranty | Yes |
| Easy to Fit | Yes |
| Leave Outside | Yes |
| Colour Options | Black |
Features
- Rest-on connection - just position the ramp and start using it.
- The foot end suits a range of heights up to 300mm.
- Helps pedestrians and wheelchair users overcome architectural barriers such as steps, thresholds and kerbs, in private or public settings.
- Non-slip walking surface with R12 slip resistance.
- Ergonomic handrails 1018mm high that fold down for storage and transport.
How It Stays in Place

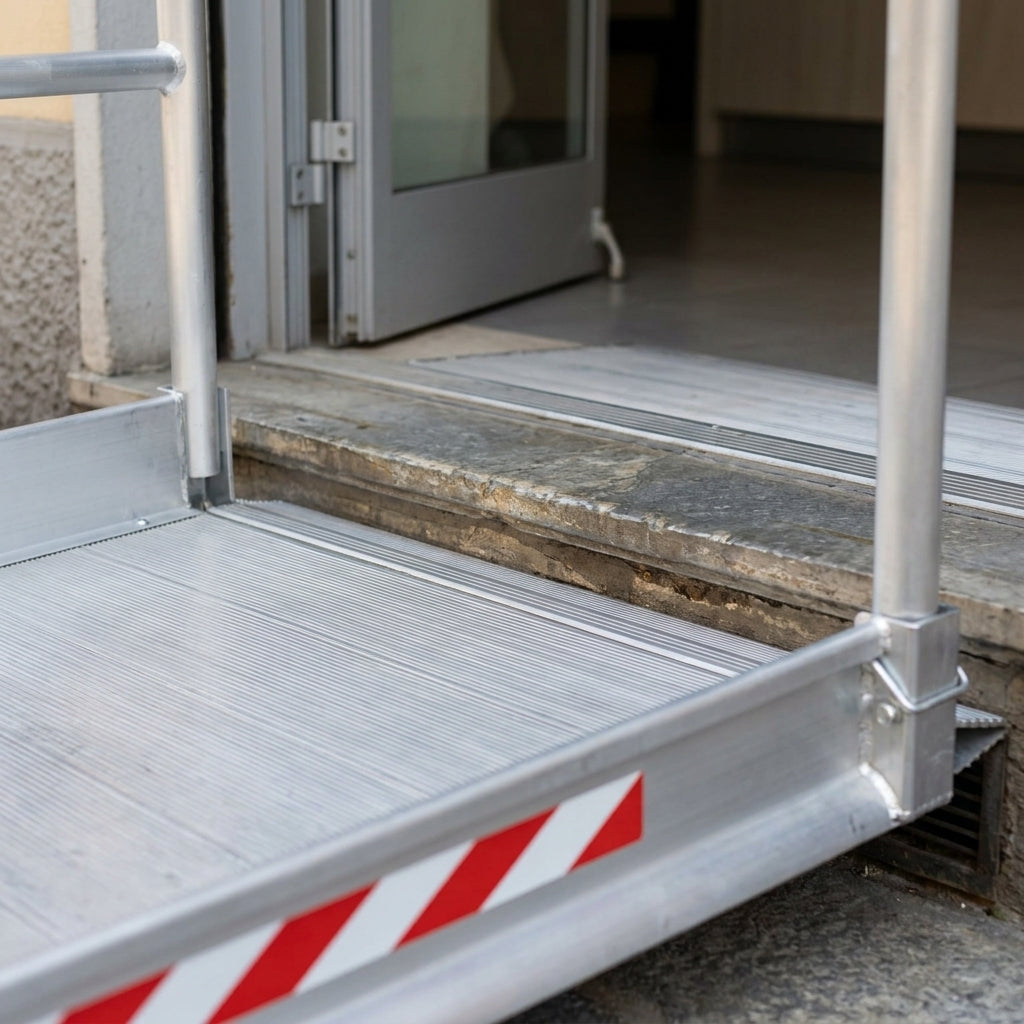

- The curved rest-on connection has a pre-drilled hole so it can be secured to the step or kerb.
- The angled foot sits securely on the ground, and the ramp's weight and gradient help keep it firmly in place.
Size & Build
- Length 3790mm, internal width 1000mm, external width 1120mm, overall height 1055mm.
- Weight 92kg. Finished in black.
- Built to order. Can be left outside. Easy to fit, with a two-year warranty.
Good to Know
- Used at a smooth gradient, the R12 slip-resistant surface makes the ramp suitable for mobility aids including wheelchairs and walkers.
- For safety, do not exceed a maximum gradient of 8%.
Ramp length checker
Measure from the ground to the top of the step or threshold.
Qualifies for VAT relief
VAT relief added — VAT comes off in your basketVAT relief
This product is designed for disabled people, so it can be bought without VAT when it is for the personal or domestic use of someone who is chronically sick or disabled, or when an eligible charity buys it for a disabled person's use.
Who can claim
- A person with a physical or mental impairment that has a long-term effect on their ability to carry out everyday activities.
- A person with a condition doctors treat as a chronic illness (for example diabetes), or who is terminally ill.
- A family member, carer or friend buying it on their behalf.
- A charity buying it to make it available to disabled people.
Who can't claim
- Someone with a temporary injury, such as a broken bone.
- An older person who is frail but not disabled or chronically sick.
- A VAT-registered business, or anyone buying for general or shared use (unless it is an eligible charity).
How to claim
- Choose Claim VAT relief (here or in your basket).
- Enter the name of the person or charity, and the condition or the charity's registration number.
- Tick the declaration. The 20% VAT is then taken off every qualifying item in your basket before checkout.
Your declaration is kept with your order, as HMRC requires. Making a false declaration is an offence. If you're unsure whether you qualify, see HMRC Notice 701/7 or ask your doctor — we can't give medical advice.
