Hydraulic Mobile Container Yard Ramp 11260mm x 2260mm – 10,000kg, With or Without Handrails
£37,140.00
Not sure it suits your forklift?
Send us your dock height and forklift weight — we'll confirm the right ramp before you order.
Overview

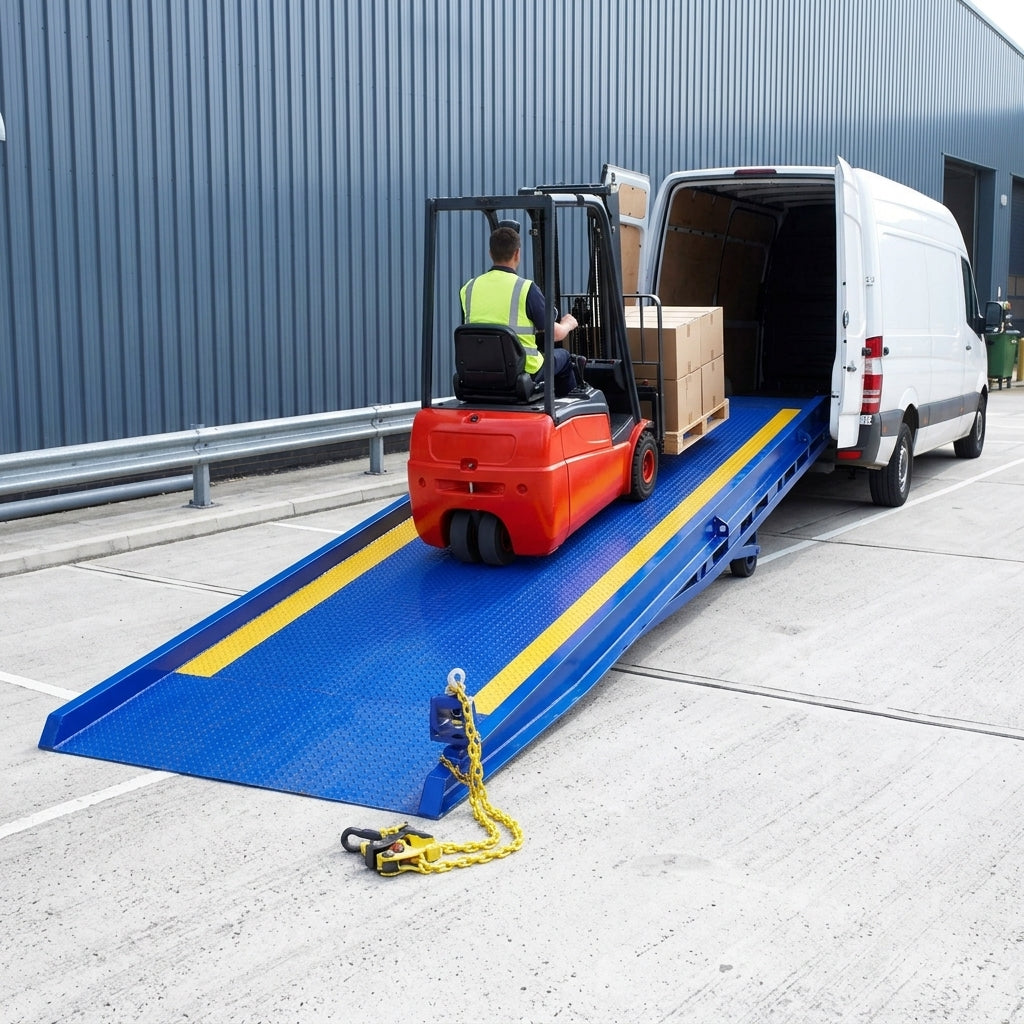

A CE-marked hydraulic mobile yard ramp that makes loading and unloading shipping containers quick, easy and safe, without needing a permanent loading dock. Rated to 10,000kg, it can load cars, forklifts and farm machinery, and is a popular choice for warehouses, logistics centres and manufacturing sites. Available with or without handrails.
Specifications
| Handrail Options | Handrails – 11260mm L x 2260mm W (2060mm Usable W) |
|---|---|
| Height (mm) | 800-1650 |
| Internal Width (mm) | 2060 |
| Length (mm) | 11260 |
| Width (mm) | 2260 |
| Capacity (kg) | 10000 |
| Max Load Height (mm) | 1650 |
| Min. Load Height (mm) | 800 |
| Weight (kg) | 3800 |
| One Year Warranty | Yes |
| Easy to Fit | Yes |
| European Made | Yes |
| Leave Outside | Yes |
| Colour Options | Black |
Features
- Easy to move: supplied on wheels with a fixed swivel clamp and fork mount, so a forklift can manoeuvre it into position.
- Hydraulic assist lets you quickly adjust the ramp to the container height, anywhere from 800mm to 1650mm.

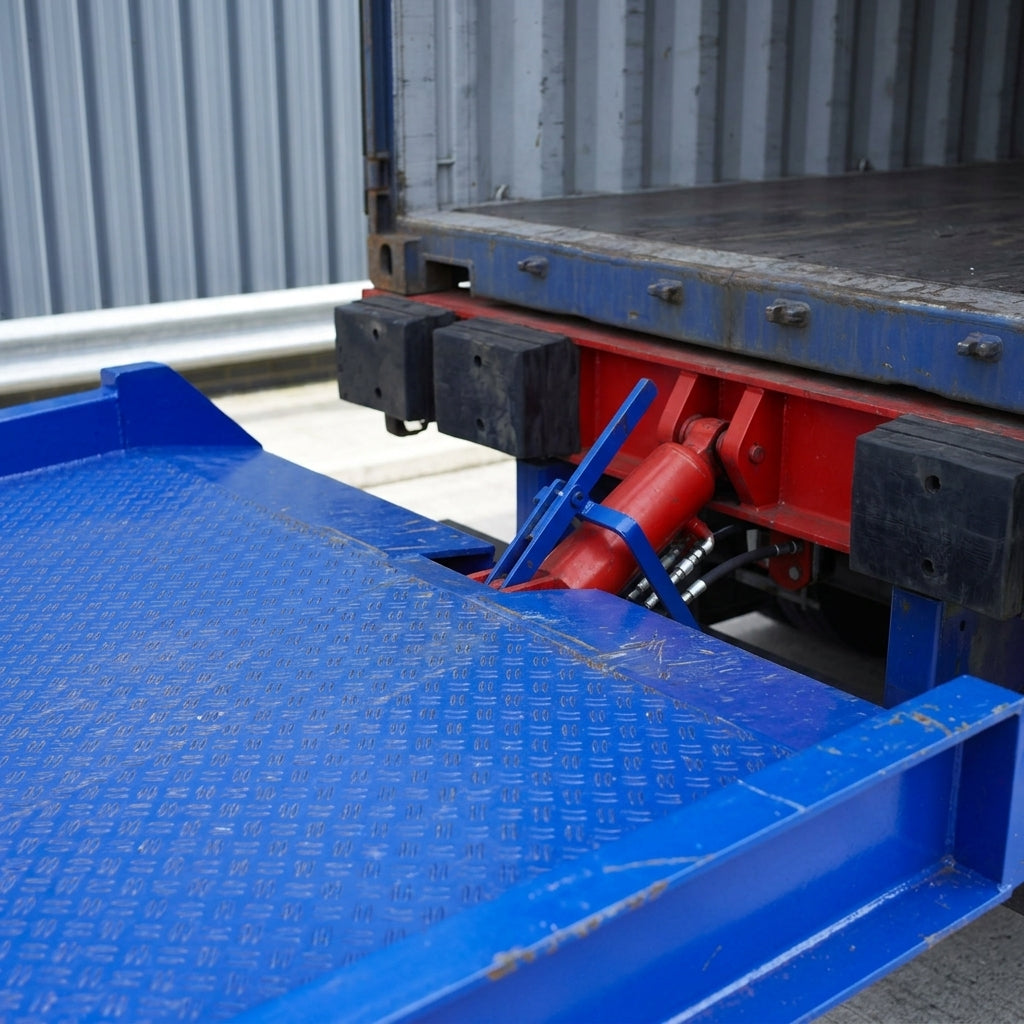

- Heavy-duty steel safety chains and clamps secure the ramp to the container during loading, and the extended 2060mm x 300mm rest-on lip keeps it firmly in place.
- Smooth, gradual slope of roughly 10% (it varies with the height of the lorry), designed for forklifts and pallet trucks with low ground clearance so they do not ground out. This suits most forklifts.
- High-traction, UK-produced anti-slip mesh surface keeps grip in all weather, and integrated safety edges stop vehicles veering off the side.
Build Quality
- Side profiles made from a single piece of steel for top performance, durability and safety, on a reinforced steel undercarriage.
- Fully certified and tested, CE marked and meets the latest European standards and directives. European made.
- Can be left outside. Easy to fit. Black finish.
- One-year warranty.
Sizes
- Total length 11260mm: 8440mm inclined section plus a 2520mm level section.
- Total width 2260mm, with a 2060mm usable width that covers the full width of a standard container.
- Weighs 3800kg.
Good to Know
- Wheel chocks are available at extra cost for added security while the ramp is parked and not in use.
- Inspect the ramp regularly. An annual service is recommended to keep it safe and to comply with PUWER regulations.
- On-site training on using the ramp is available at extra cost.
- Pictures are for illustration only; the actual product may vary due to product improvements.
Load height checker
Measure straight up from the ground to where the ramps will rest on your vehicle or trailer.
