Standard Recycled HDPE Interlocking Ground Grid – 1000mm L x 1000mm W x 40mm H, up to 350t per m² (Pack of 20)
£1,200.00
Not sure it's the right one?
Tell us where and how it will be used — we'll confirm the right product before you order.
Overview

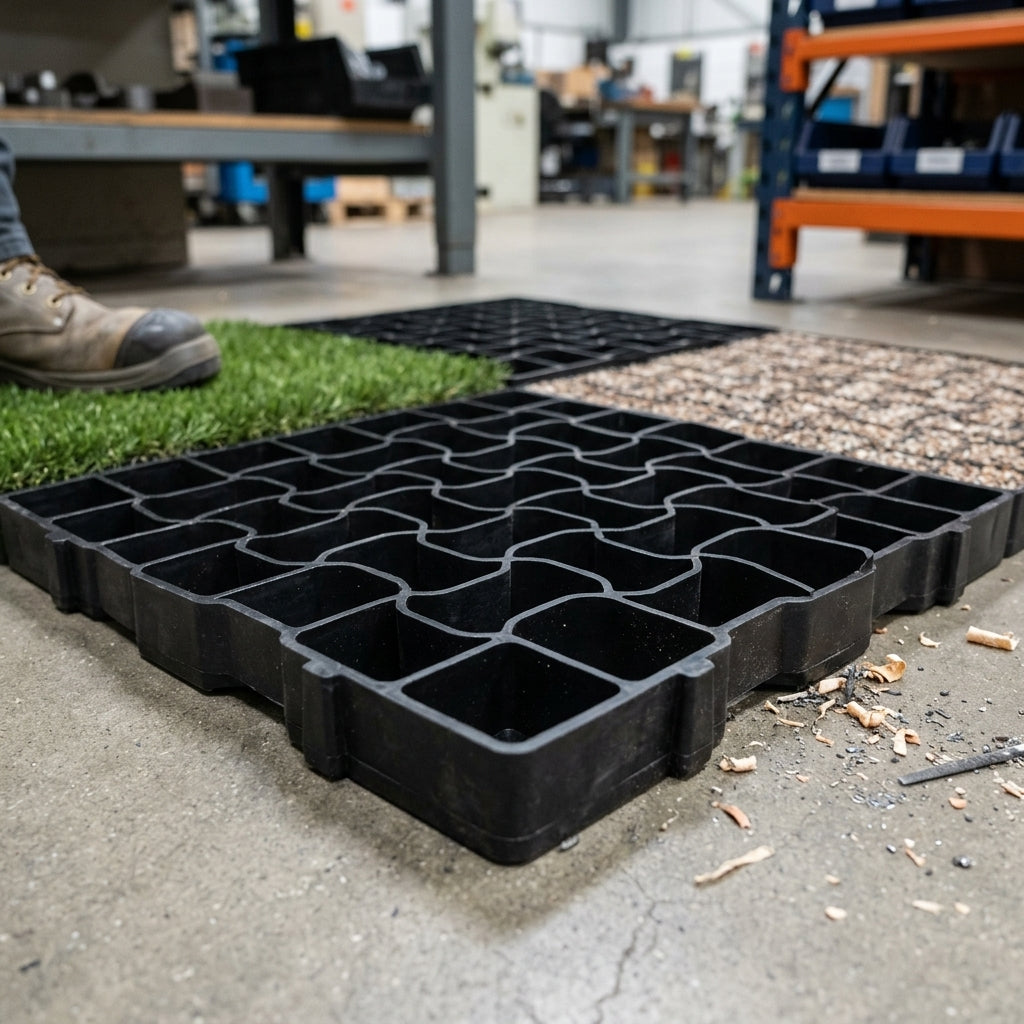

A standard interlocking ground reinforcement grid measuring 100cm x 100cm x 4cm and weighing 4.4kg per m². It supports loads of up to 350 tonnes per m², depending on the fill material and soil conditions, and is designed to help reduce erosion and flooding in sensitive areas.
Specifications
| Size | Pack of 20 – 1000mm L x 1000mm W x 40mm H |
|---|---|
| Height (mm) | 40 |
| Length (mm) | 1000 |
| Width (mm) | 1000 |
| Capacity (kg) | 350,000kg per m (depending on filling material and soil conditions) |
| Weight (kg) | 4.4 |
| One Year Warranty | Yes |
| Easy to Fit | Yes |
| Colour Options | Black |
Features
- Made from 100% recycled high density polyethylene.
- Unique patented design that avoids surface deformation in high temperatures.
- Designed and manufactured in the UK.
- Simple interlocking design for fast, easy installation.
- REACH compliant.
- Durable and lightweight.
- One-year warranty.
Applications
- Pathways and driveways
- New and overflow car parks, event parking, access routes and entrances
- Ground reinforcement and stabilisation, including slopes, embankments and storage areas
- Integration into Sustainable Urban Drainage Systems (SUDS) and infiltration basins
- Pedestrian access ways
- Access to roads and roadways; road extensions and widening
- Equestrian and outdoor events
- Depot storage areas and gateway areas
- Golf buggy routes
- Helicopter landing pads
Filling & Choosing

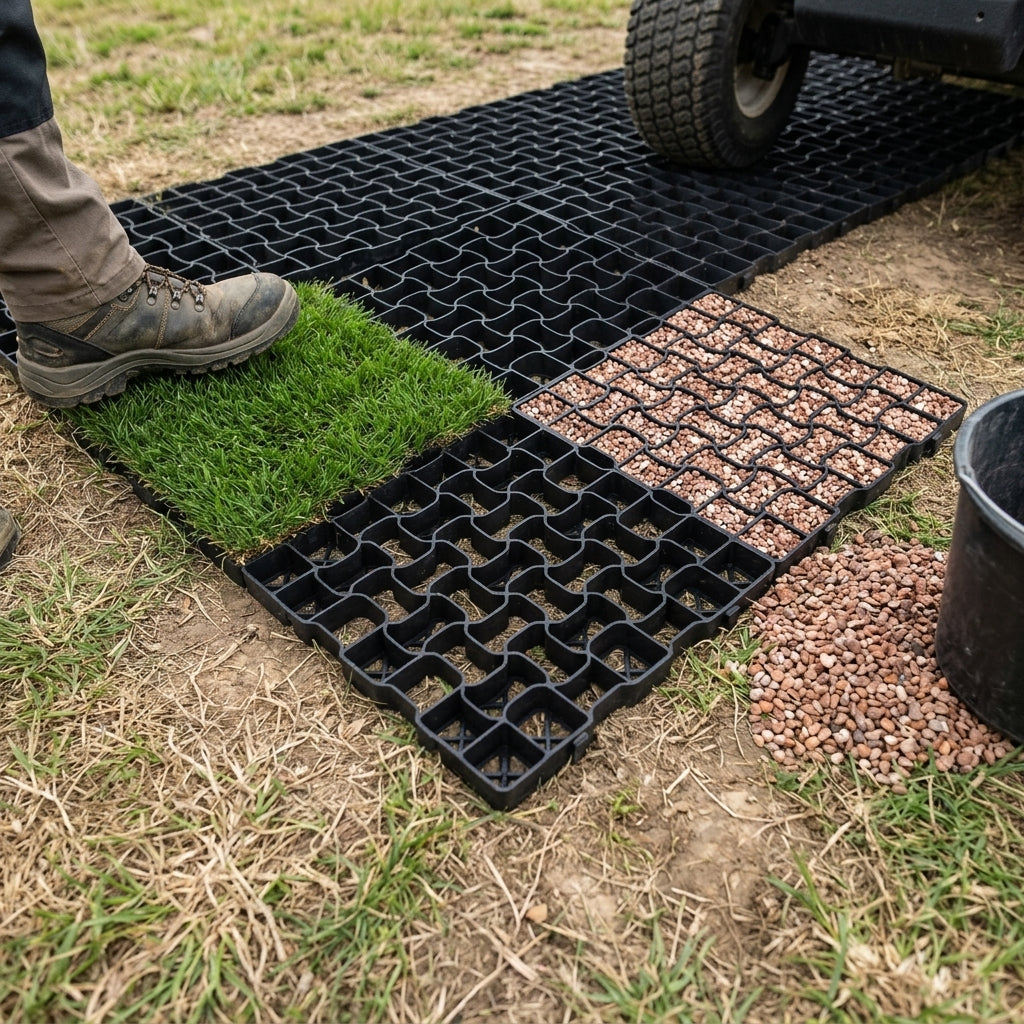

- Where vehicles will drive over the grid, or in busy pedestrian areas, fill it with aggregate or decorative stones. It can also be seeded with grass.
- This standard grid supports up to 350 tonnes per m²; our premium grid supports up to 500 tonnes per m².
- Sold in packs of 20 – the price shown is for a pack of 20 units.
